Outside Rear View Mirror: Removal

1. Using a screwdriver, open the screw cap.

   HINT:

   Tape the screwdriver tip before use.

2. Remove the screw.
3. Using a screwdriver, remove the inside handle bezel as shown in the illustration.

   HINT:

   Tape the screwdriver tip before use.

   Fig 1: Removing Inside Handle Bezel

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

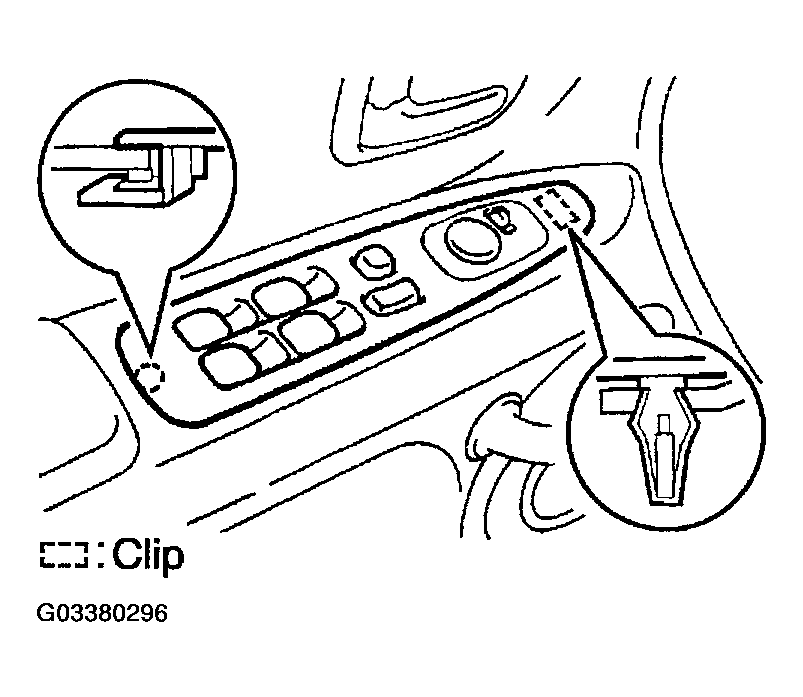

1. Using a screwdriver, remove the power window switch.

   HINT:

   Tape the screwdriver tip before use.

2. Disconnect the connectors.
   Fig 2: Removing Power Window Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the screw.
2. Using a screwdriver, remove the front armrest as shown in the illustration.

   HINT:

   Tape the screwdriver tip before use.

   Fig 3: Removing Front Armrest

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

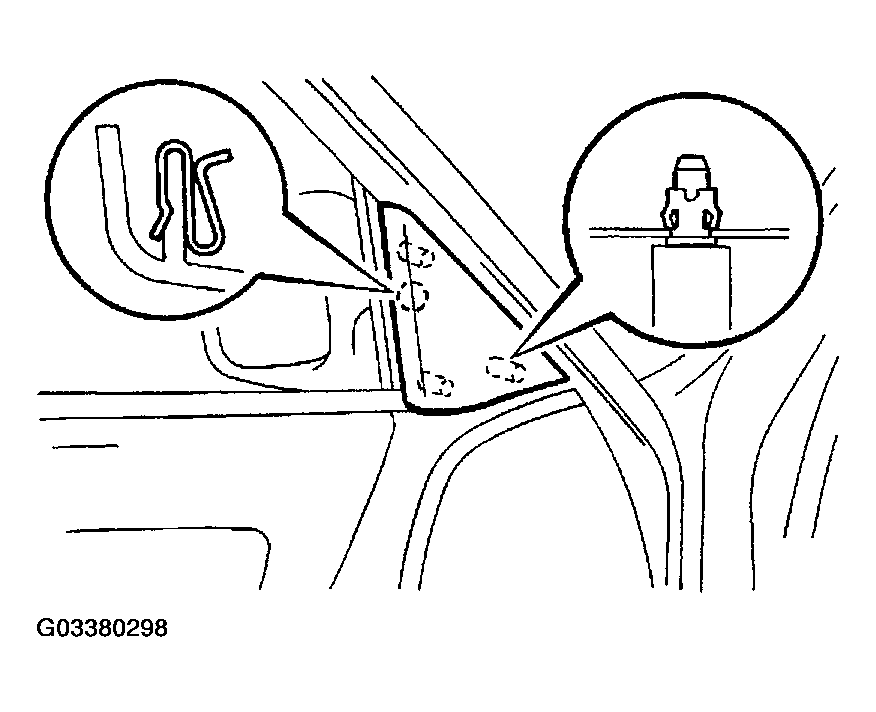

Remove the lower frame bracket garnish.

Fig 4: Removing Lower Frame Bracket Garnish

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, remove the courtesy light, then disconnect the connector.

   HINT:

   Tape the screwdriver tip before use.

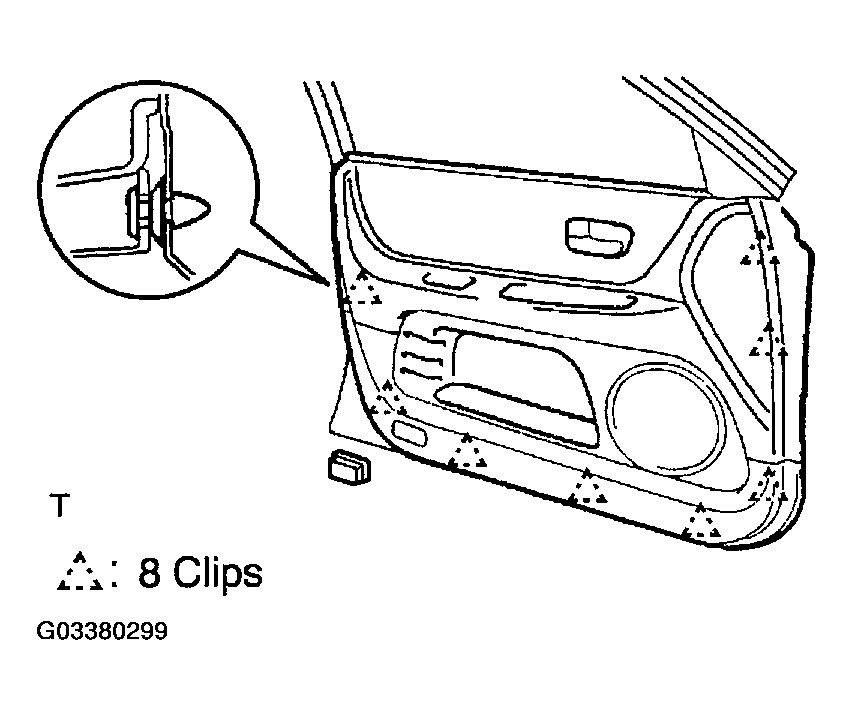

2. Using a screwdriver, disengage the clips, then pull the trim upward to remove it.

   HINT:

   Tape the screwdriver tip before use.

   Fig 5: Removing Door Trim

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connector.
2. Remove the 2 bolts and front No.2 speaker.

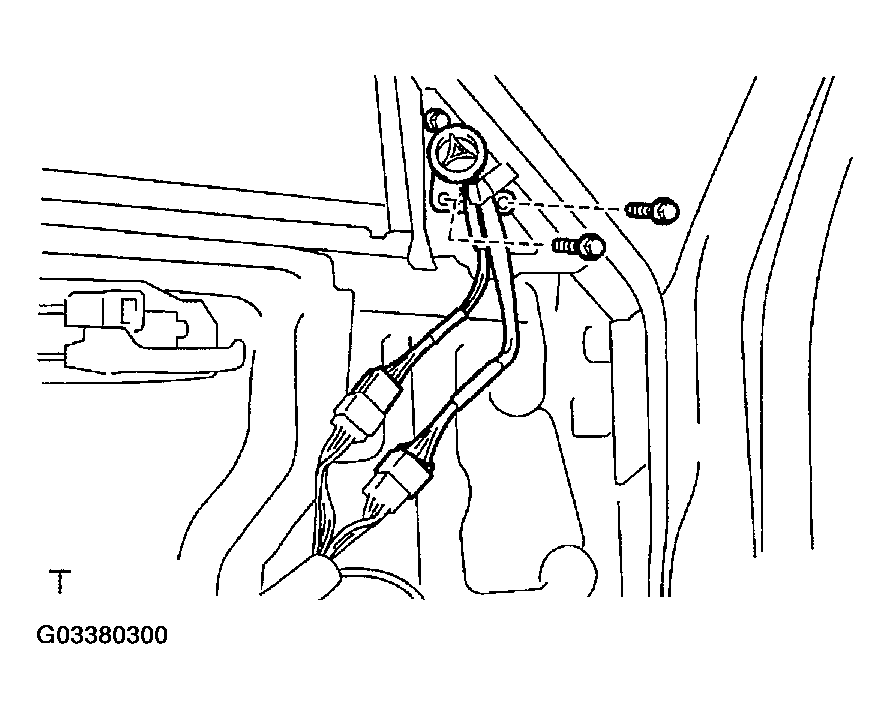

1. Disconnect the connector.
2. Remove the bolt and outside rear view mirror.
   Fig 6: Removing Front No.2 Speaker

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
