Circuit Description

WARNING: This page is about a different car, the 2002 Lexus GS 430 and 2002 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

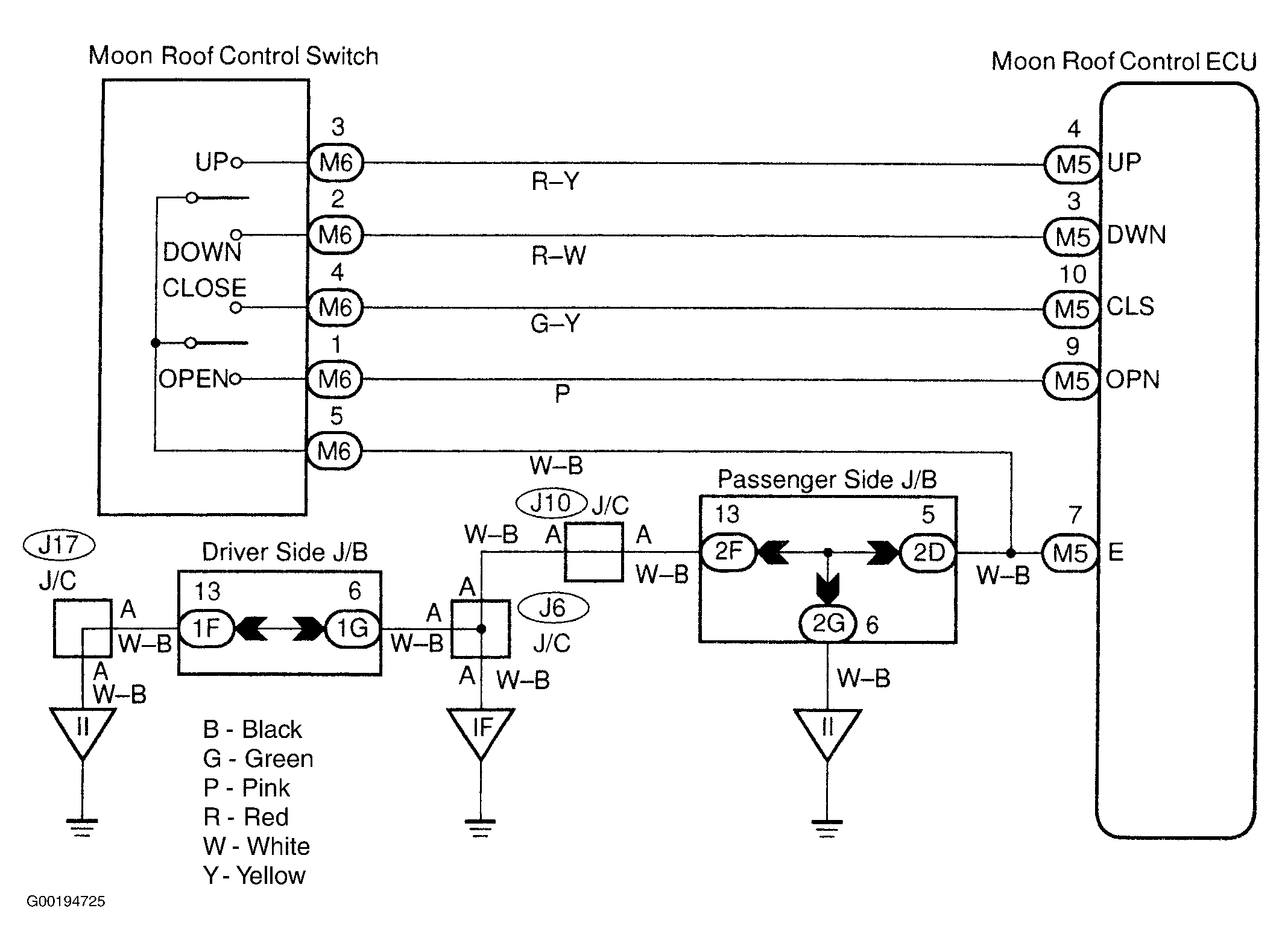

For moon roof control switch circuit diagram, see Fig 1.

Fig 1: Identifying Moon Roof Control Switch Circuit
G00194725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
