Cylinder Head, Intake Manifold, Exhaust Manifold: Components

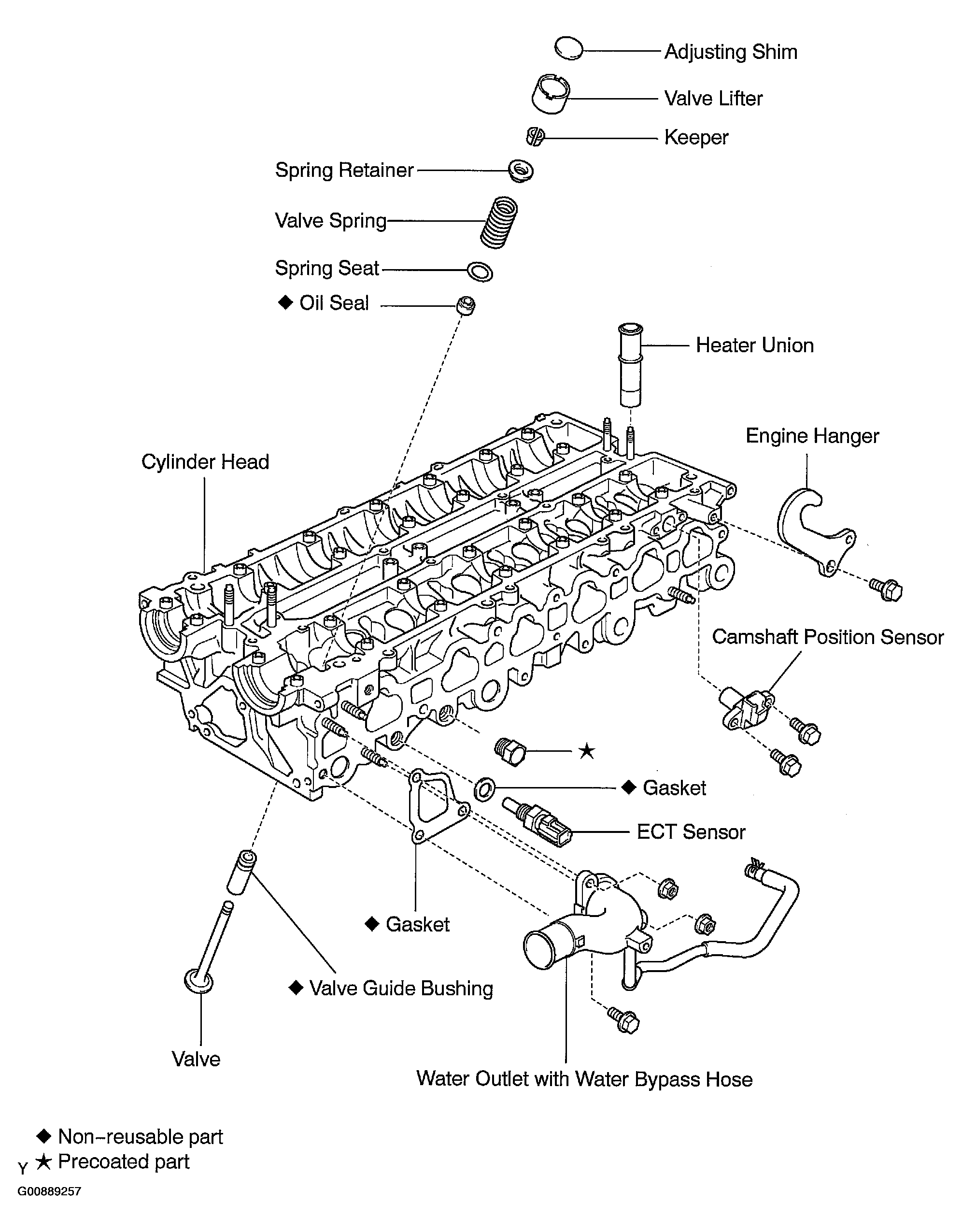

Fig 1: Identifying Cylinder Head Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

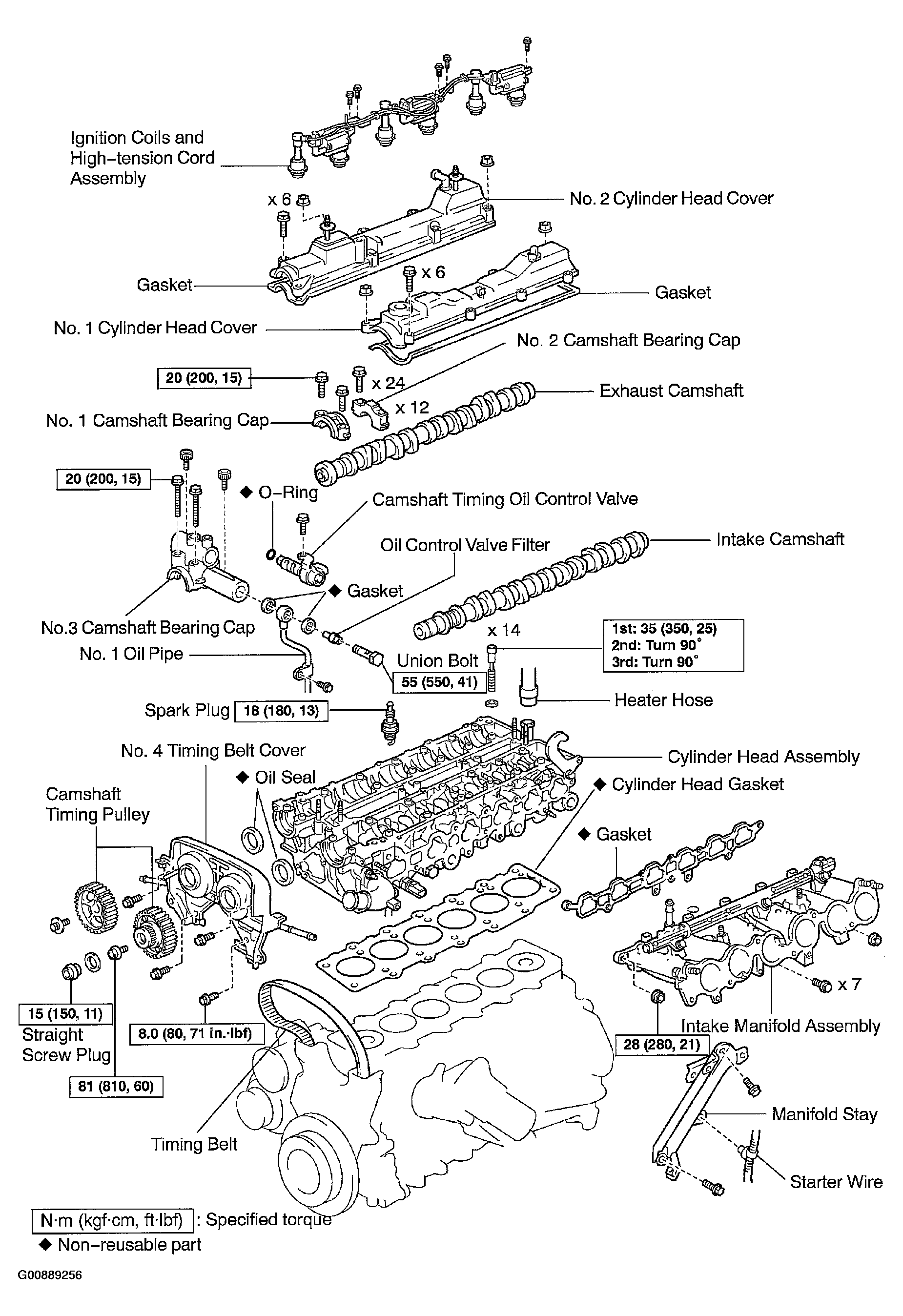

Fig 2: Identifying Cylinder Head Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

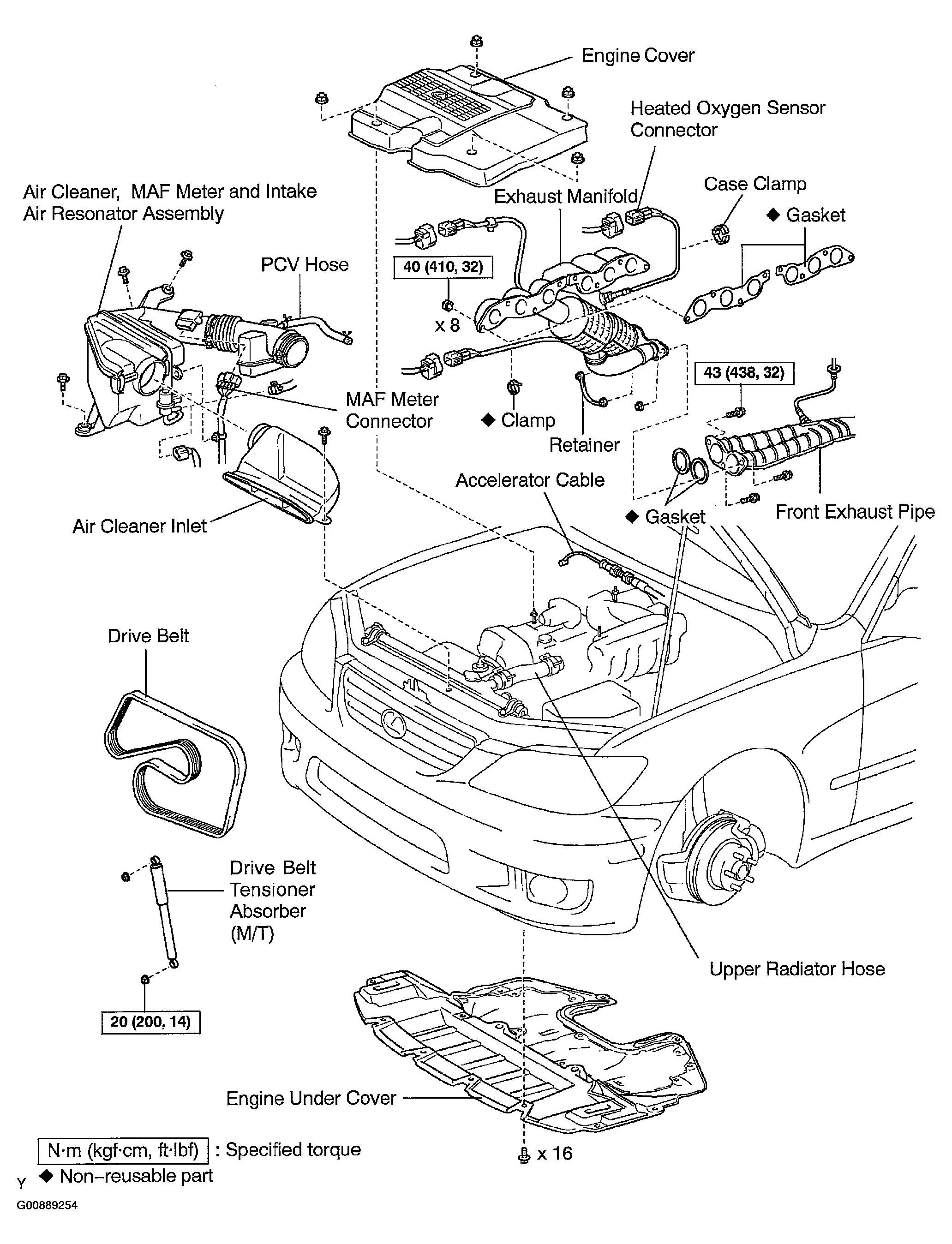

Fig 3: Identifying Cylinder Head Components (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Cylinder Head Components (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
