Exterior/Interior Trim: Hood: Adjustment

HINT:

Since the centering bolt is used as a hood hinge and hood lock set bolt, the hood and hood lock cannot be adjusted. Substitute the bolt with a washer for the centering bolt.

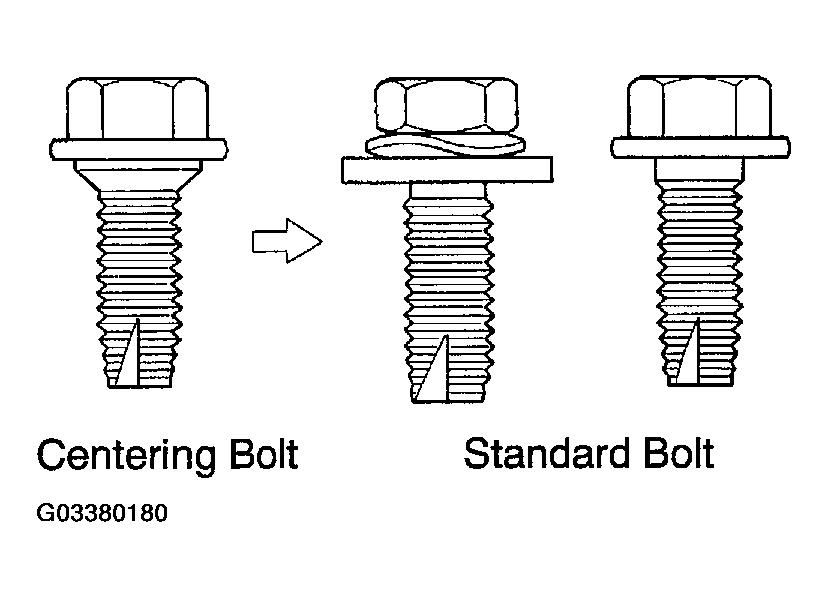

Fig 1: Identifying Centering Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. ADJUST HOOD IN FORWARD/REARWARD

   Adjust the hood by loosening the hood side hinge bolts.

   Torque: 13 N.m (133 kgf.cm, 10 ft.lbf)

2. ADJUST HOOD IN VERTICAL DIRECTIONS
   1. Remove the bolts and increase or decrease the number of washers between the hinge and the hood.
   2. Install the bolts again.

      Torque: 13 N.m (133 kgf.cm, 10 ft.lbf)

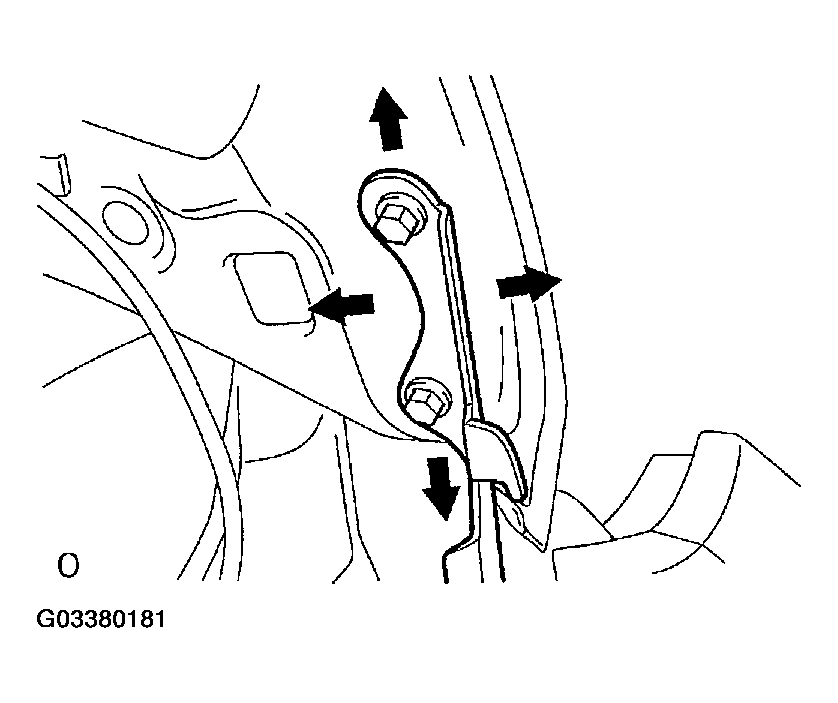

Fig 2: Adjusting Hood By Loosening Hood Side Hinge Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. ADJUST FRONT EDGE OF HOOD IN VERTICAL DIRECTION

   Adjust the hood by turning the cushions.

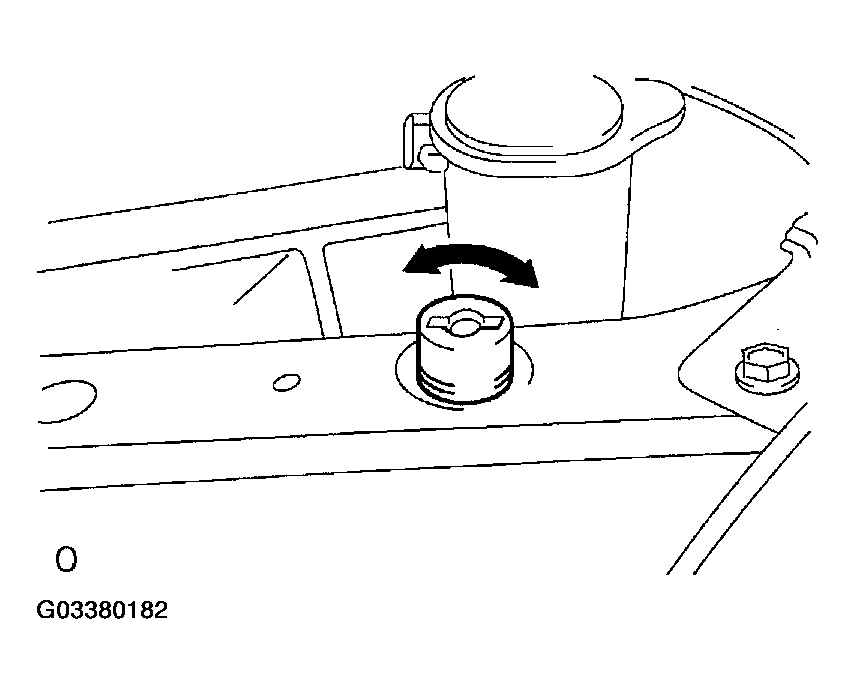

Fig 3: Adjusting Hood By Turning Cushions
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. ADJUST HOOD LOCK
   1. Remove the screw, 2 clips and radiator grille.
   2. Using a screwdriver, remove the hood lock bolt cap.

      HINT:

      Tape the screwdriver tip before use.

   3. Adjust the hood lock by loosening the bolts.

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

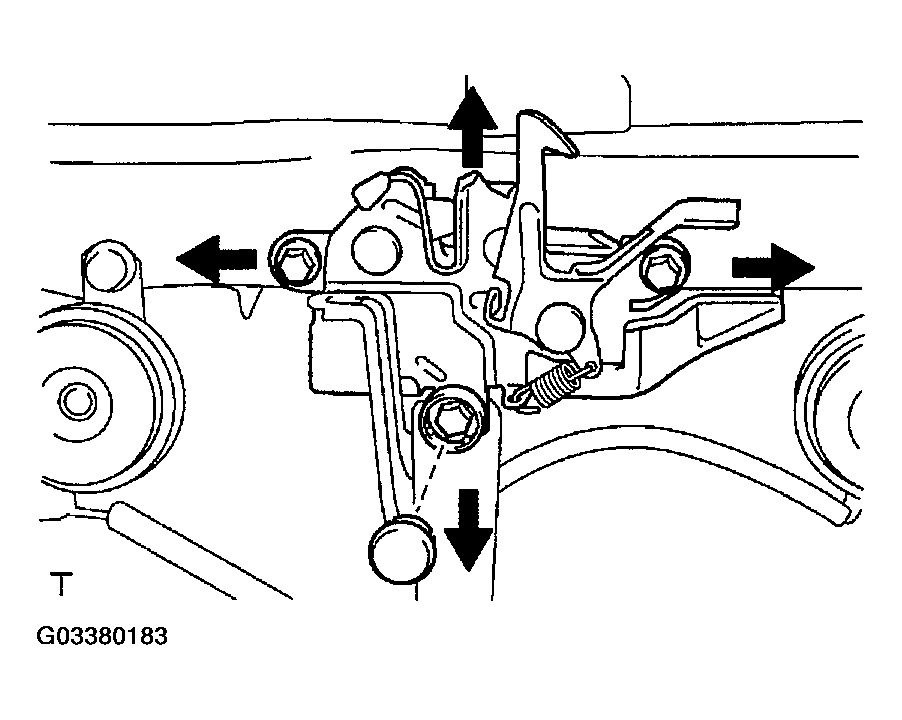

Fig 4: Adjusting Hood Lock By Loosening Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
