Home >> Lexus >> 2003 >> IS 300 Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Back Door >> Components

Back Door: Components

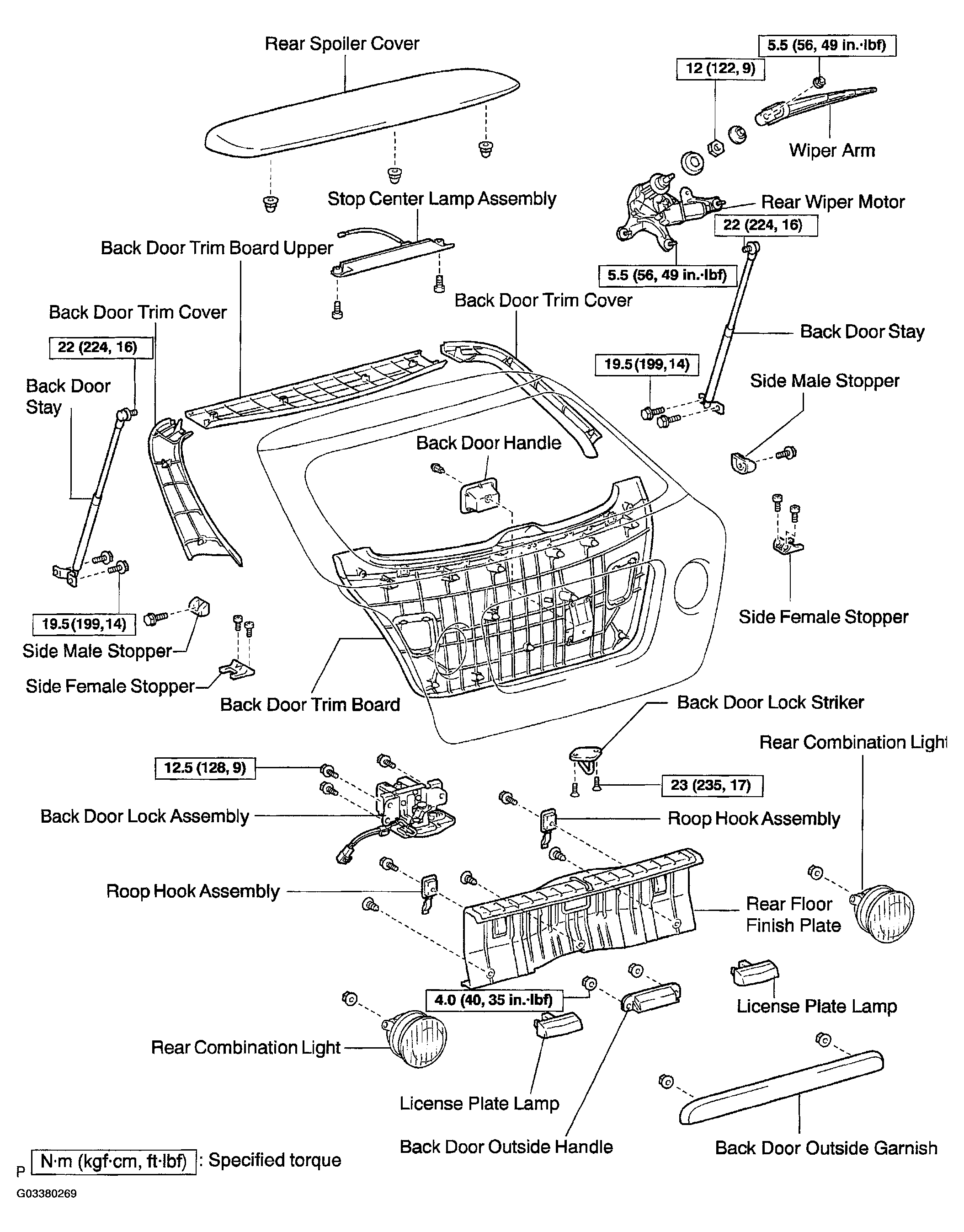

Fig 1: Exploded View Of Back Door Components

G03380269

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
