Back Door: Adjustment

ADJUST DOOR IN LEFT/RIGHT AND VERTICAL DIRECTIONS
Adjust the door by loosening the door side hinge bolts.

Torque: 15 N.m (153 kgf.cm, 11 ft.lbf)
ADJUST DOOR IN FORWARD/REARWARD AND VERTICAL DIRECTIONS

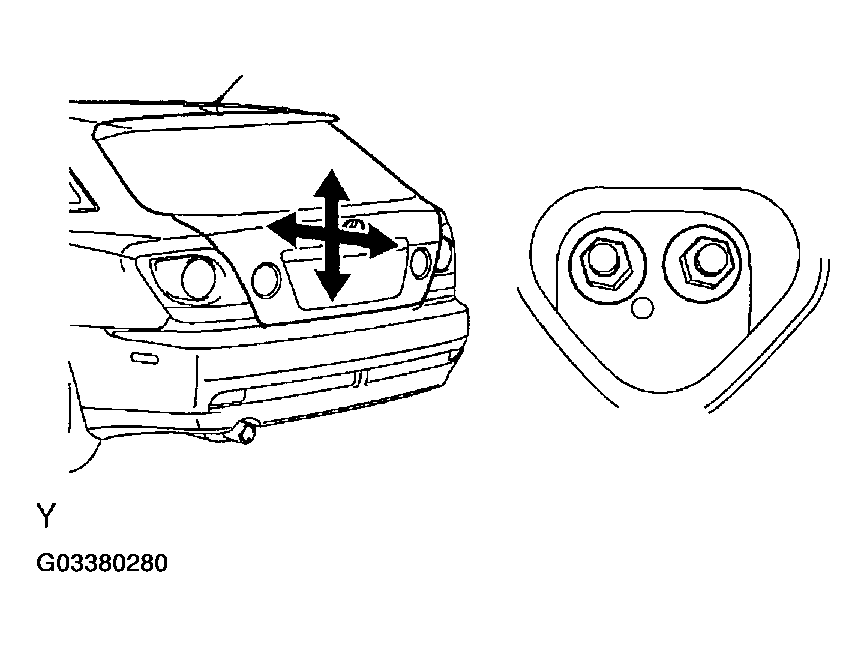

Fig 1: Adjusting Door In Left/Right And Vertical Directions
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Pull down rear part of roof headlining. (See )
2. Adjust the door by loosening the body side hinge nuts.
  Torque: 11.5 N.m (117 kgf.cm, 8 ft.lbf)

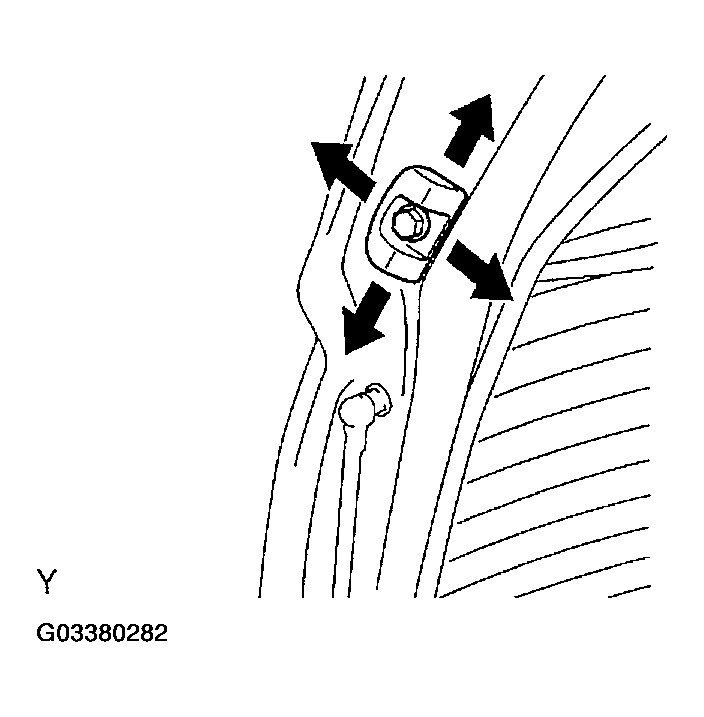

  Fig 2: Adjusting Door In Forward/Rearward And Vertical Directions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST BACK DOOR LOCK ASSEMBLY
1. Check that the door fit and door linkage are adjusted correctly.
2. Adjust the back door lock assembly by loosening the back door lock bolts.
  Torque: 12.5 N.m (128 kgf.cm, 9 ft.lbf)
3. Using a plastic hammer, tap the back door lock assembly to adjust.

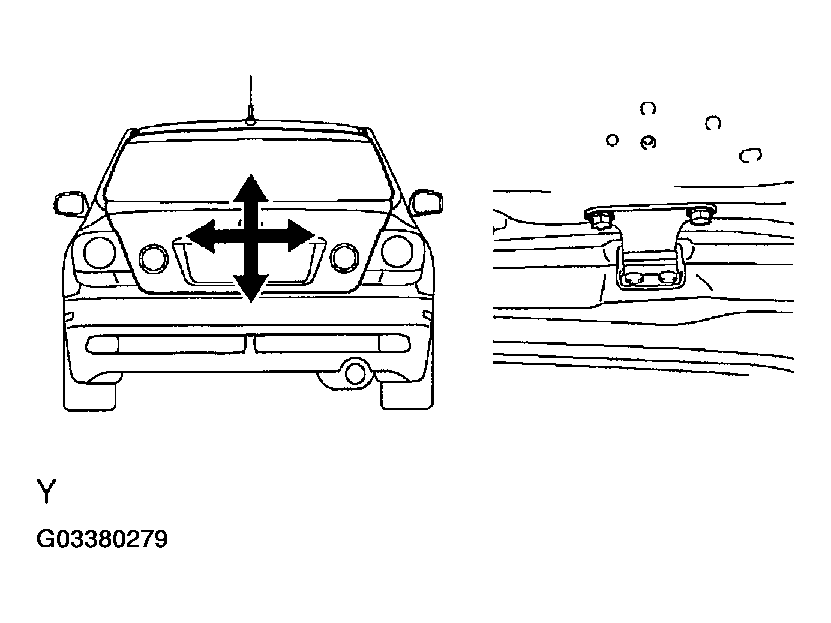

  Fig 3: Adjusting Back Door Lock Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Tap the base for adjustment.
ADJUST SIDE MALE STOPPER
Adjust the side male stopper by loosening the stopper mounting bolt.

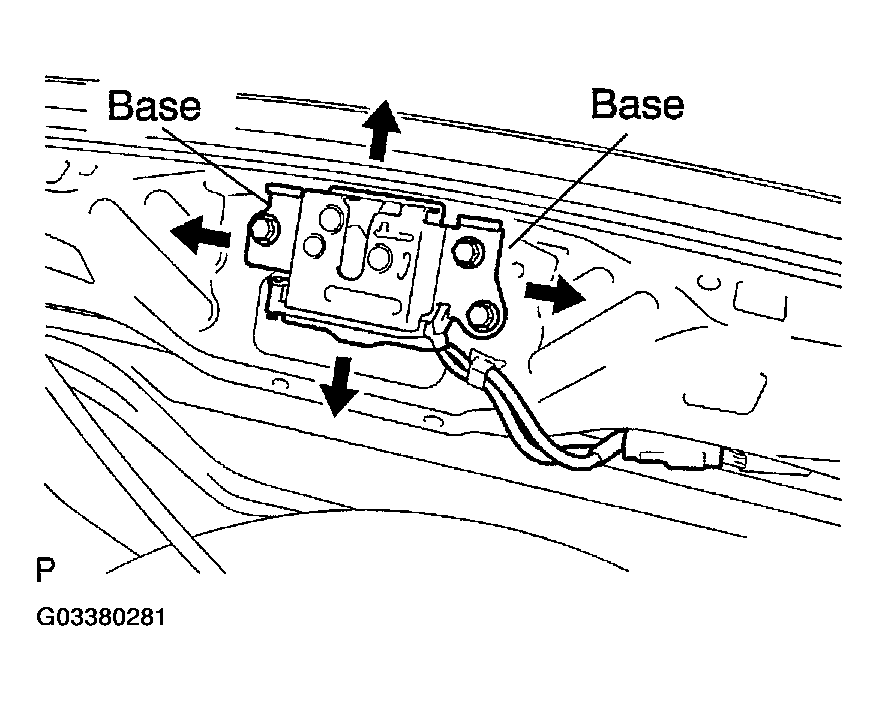

Fig 4: Adjusting Side Male Stopper
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
