Home >> Lexus >> 2003 >> IS 300 Base, Automatic >> Repair and Diagnosis (Single Page) >> Restraints >> Restraints Control Systems >> Seat Belt (Wagon) >> Components

Seat Belt (Wagon): Components

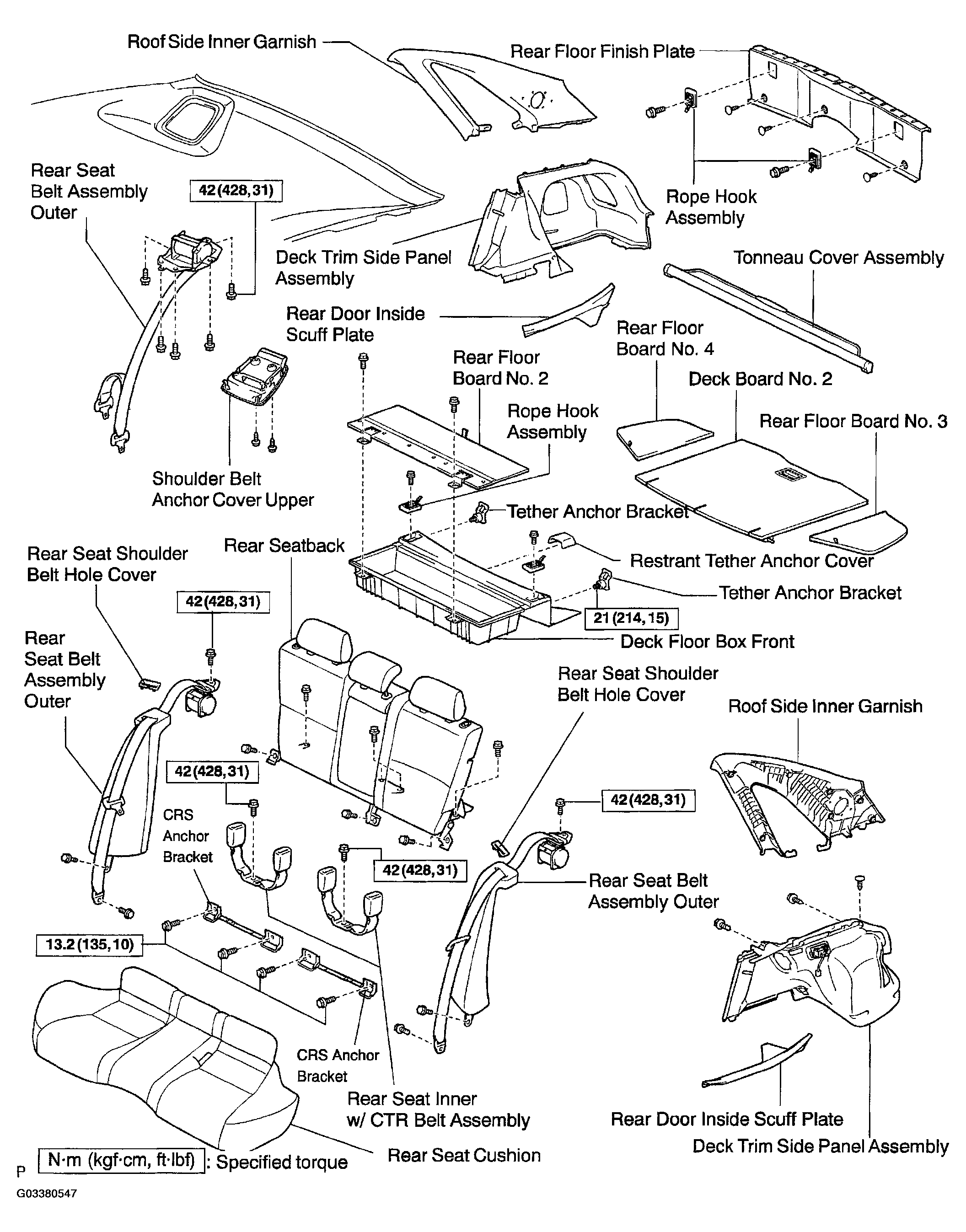

Fig 1: Exploded View Of Seat Belt (Wagon) Components

G03380547

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
