Front Bumper: Components

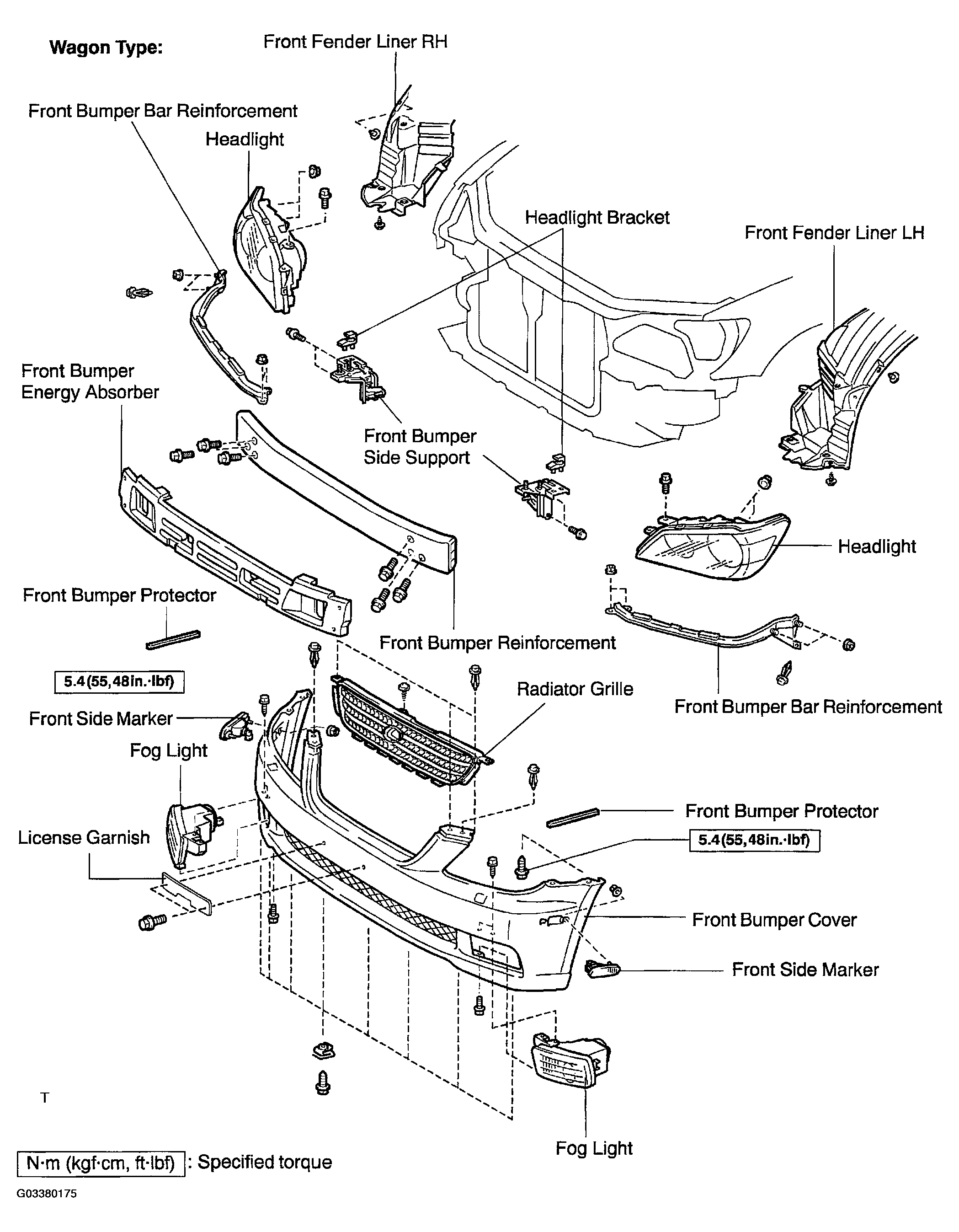

Fig 1: Identifying Front Bumper Components (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

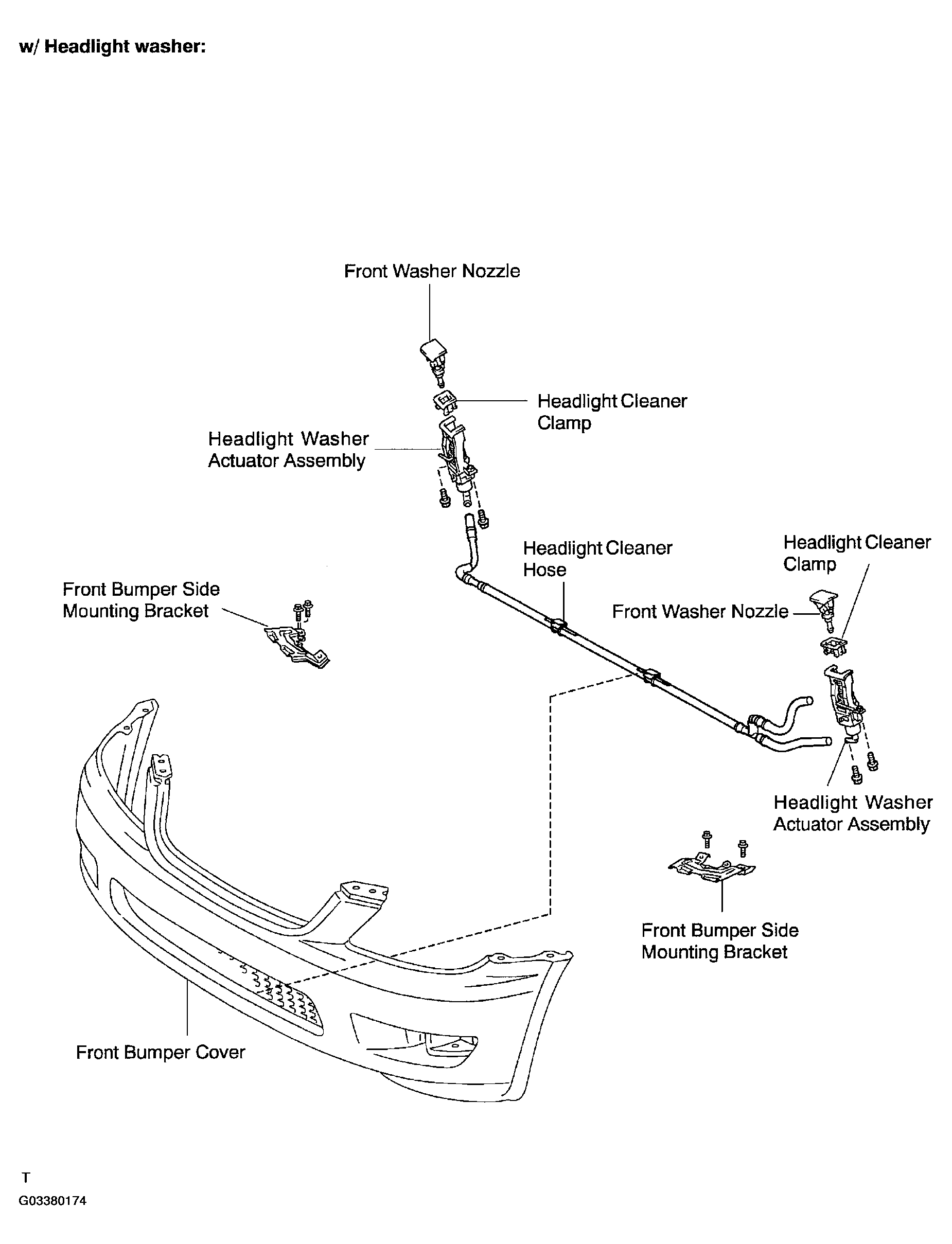

Fig 2: Identifying Front Bumper Components (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

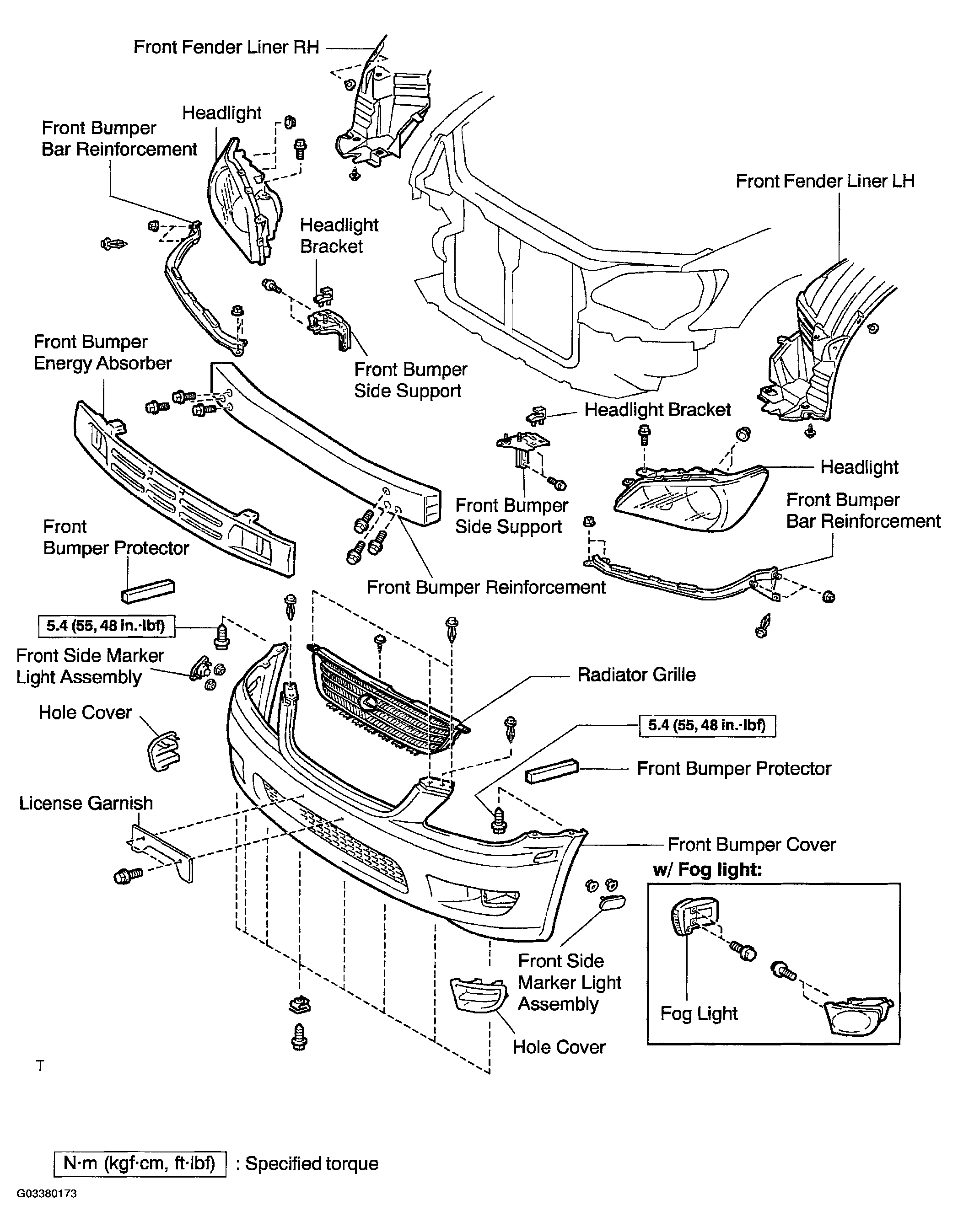

Fig 3: Identifying Front Bumper Components (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

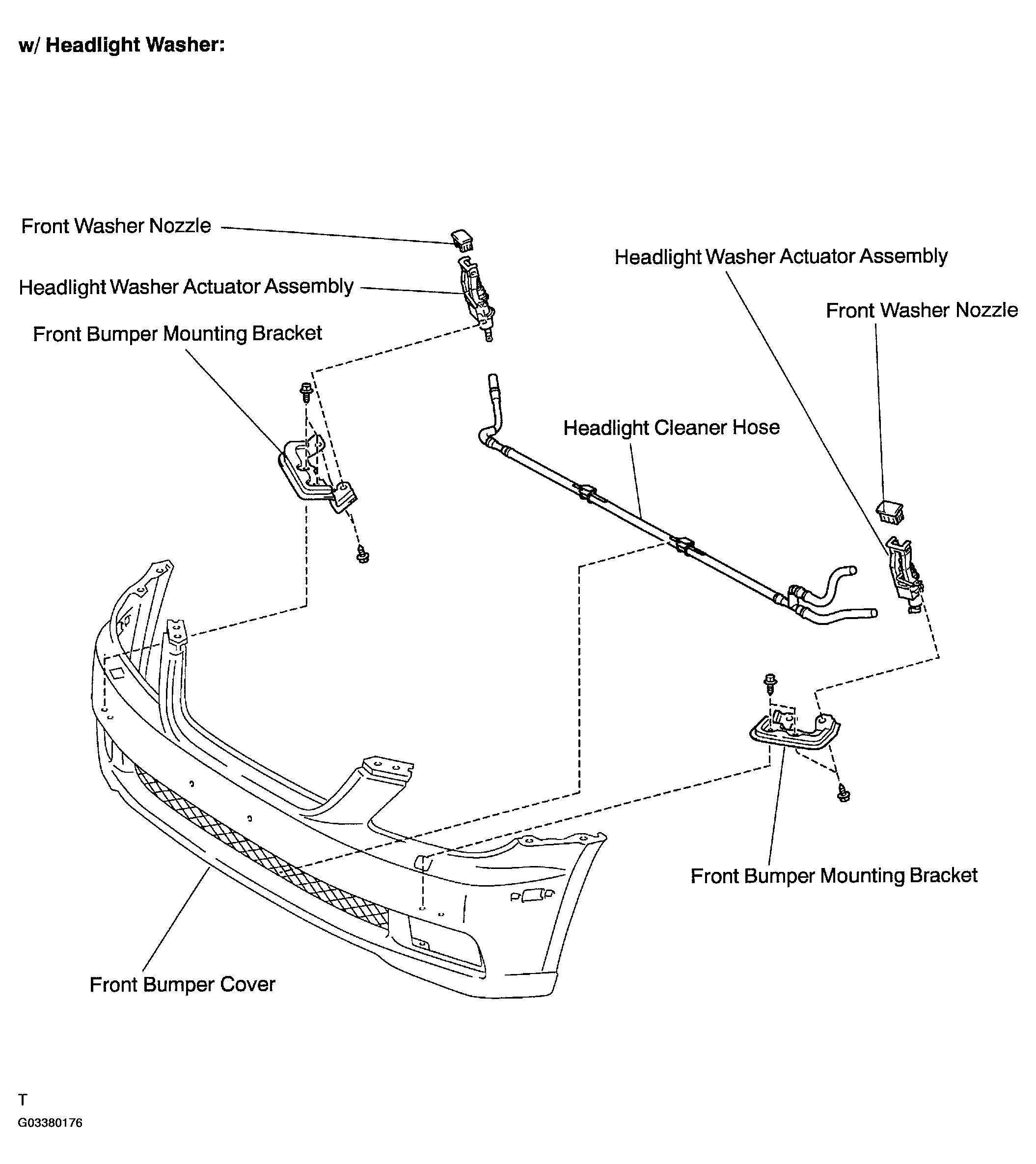

Fig 4: Identifying Front Bumper Components (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
