Floor Shift ASSY: Components

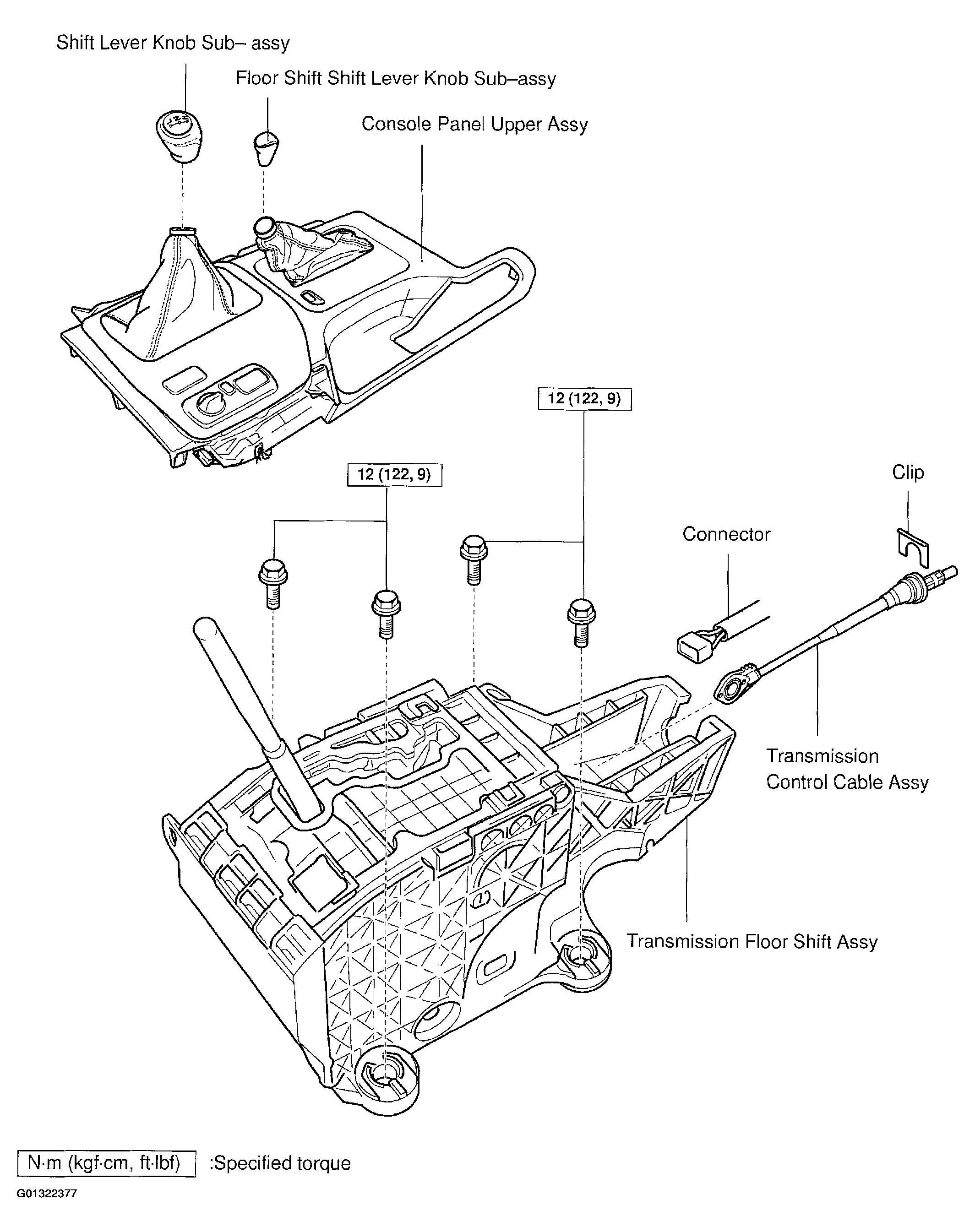

Fig 1: Identifying Floor Shift Assy Components (1 Of 2)
G01322377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

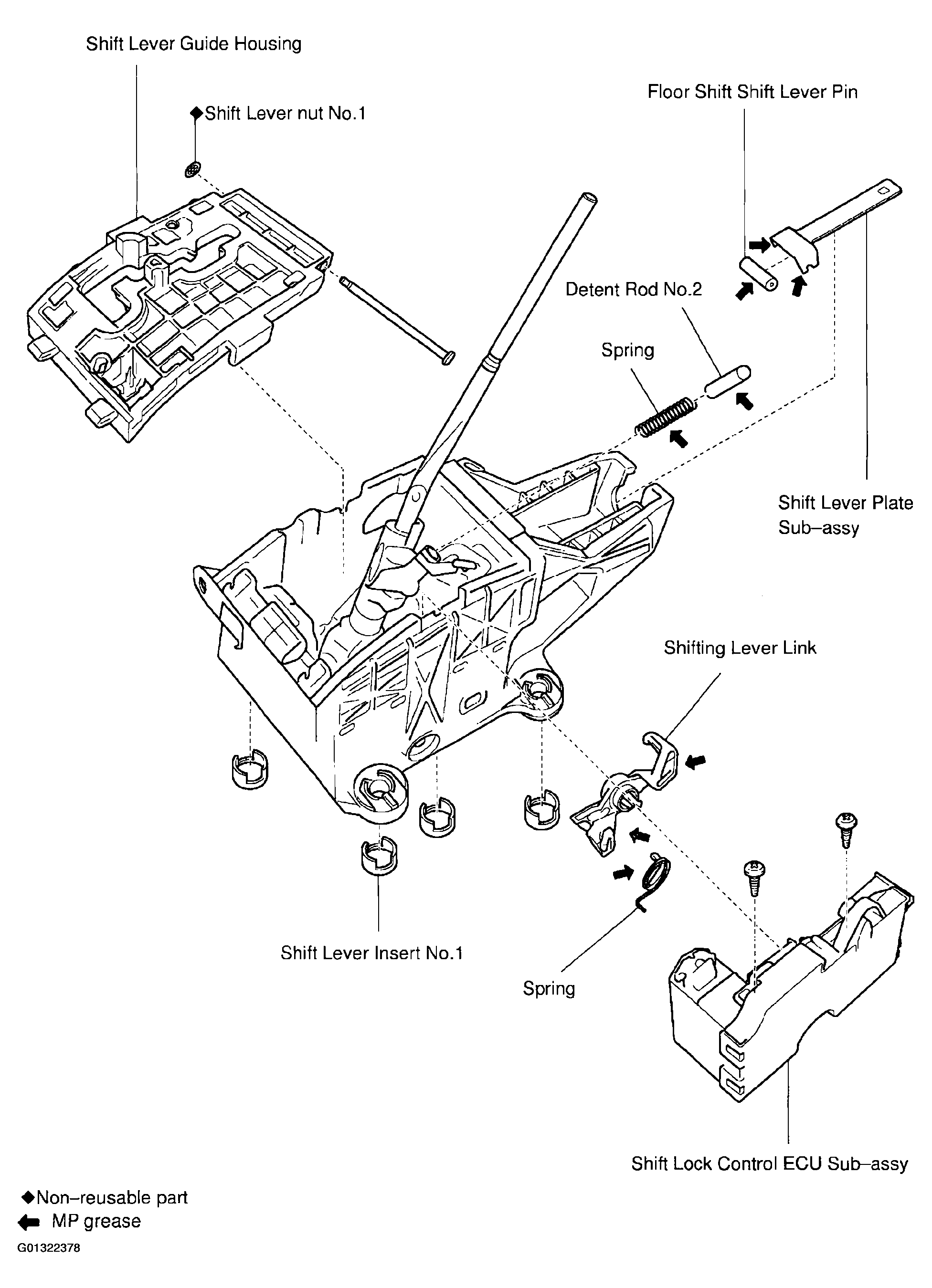

Fig 2: Identifying Floor Shift Assy Components (2 Of 2)
G01322378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
