Diagnosis & Repair (Using OBD-II Scan Tool)

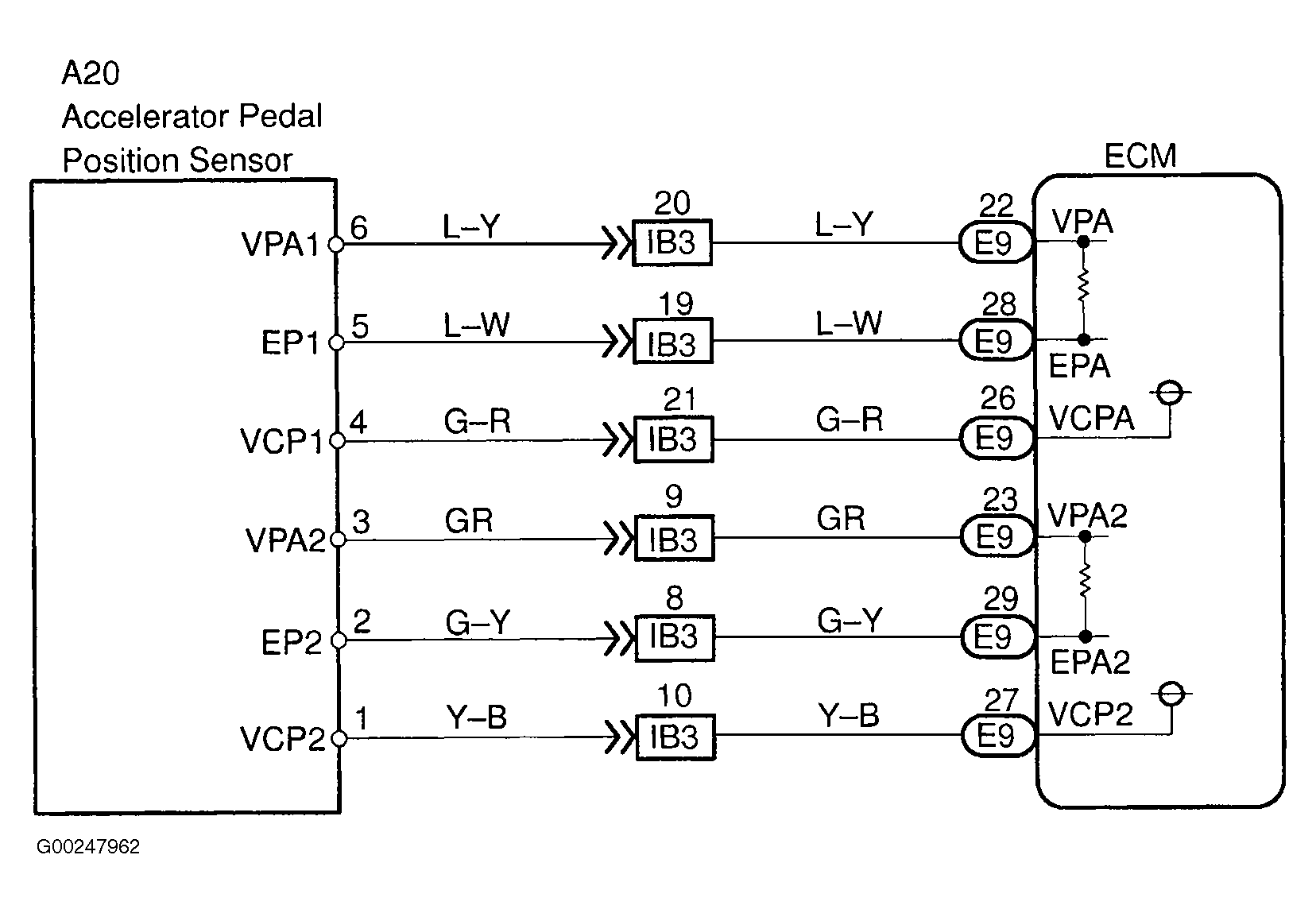

For wiring diagram, see Figure. For diagnosis and repair, see Fig 1.

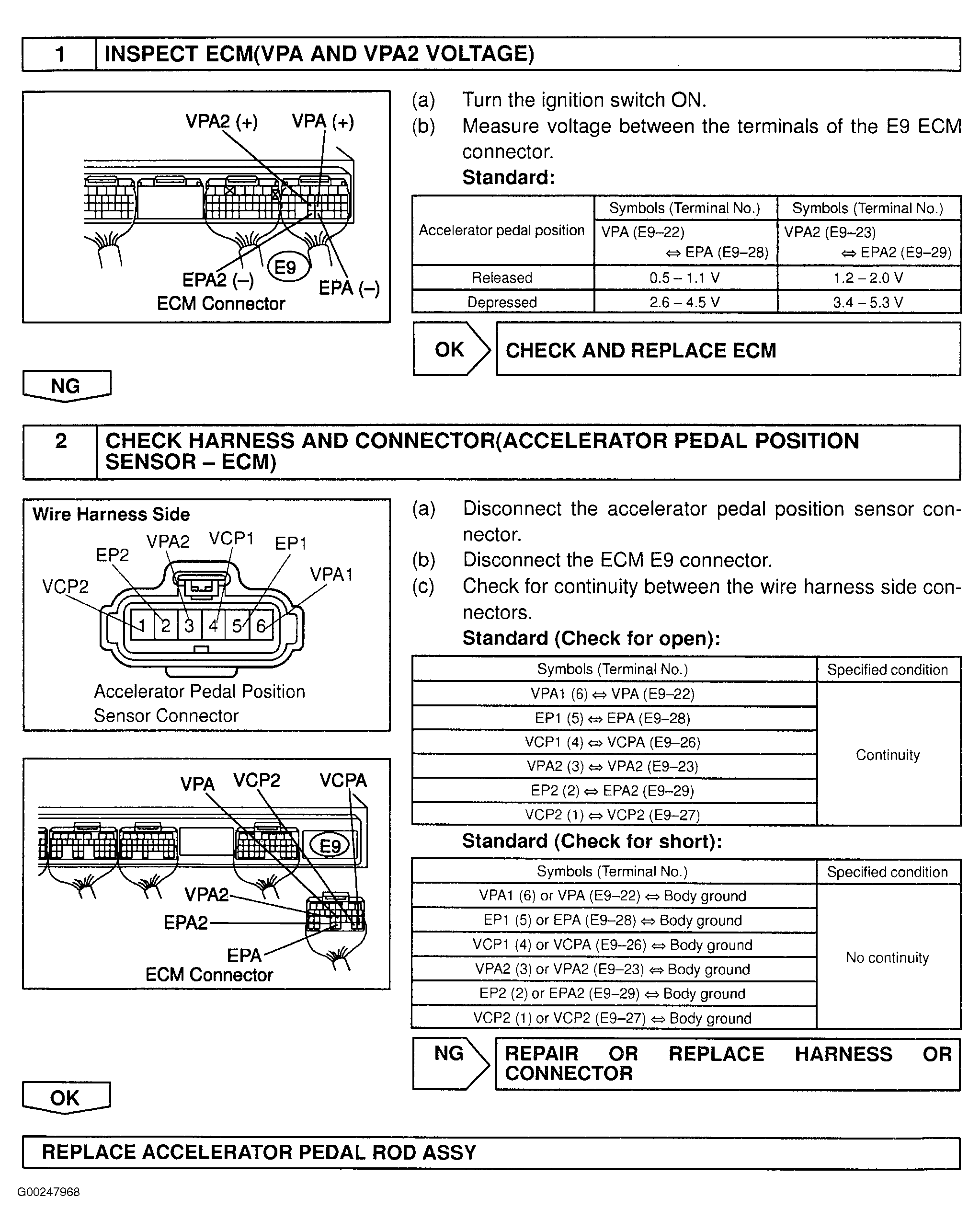

Fig 1: Diagnosis & Repair Of Throttle /Pedal Position Sensor/Switch "D"

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
