Removal & Installation

  1. Remove engine under cover rear assembly.
  2. Disconnect crankshaft position sensor connector. Remove bolt and crankshaft position sensor. See Fig 1.
  3. To install, reverse removal procedure. Tighten bolt to specification. See TORQUE SPECIFICATIONS .

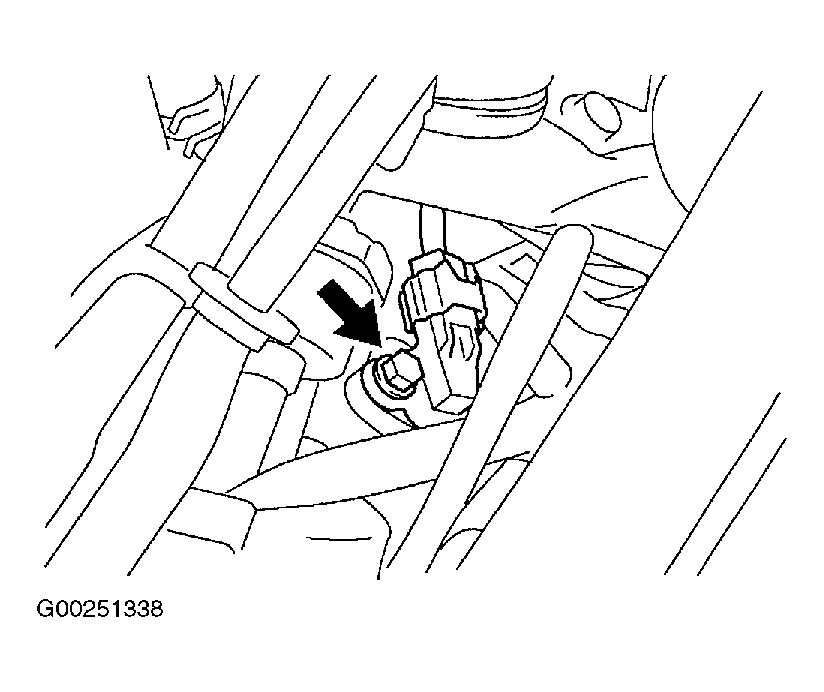

Fig 1: Removing Crankshaft Position Sensor
G00251338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
