Instrument Panel Safety Pad Sub-ASSY: Replacement

HINT:

COMPONENTS: See COMPONENTS .

  1. TABLE OF BOLT, SCREW AND NUT

    HINT:

    The bolts, screws and nuts, which are necessary for installation and removal of the instrument panel, are shown in the illustration below with alphabets.

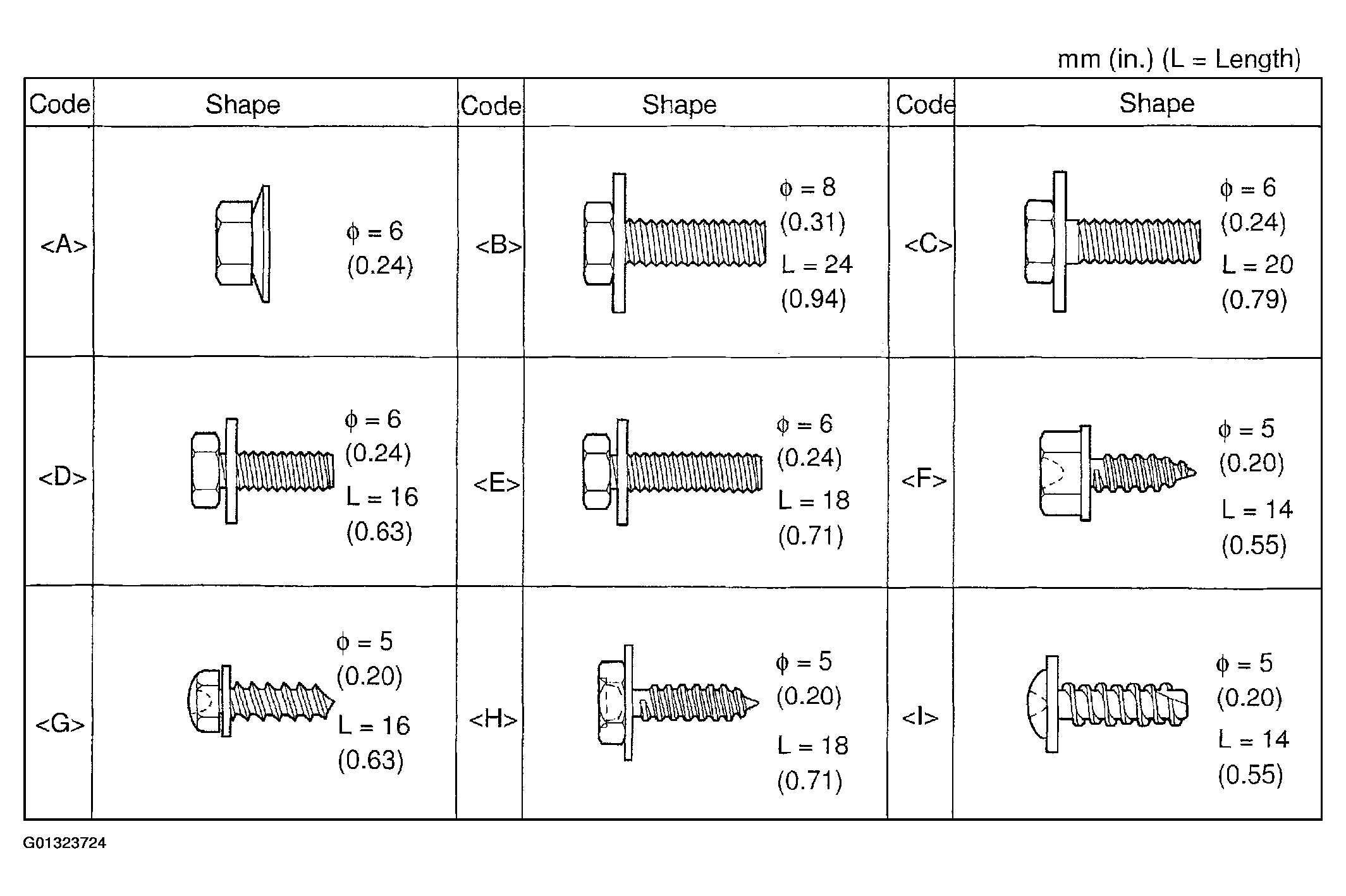

    Fig 1: Bolts, Screws & Nut Specification Table
    G01323724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DISCONNECT BATTERY NEGATIVE TERMINAL (See  AIR BAG SAFETY PRECAUTIONS  .
  3. REMOVE SHIFT LEVER KNOB SUB-ASSY
  4. REMOVE SHIFT LEVER KNOB SUB-ASSY

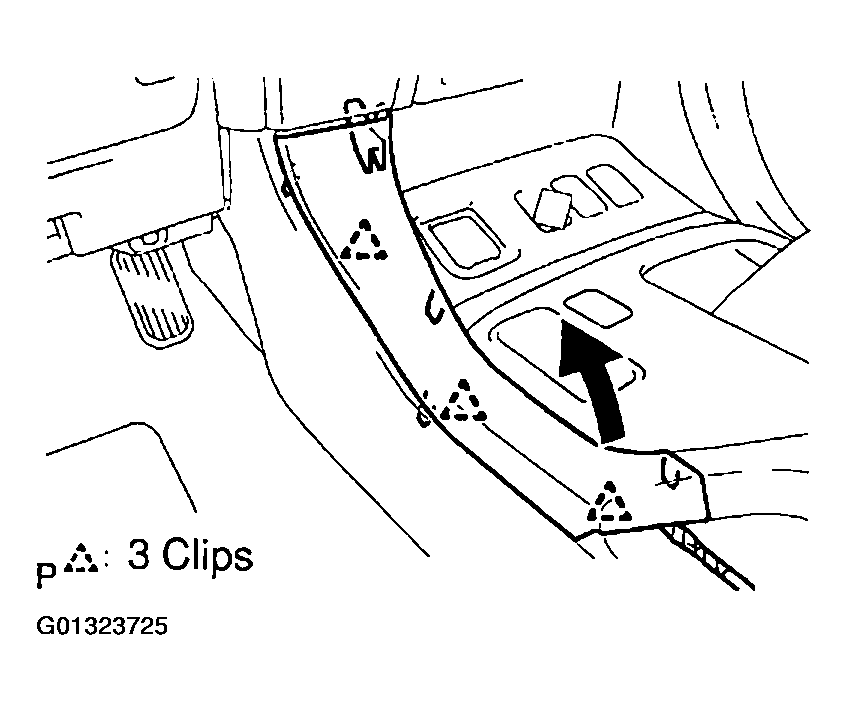

  5. REMOVE CONSOLE UPPER PANEL GARNISH NO.2
    1. Disengage the 3 clips and remove the console upper panel garnish No.2.
    2. Fig 2: Removing Console Upper Panel Garnish No.2
      G01323725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE CONSOLE UPPER PANEL GARNISH NO.1
    1. Disengage the 4 clips and remove the console upper panel garnish No.1.

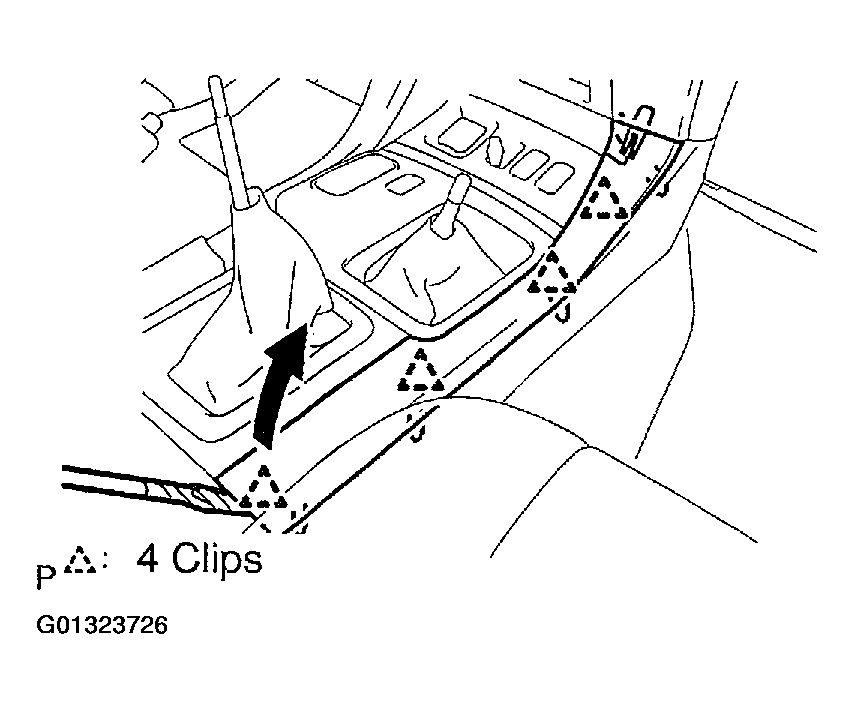

      Fig 3: Removing Console Upper Panel Garnish No.1
      G01323726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

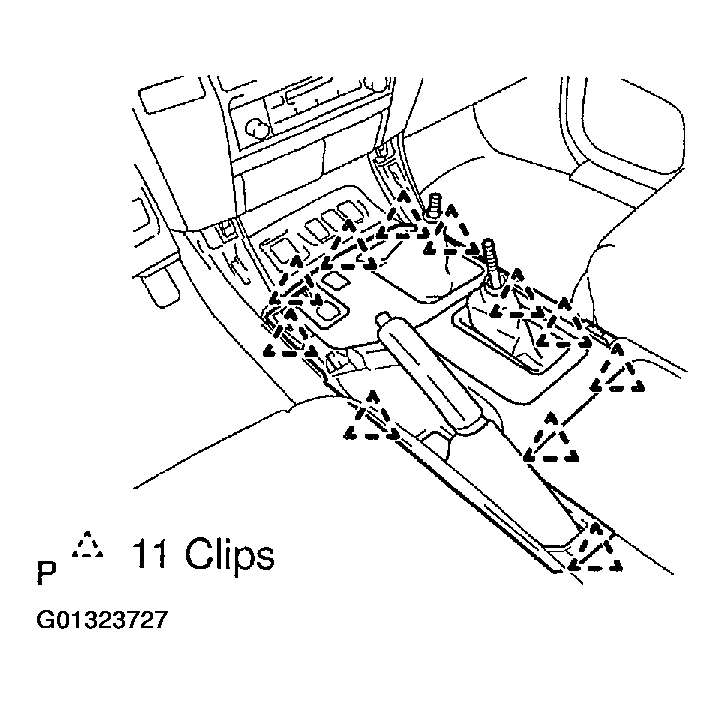

  7. REMOVE CONSOLE PANEL UPPER ASSY
    1. Disengage the 11 clips and remove the console panel upper assy, then disconnect the connectors.
      Fig 4: Removing Console Panel Upper Assembly
      G01323727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

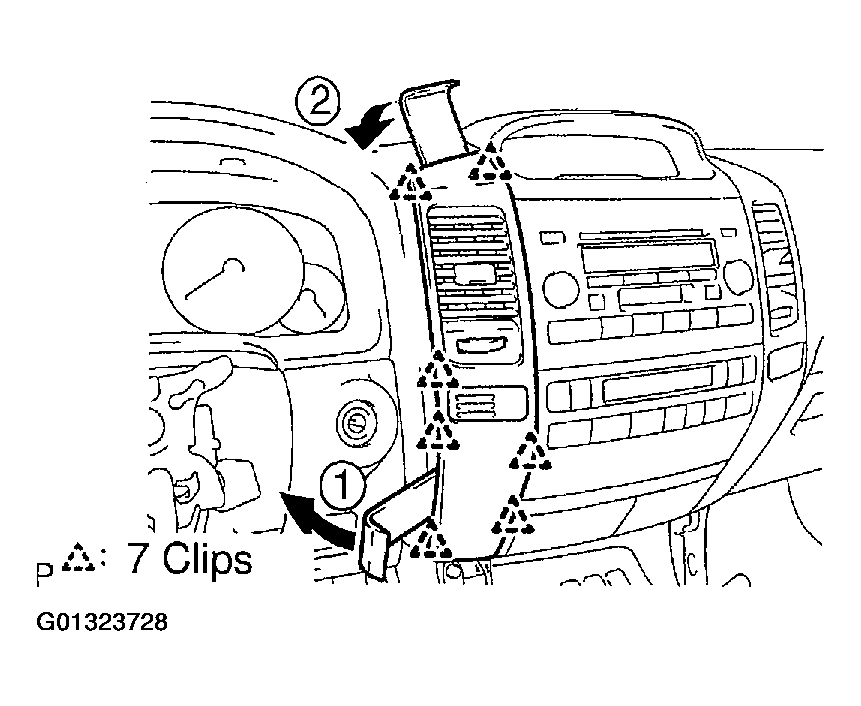

  8. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY LH
    1. Using a moulding remover, disengage the 7 clips as shown in the illustration.
      Fig 5: Removing Instrument Panel Garnish Sub-Assembly LH
      G01323728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector and remove the instrument panel garnish sub-assy LH.
  9. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSY RH

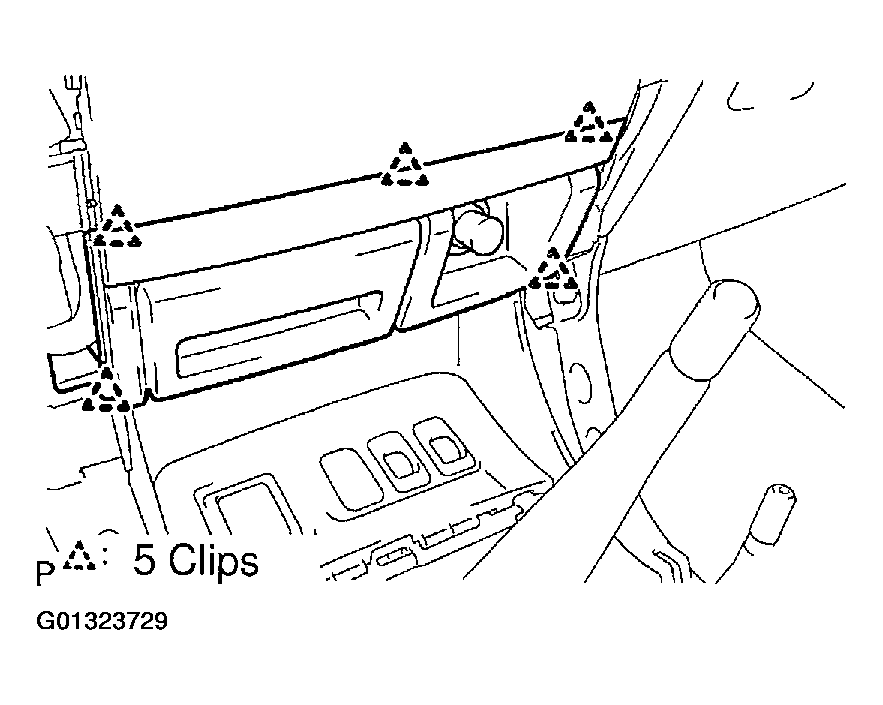

  10. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER LOWER
    1. Disengage the 5 clips and remove the instrument cluster finish panel center lower, then disconnect the connectors.
      Fig 6: Removing Instrument Cluster Finish Panel Center Lower
      G01323729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE INTEGRATION CONTROL & PANEL ASSY (See  OVERHAUL  )  .
  12. REMOVE CONSOLE REAR END PANEL SUB-ASSY
    1. Disengage the 2 clips and the 5 claws, and then remove the console rear end panel sub-assy.
      Fig 7: Removing Console Rear End Panel Sub-Assembly
      G01323730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connectors.

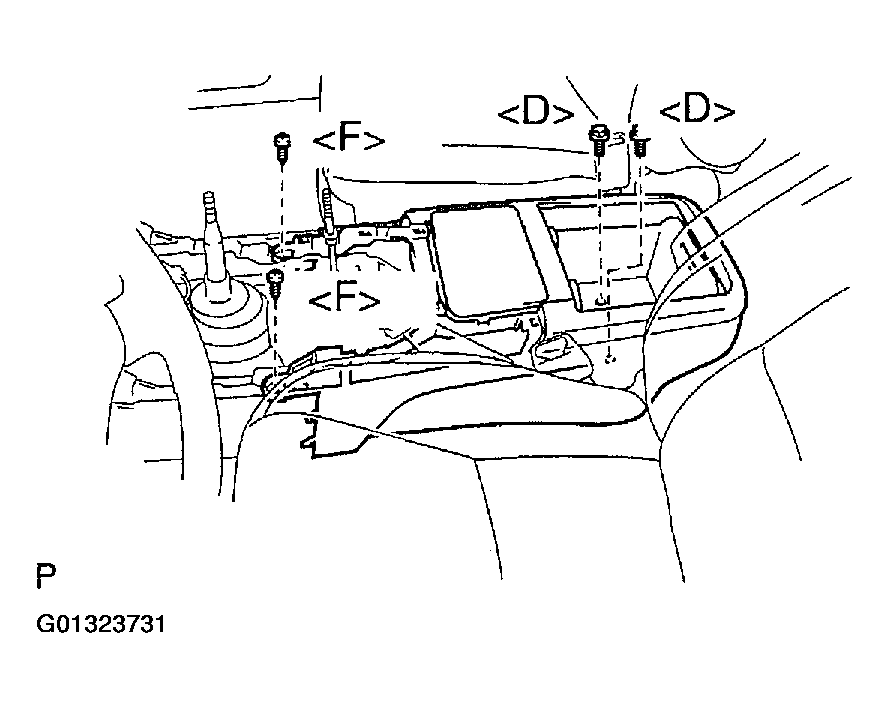

  13. REMOVE RR CONSOLE BOX ASSY
    1. Remove the 2 bolts <D>, the 2 screws <F> and the RR console box assy.
      Fig 8: Removing RR Console Box Assembly
      G01323731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE CONSOLE BOX INSERT FRONT NO.2
    1. Disengage the 2 claws.
    2. Pull the console box insert front No. 2 rearward to remove it.
      Fig 9: Removing Console Box Insert Front No.2
      G01323732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE CONSOLE BOX INSERT

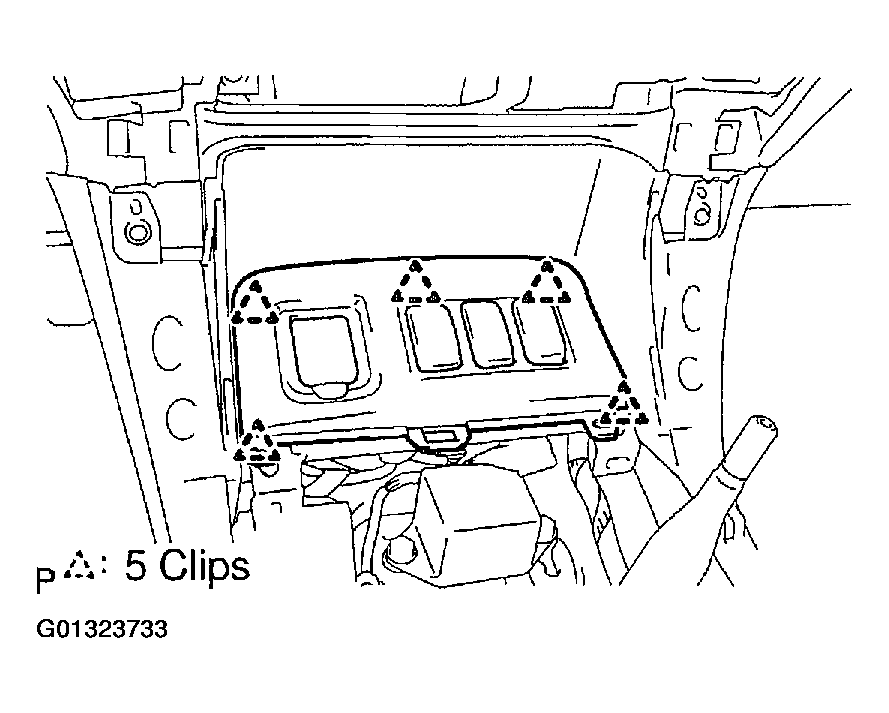

  16. REMOVE CONSOLE UPPER PANEL GARNISH FRONT
    1. Disengage the 5 clips and remove the console upper panel garnish front, then disconnect the connectors.
      Fig 10: Removing Console Upper Panel Garnish Front
      G01323733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

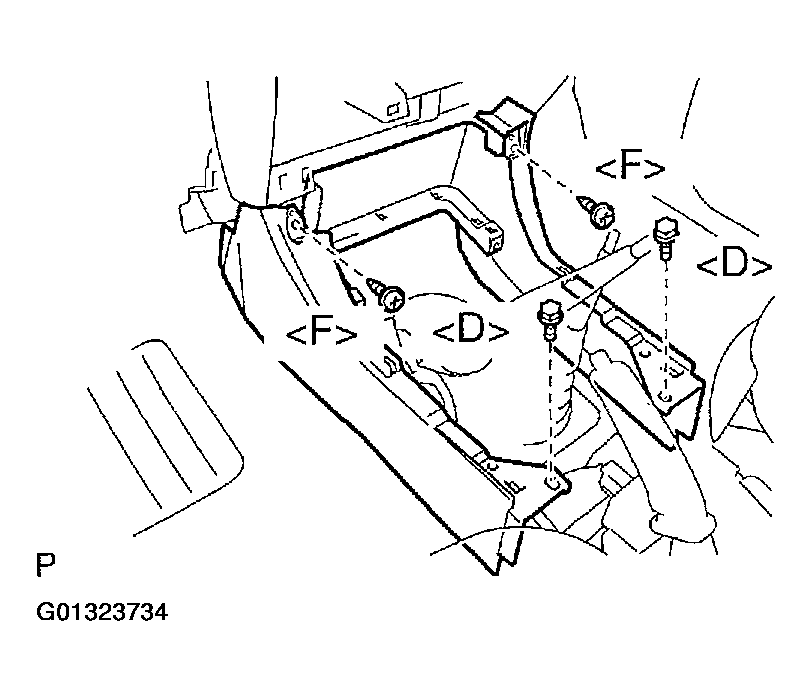

  17. REMOVE CONSOLE BOX LOWER
    1. Remove the 2 bolts <D>.
    2. Remove the 2 screws <F> and the console box lower.
      Fig 11: Removing Console Box Lower
      G01323734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE STEERING WHEEL COVER LOWER NO.2
  19. REMOVE STEERING WHEEL COVER LOWER NO.3
  20. REMOVE HORN BUTTON ASSY (See  OVERHAUL  )  .
  21. REMOVE STEERING WHEEL ASSY (See  OVERHAUL  )  .

    SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

  22. REMOVE STEERING COLUMN COVER (See  OVERHAUL  )  .
  23. REMOVE TURN SIGNAL SWITCH ASSY W/SPIRAL CABLE SUB-ASSY (See  OVERHAUL  )  .
  24. REMOVE FRONT DOOR SCUFF PLATE LH  .
  25. REMOVE FRONT DOOR SCUFF PLATE RH  .
  26. REMOVE FRONT FLOOR FOOTREST
    1. Disengage the 2 claws and remove the front floor footrest.

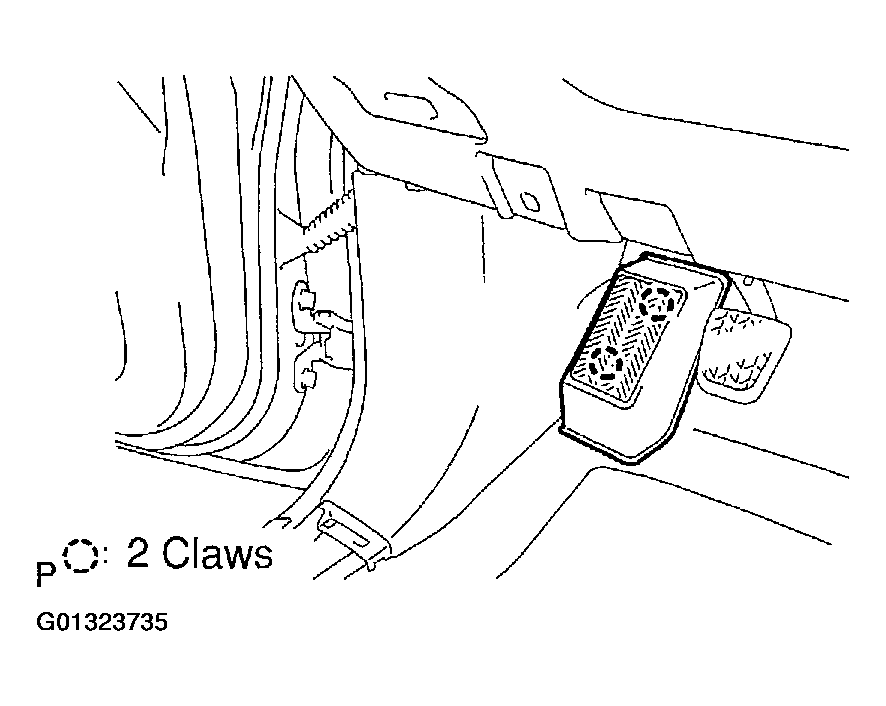

      Fig 12: Removing Front Floor Footrest
      G01323735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE COWL SIDE TRIM BOARD LH
    1. Remove the clip.
    2. Disengage the 2 clips and remove the cowl side trim board LH.

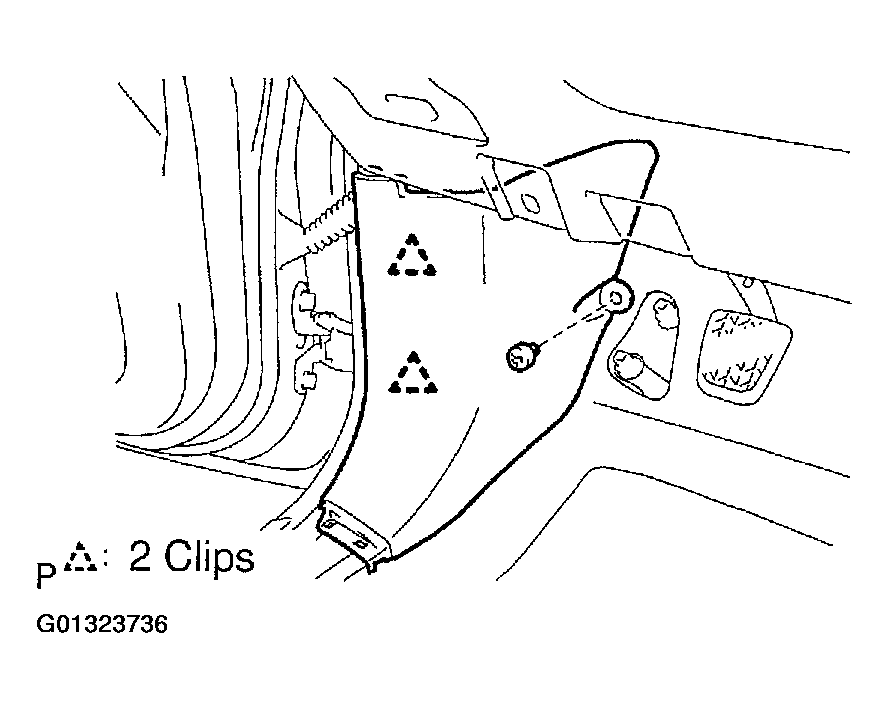

      Fig 13: Removing Cowl Side Trim Board LH
      G01323736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE COWL SIDE TRIM BOARD RH
  29. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1
    1. Remove the screw <G>.
    2. Disengage the 2 clips and the claw, and then remove the instrument panel under cover sub-assy No. 1.
      Fig 14: Removing Instrument Panel Under Cover Sub-Assembly No.1
      G01323737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

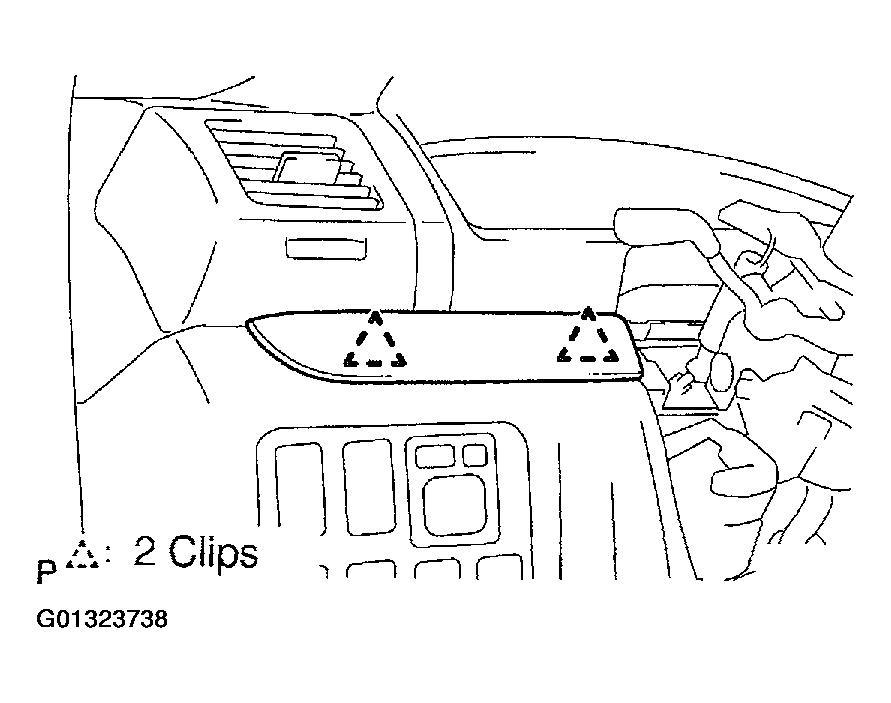

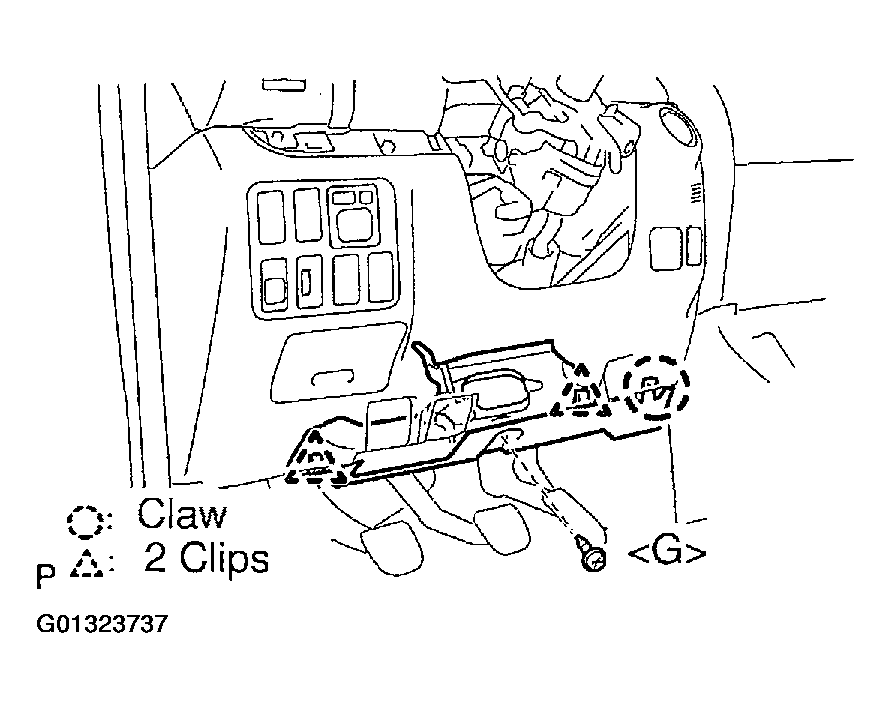

  30. REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT
    1. Disengage the 2 clips and remove the instrument cluster finish panel ornament.
      Fig 15: Removing Instrument Cluster Finish Panel Ornament
      G01323738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE SWITCH HOLE BASE NO.1

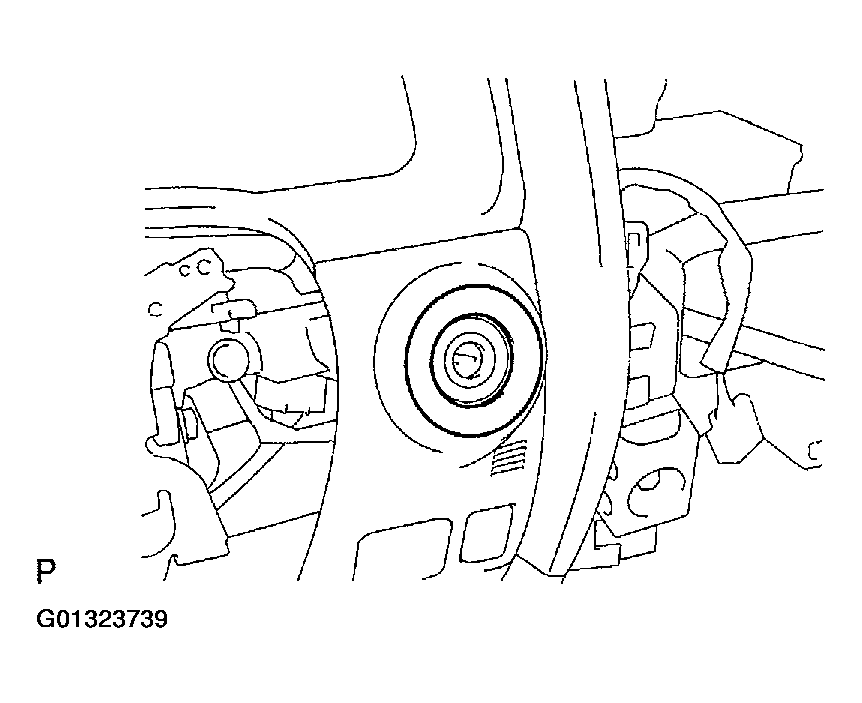

  32. REMOVE INSTRUMENT PANEL FINISH PLATE
    1. Remove the instrument panel finish plate.
      Fig 16: Removing Instrument Panel Finish Plate
      G01323739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL RH
    1. Remove the 3 bolts <E>.
    2. Disconnect the hood lock control cable assy and the fuel lid lock control cable sub-assy.
    3. Disengage the 4 clips.
    4. Disconnect the connectors and remove the instrument panel finish lower panel RH.

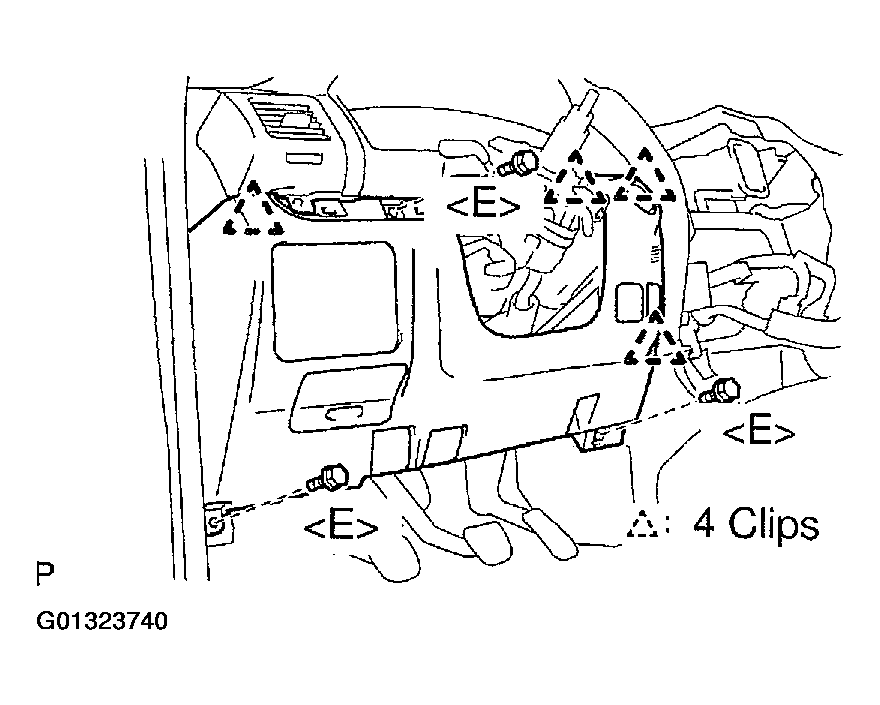

      Fig 17: Removing Instrument Panel Finish Lower Panel RH
      G01323740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE INSTRUMENT PANEL LOWER LH
    1. Remove the 3 bolts <E> and instrument panel lower LH.

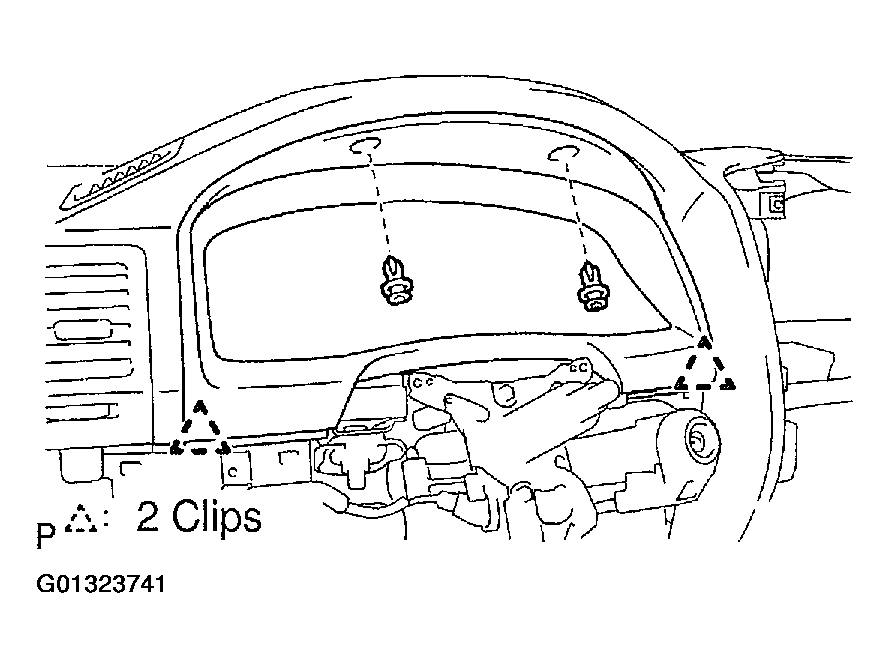

  35. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY
    1. Remove the 2 clips.
    2. Disengage the 2 clips and remove the instrument cluster finish panel sub-assy.
      Fig 18: Removing Instrument Cluster Finish Panel Sub-Assembly
      G01323741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

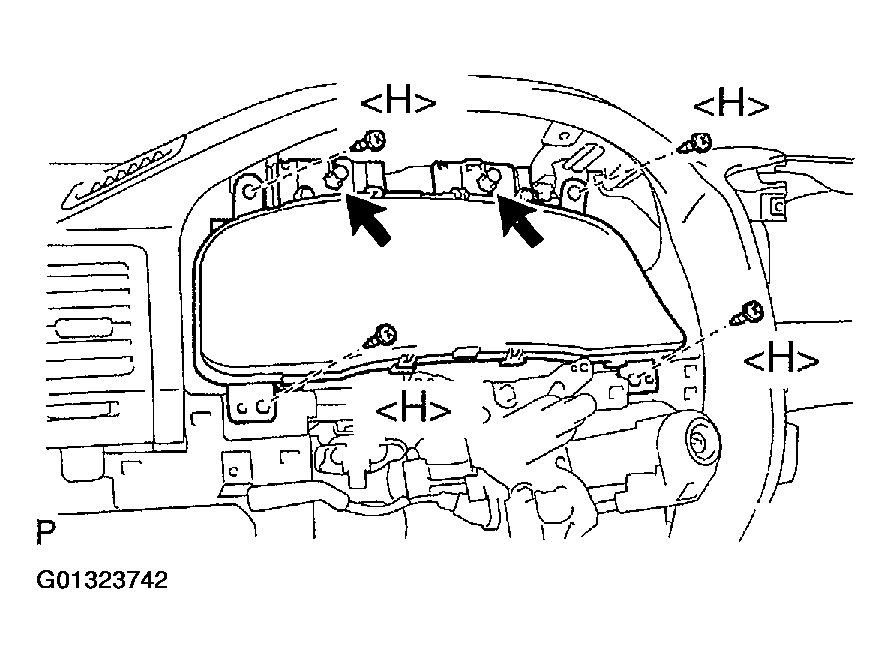

  36. REMOVE COMBINATION METER ASSY
    1. Remove the 4 screws <H>.
    2. Loosen the 2 bolts and remove the combination meter assy.
      Fig 19: Removing Combination Meter Assembly
      G01323742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

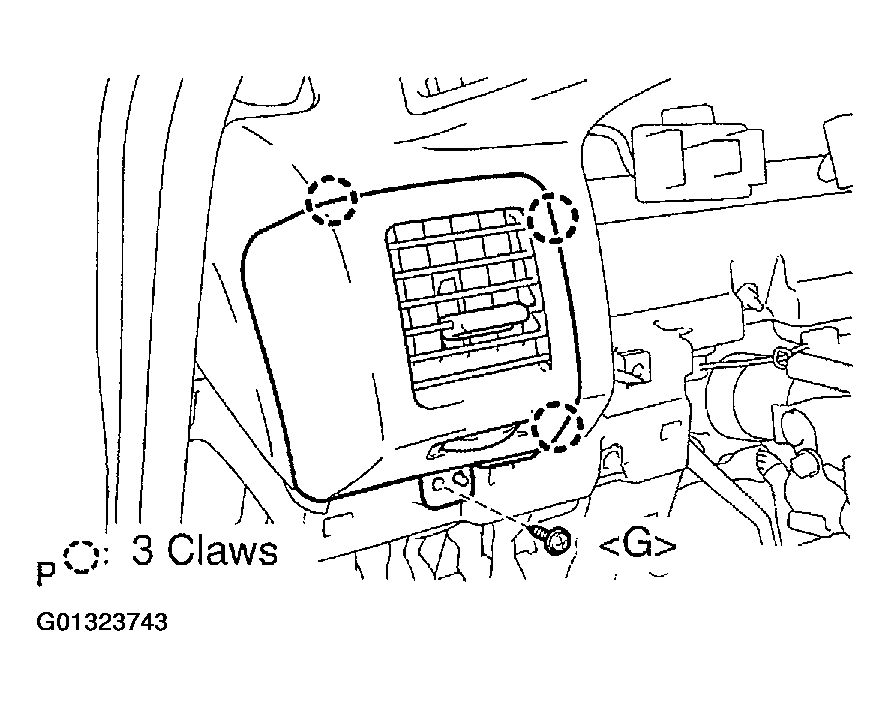

  37. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.1
    1. Remove the screw <G>.
    2. Disengage the 3 claws and remove the instrument panel register assy No.1.
      Fig 20: Removing Instrument Panel Register Assembly No.1
      G01323743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE INSTRUMENT PANEL UNDER COVER NO.2
    1. Remove the screw <G>.
    2. Disengage the 3 clips and remove the instrument panel under cover No.2.
      Fig 21: Removing Instrument Panel Under Cover No.2
      G01323744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE INSTRUMENT PANEL ORNAMENT
    1. Disengage the 4 clips and remove the instrument panel ornament.
      Fig 22: Removing Instrument Panel Ornament
      G01323745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. DISCONNECT PASSENGER AIRBAG CONNECTOR (See  INSTRUMENT PANEL  )  .
  41. REMOVE GLOVE COMPARTMENT DOOR ASSY
    1. Remove the 5 screws <G>.
    2. Disengage the 2 clips and remove the glove compartment door assy, then disconnect the connectors.

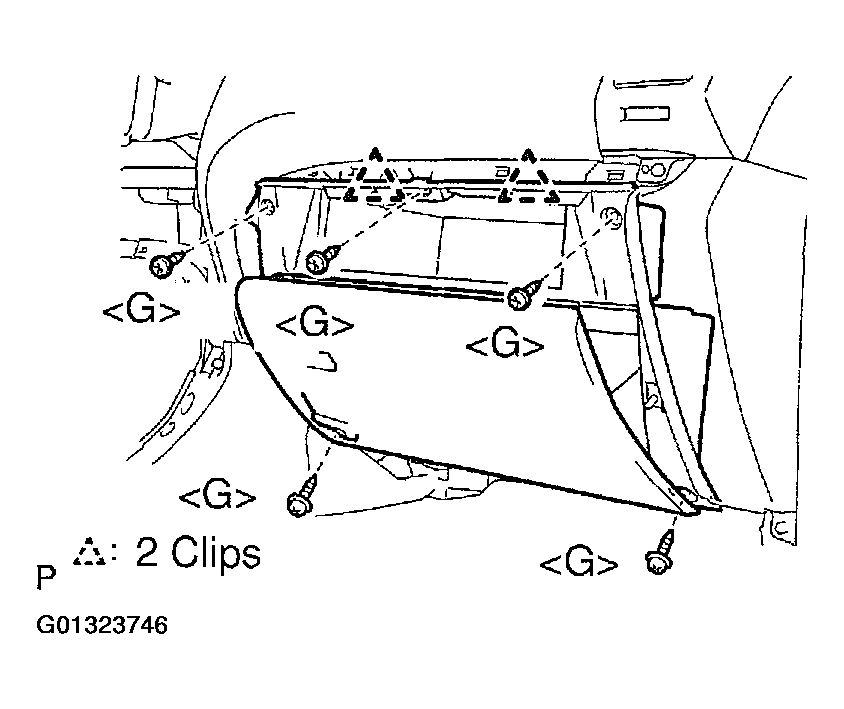

      Fig 23: Removing Glove Compartment Door Assembly
      G01323746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.2
  43. REMOVE DISC PLAYER CHANGER W/BRACKET (W/DISC PLAYER CHANGER)  .
  44. REMOVE ASSIST GRIP ASSY  .
  45. REMOVE FRONT PILLAR GARNISH LH  .
  46. REMOVE FRONT PILLAR GARNISH RH  .

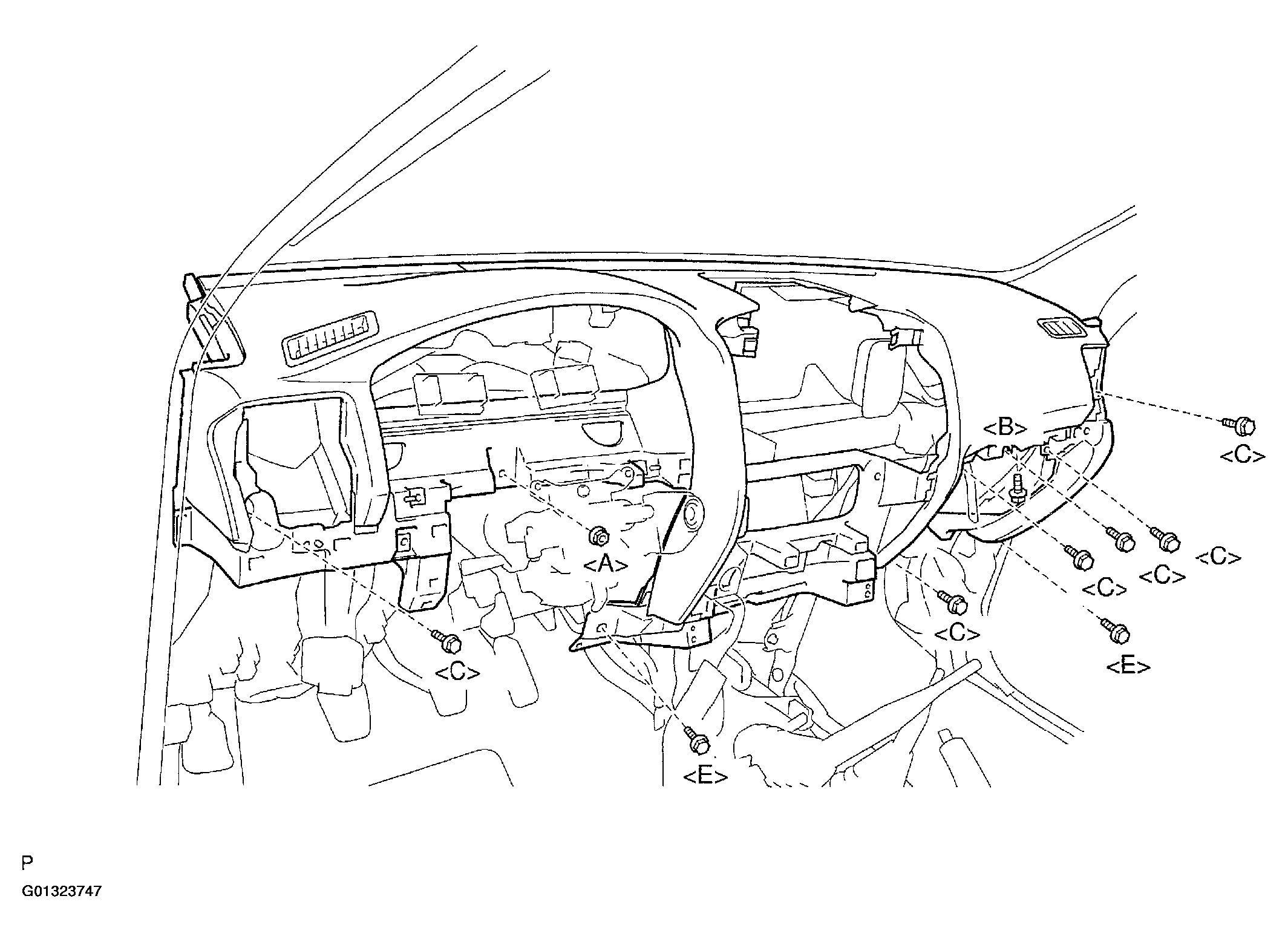

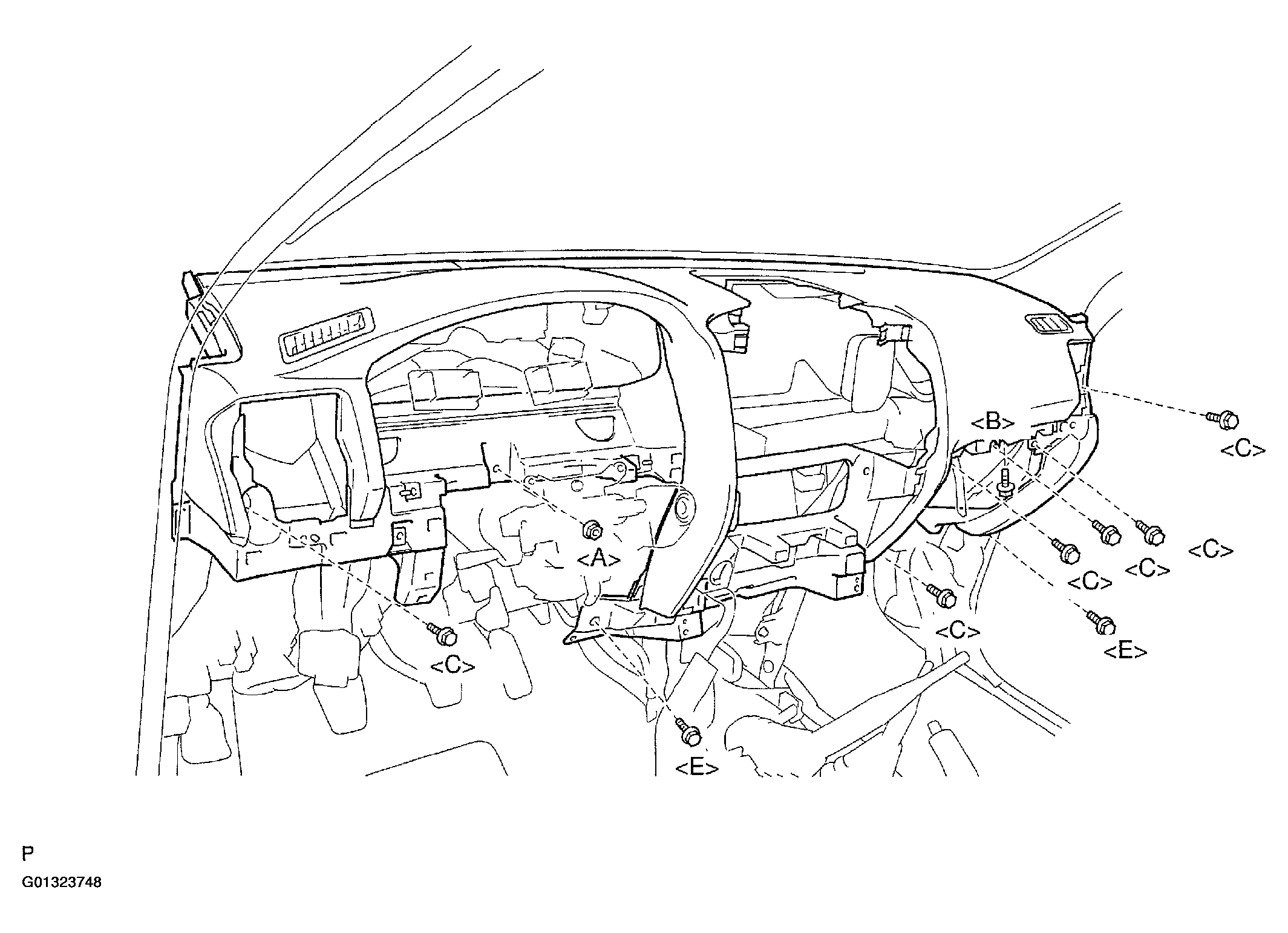

  47. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/DEFROSTER NOZZLE DUCT
    1. Remove the 9 bolts <C> <E> and nut <A>.
    2. Disconnect the connectors.
    3. Remove the instrument panel safety pad sub-assy w/defroster nozzle duct.
      Fig 24: Removing Instrument Panel Safety Pad Sub-Assembly W/Defroster Nozzle Duct
      G01323747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE DEFROSTER NOZZLE ASSY
    1. Remove the 5 screws <l> and defroster nozzle assy.
  49. REMOVE HEATER TO REGISTER DUCT NO.3
    1. Remove the 2 screws <l> and heater to register duct No.3.
  50. REMOVE SIDE DEFROSTER NOZZLE DUCT NO.1
  51. REMOVE SIDE DEFROSTER NOZZLE DUCT NO.2
  52. REMOVE AUTOMATIC LIGHT CONTROL SENSOR
  53. REMOVE INSTRUMENT PANEL WIRE NO.3
  54. REMOVE CONNECTOR NO.2 HOLDER
  55. REMOVE INSTRUMENT PANEL SPEAKER PANEL SUB-ASSY NO.1 (W/12 SPEAKER)
  56. REMOVE STEREO COMPONENT SPEAKER ASSY FRONT (W/12 SPEAKER) (See  STEREO COMPONENT SPEAKER ASSY FRONT  )  .
  57. REMOVE ANTENNA CORD SUB-ASSY  .
  58. REMOVE NAVIGATION ANTENNA ASSY (W/NAVIGATION SYSTEM)  .
  59. REMOVE INSTR PNL PASS L/DOOR AIR BAG ASSY (See  PASSENGER-SIDE AIR BAG MODULE  )  .
  60. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY
  61. INSTALL INSTR PNL PASS L/DOOR AIR BAG ASSY (See  PASSENGER-SIDE AIR BAG MODULE  )  .
  62. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/DEFROSTER NOZZLE DUCT
    1. Using a torque wrench, install the bolt.

    Torque: 20 N.m (204 kgf.cm, 14 ft.lbf)

    Fig 25: Installing Instrument Panel Safety Pad Sub-Assembly W/Defroster Nozzle Duct
    G01323748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

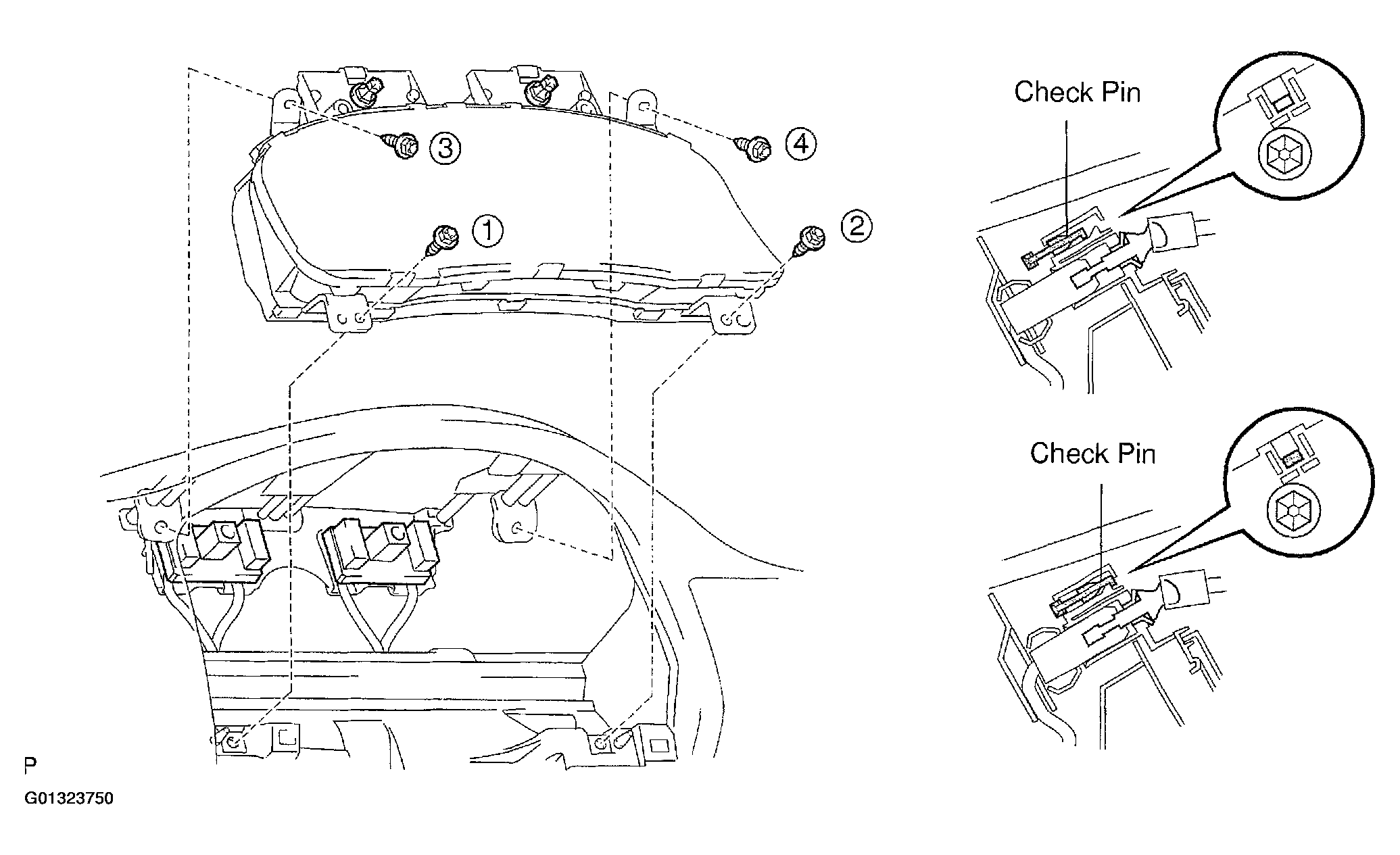

  63. INSTALL COMBINATION METER ASSY
    1. Pull the check pin backward while pressing the check pin with a flat-head screwdriver as shown in the illustration.
    2. Check that the wire harness connector is engaged in the instrument panel safety pad installation position.
    3. Install the 4 screws in order as shown in the illustration.
    4. Tighten the 2 connector fitting bolts until a clicking sound can be heard.
    5. After tightening, check that the check pin protrudes.
      Fig 26: Pulling Check Pin Backward
      G01323749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 27: Installing Combination Meter Assembly
      G01323750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  64. ADJUST SPIRAL CABLE SUB-ASSY (See  SPIRAL CABLE  )  .
  65. INSTALL STEERING WHEEL ASSY (See  OVERHAUL  )  .
  66. INSTALL HORN BUTTON ASSY (See  OVERHAUL  )  .
  67. INSPECT HORN BUTTON ASSY (See  OVERHAUL  )  .
  68. INCLINATION SENSOR 0° CORRECTION (See  OVERHAUL  )  .
  69. INSPECT SRS WARNING LIGHT (See  SYSTEM OPERATION CHECK  )  .
