Instrument Panel Junction & Relay Blocks: Notes

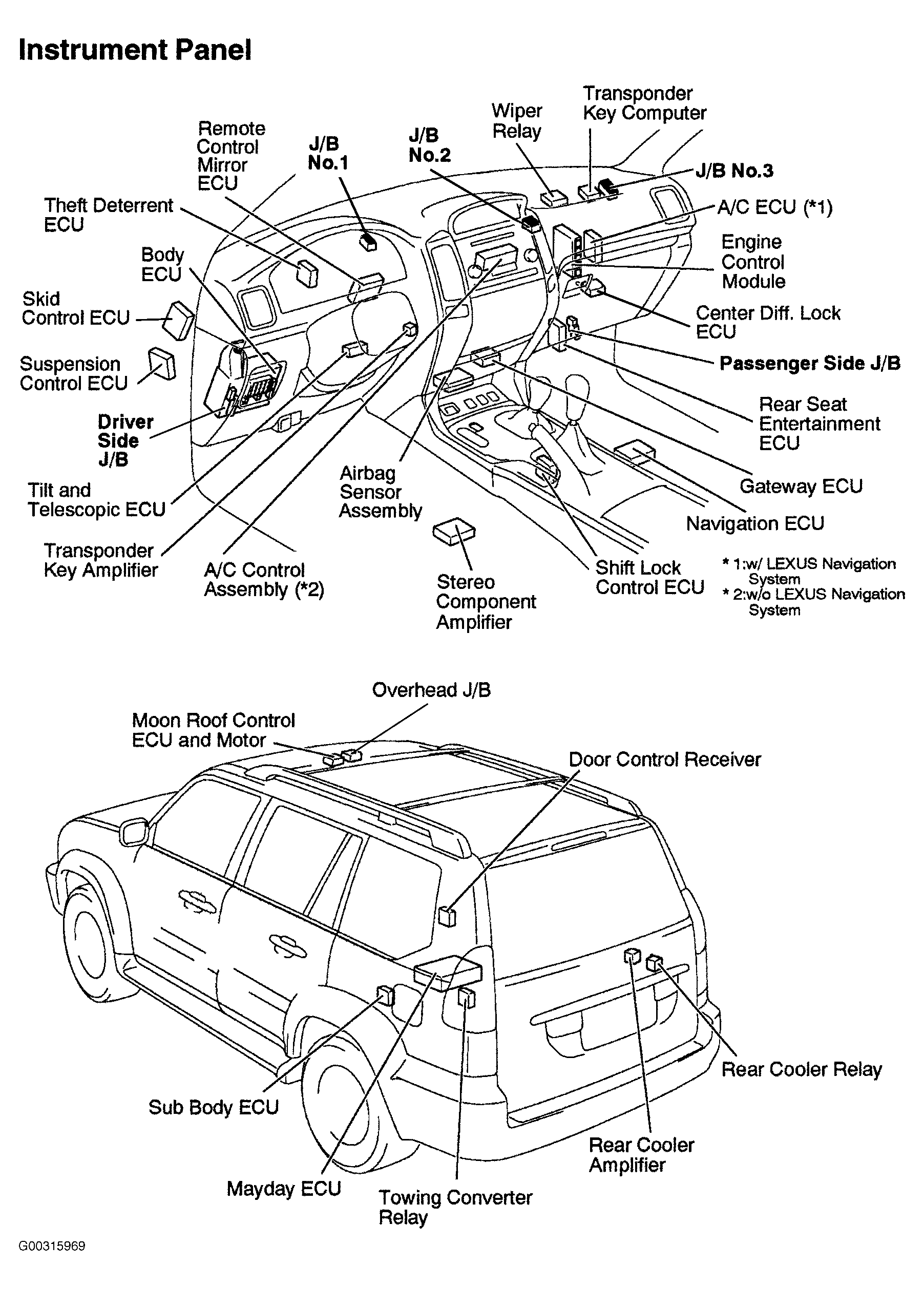

NOTE: For instrument panel and passenger compartment area junction and relay block locations, see Figure. For description of electrical power distribution, see Figure.
