Home >> Lexus >> 2003 >> GX 470 >> Repair and Diagnosis >> Body & Frame >> Seats >> Front Power Seat Control System >> Location

Front Power Seat Control System: Location

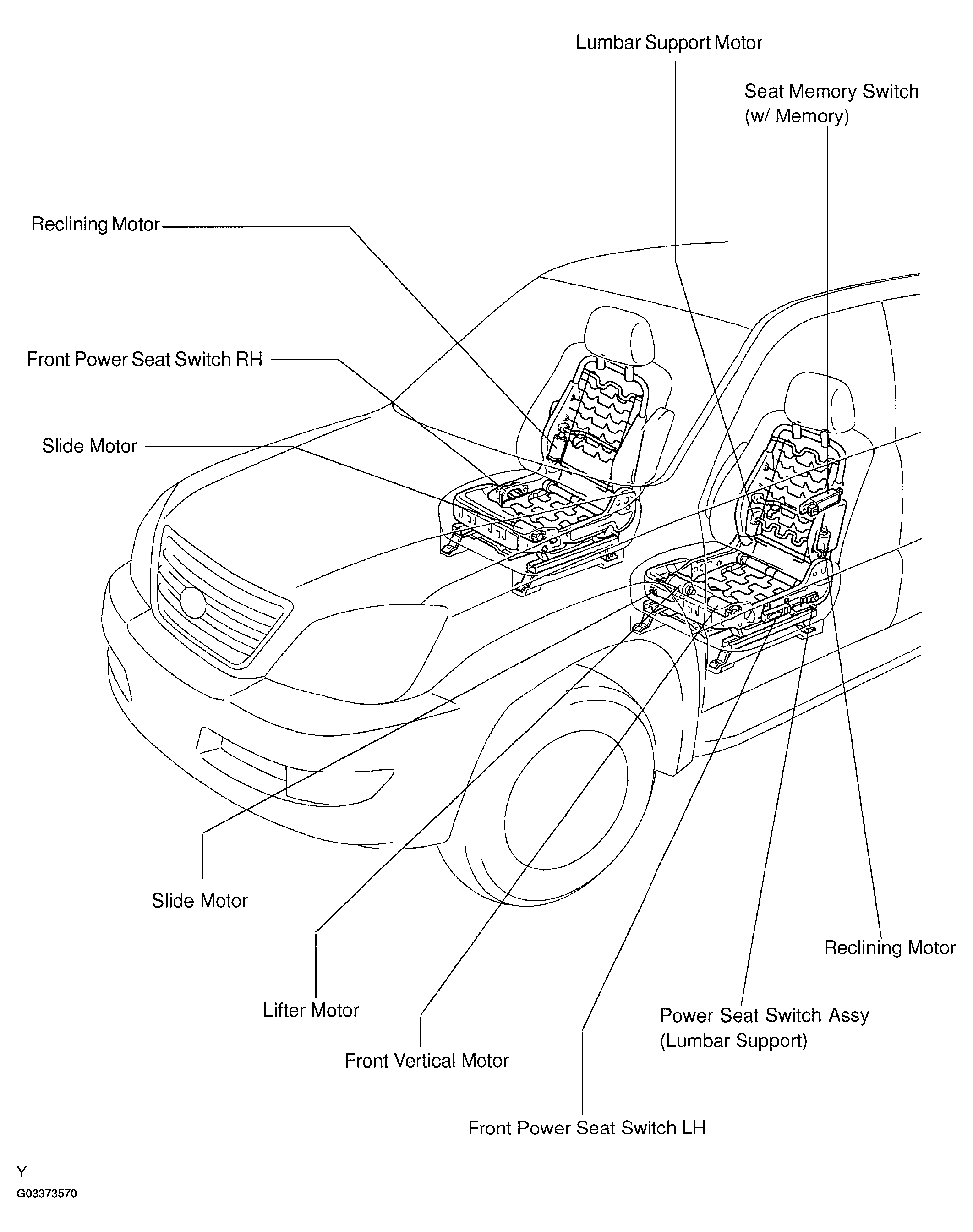

Fig 1: Locating Front Power Seat Control System

G03373570

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
