Power Door Lock Control System - Diagnosis: Location

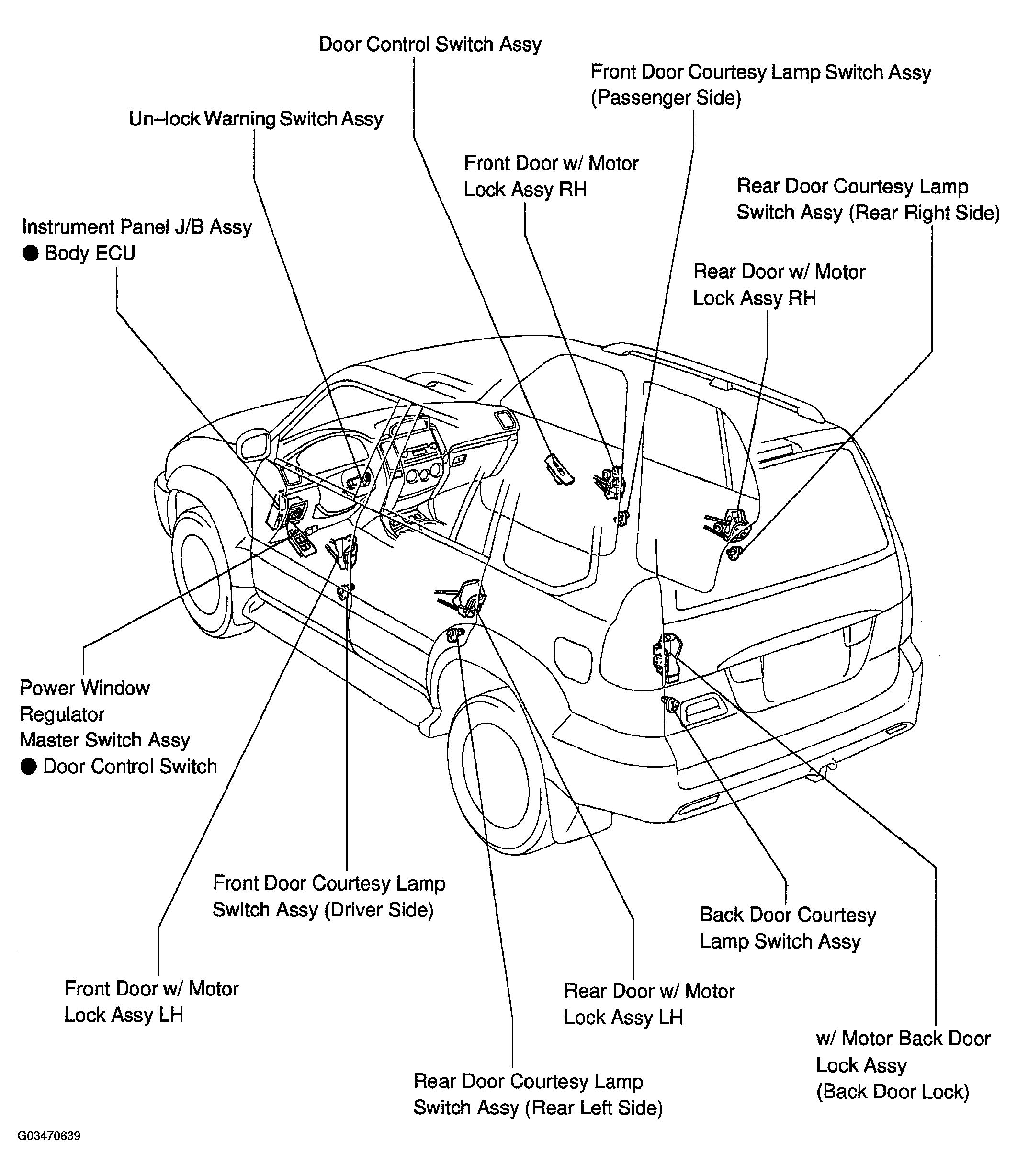

Fig 1: Locating Power Door Lock Control System Components

G03470639

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
