Front Door: Components

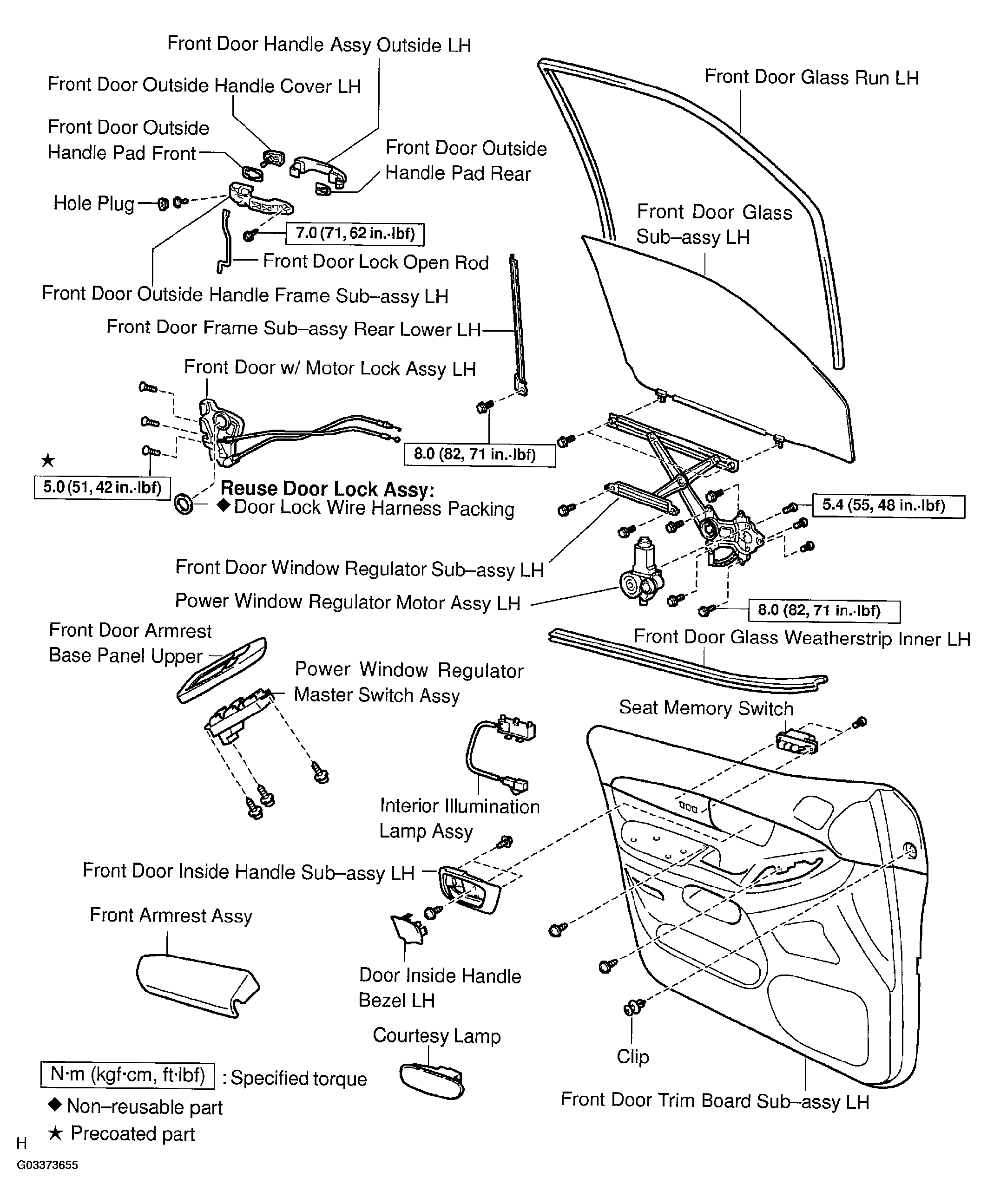

Fig 1: Exploded View Of Front Door (1 Of 2)
G03373655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

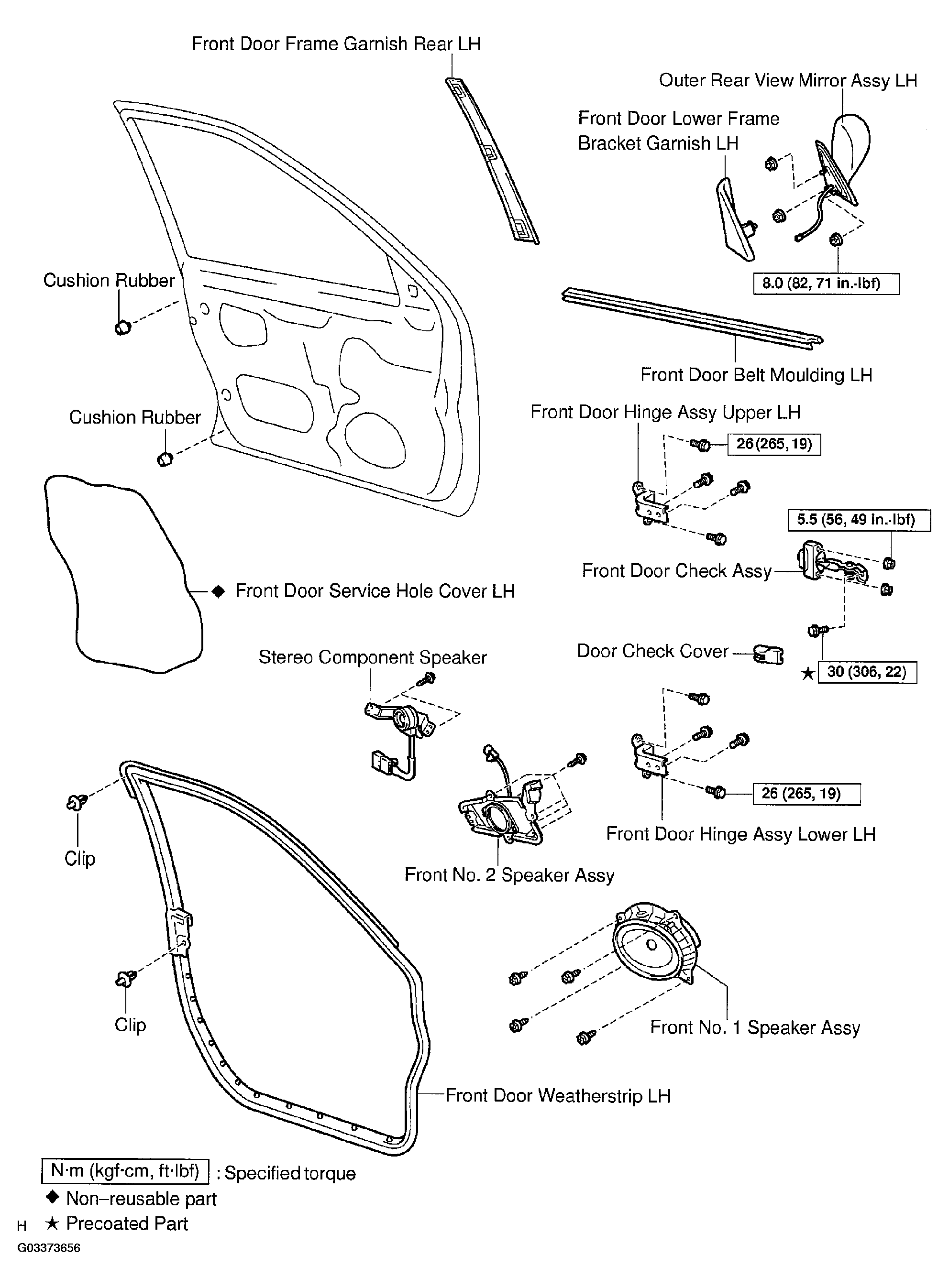

Fig 2: Exploded View Of Front Door (2 Of 2)
G03373656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
