Mayday ASSY: Components

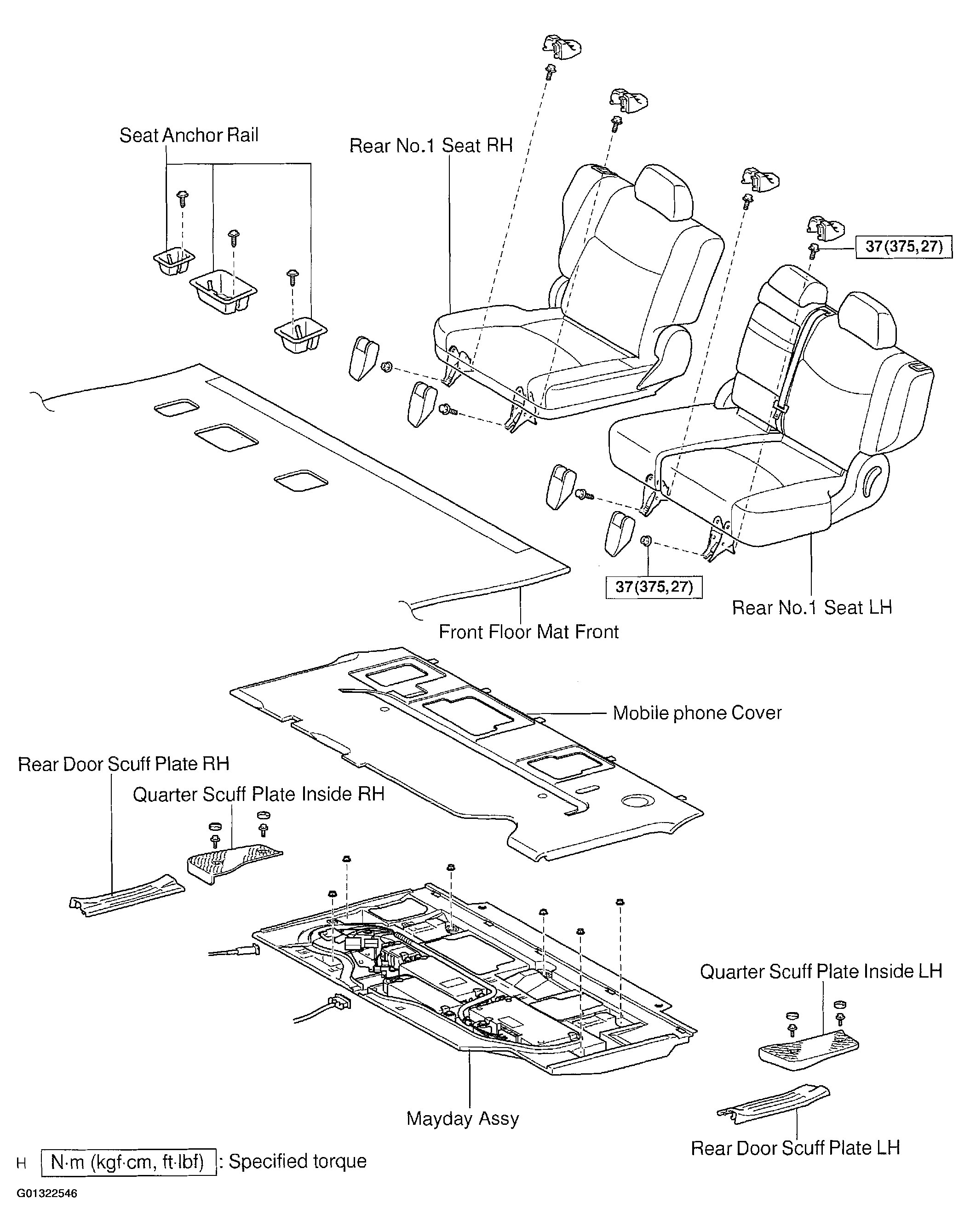

Fig 1: Removing/Installing Mayday Assembly & Related Components (1 Of 2)
G01322546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

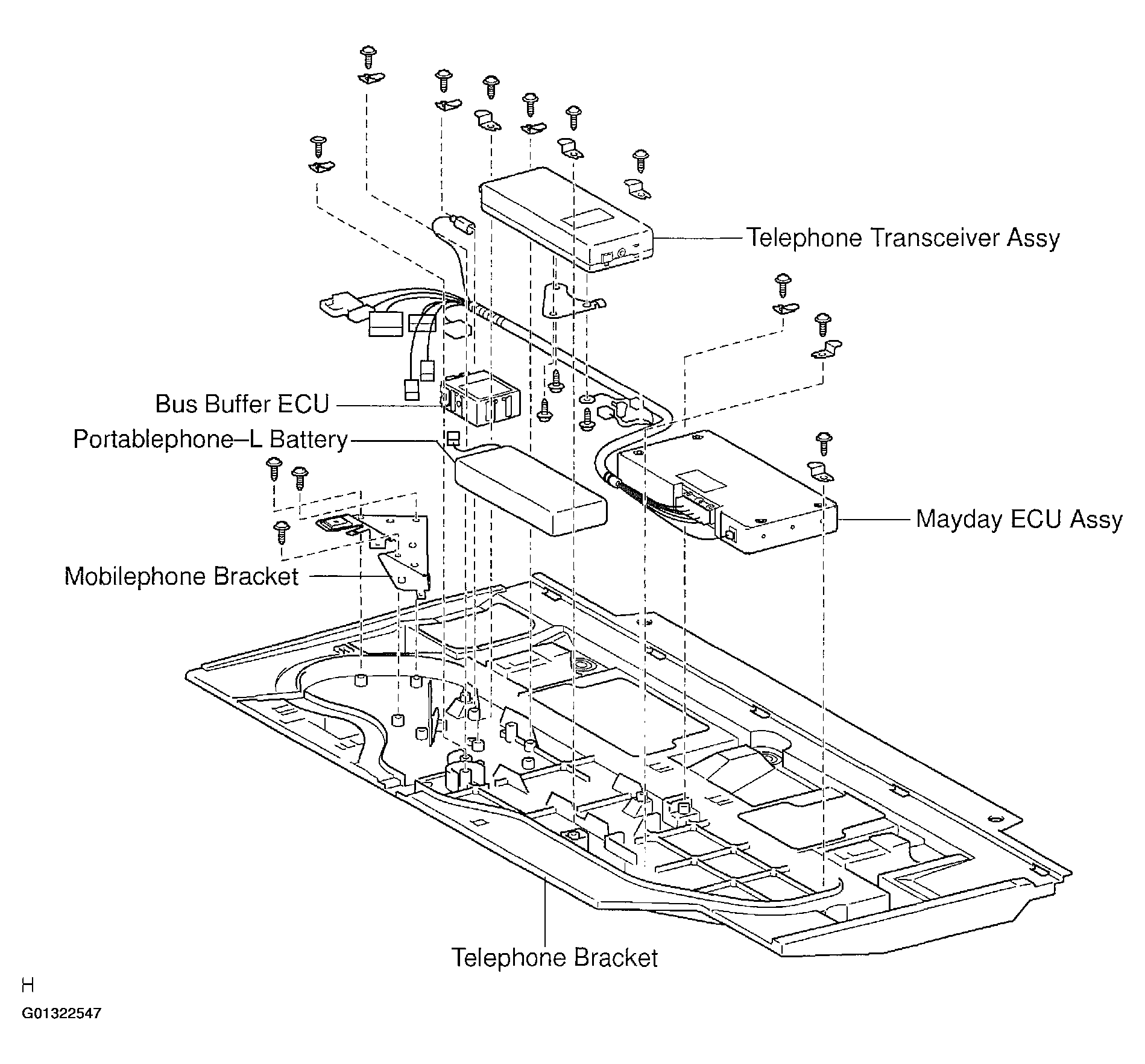

Fig 2: Removing/Installing Mayday Assembly & Related Components (2 Of 2)
G01322547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
