DTC 2 (Two) "Code 2. Button Module Failure": Wiring Diagram

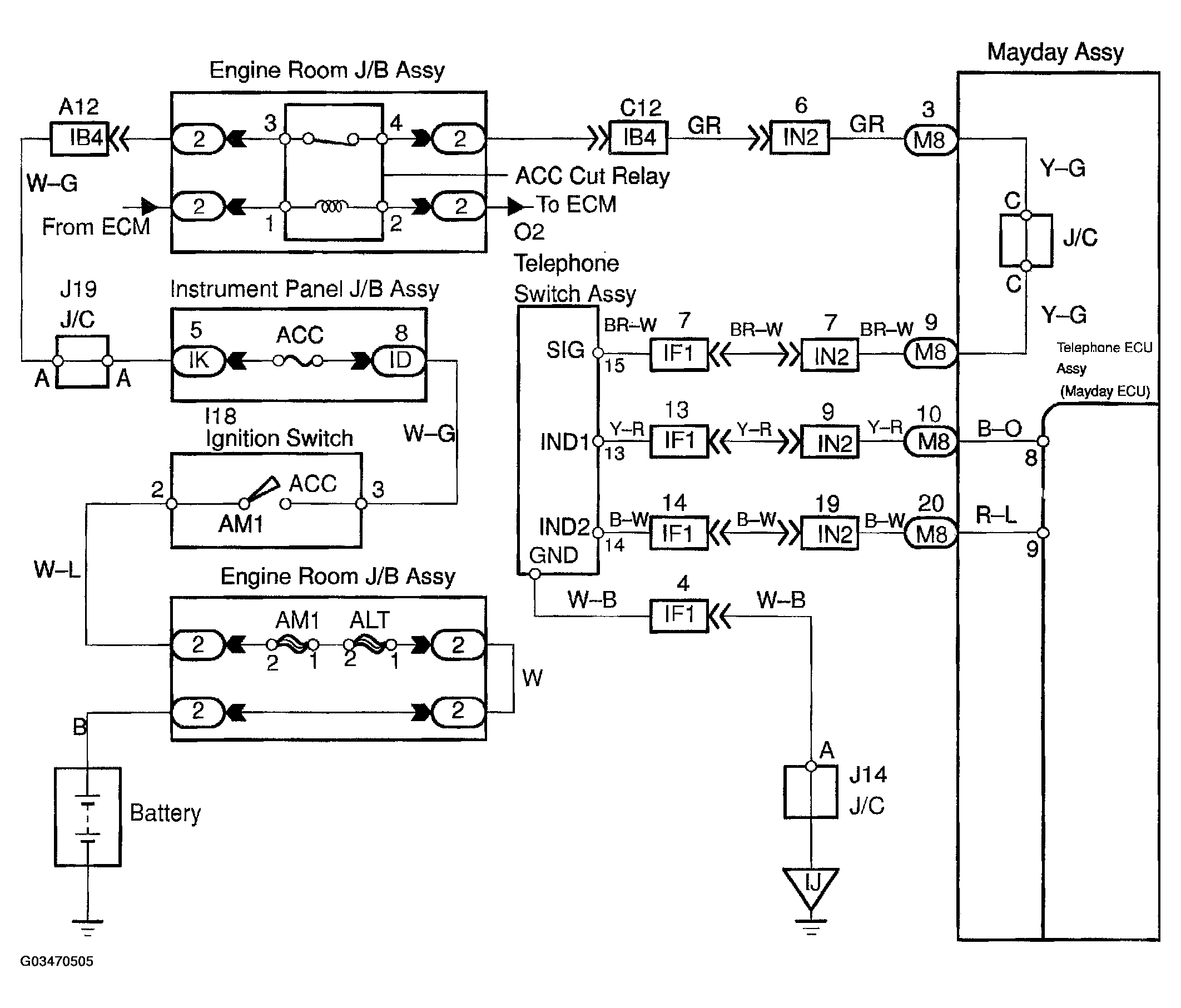

Fig 1: "Code 2. Button Module Failure" Wire Diagram

G03470505

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
