Automatic Transmission - Diagnostics
>>
Parts Location
Parts Location

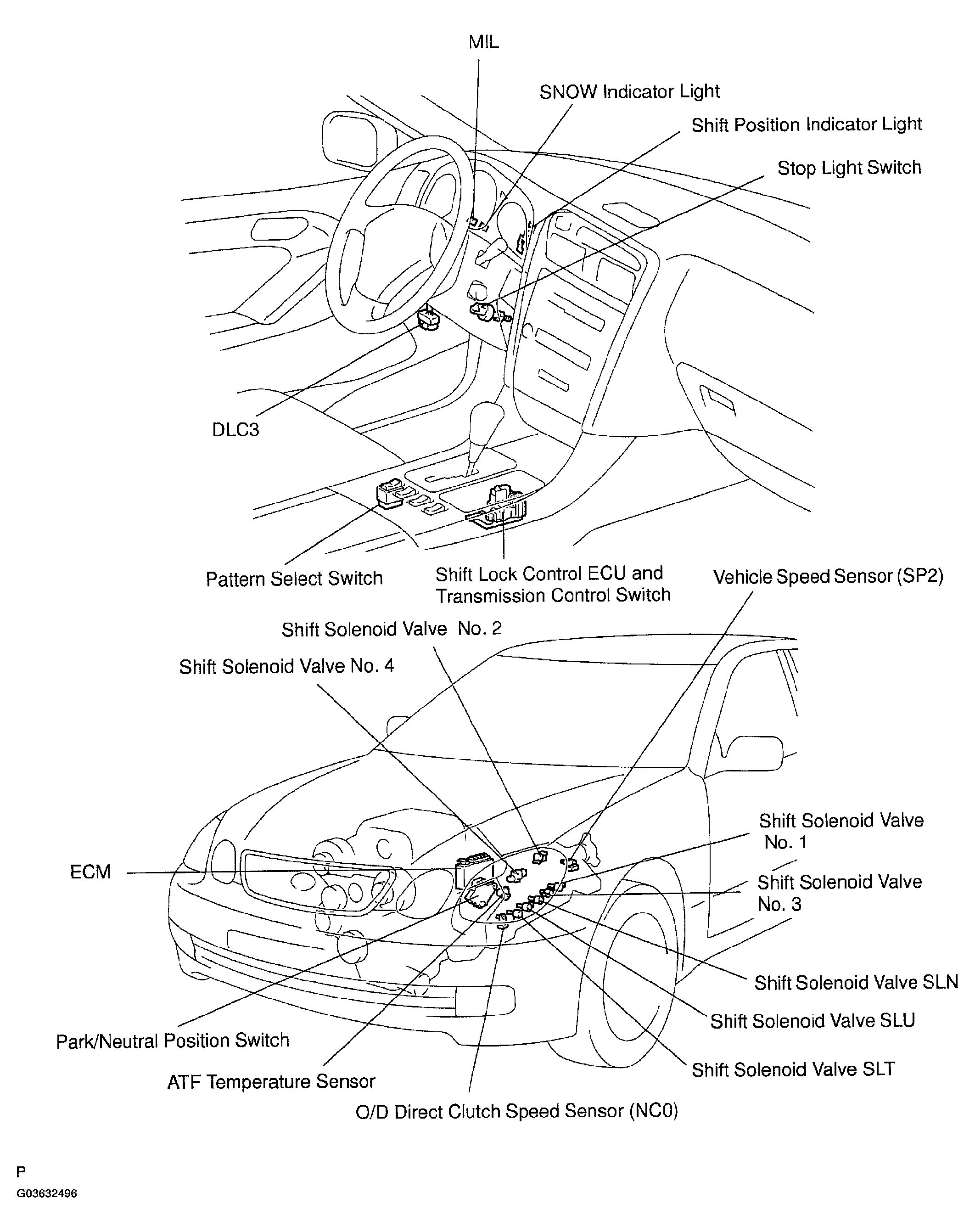

Fig 1: Identifying Automatic Transmission Electrical Components Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
