Repair Procedures

HINT:

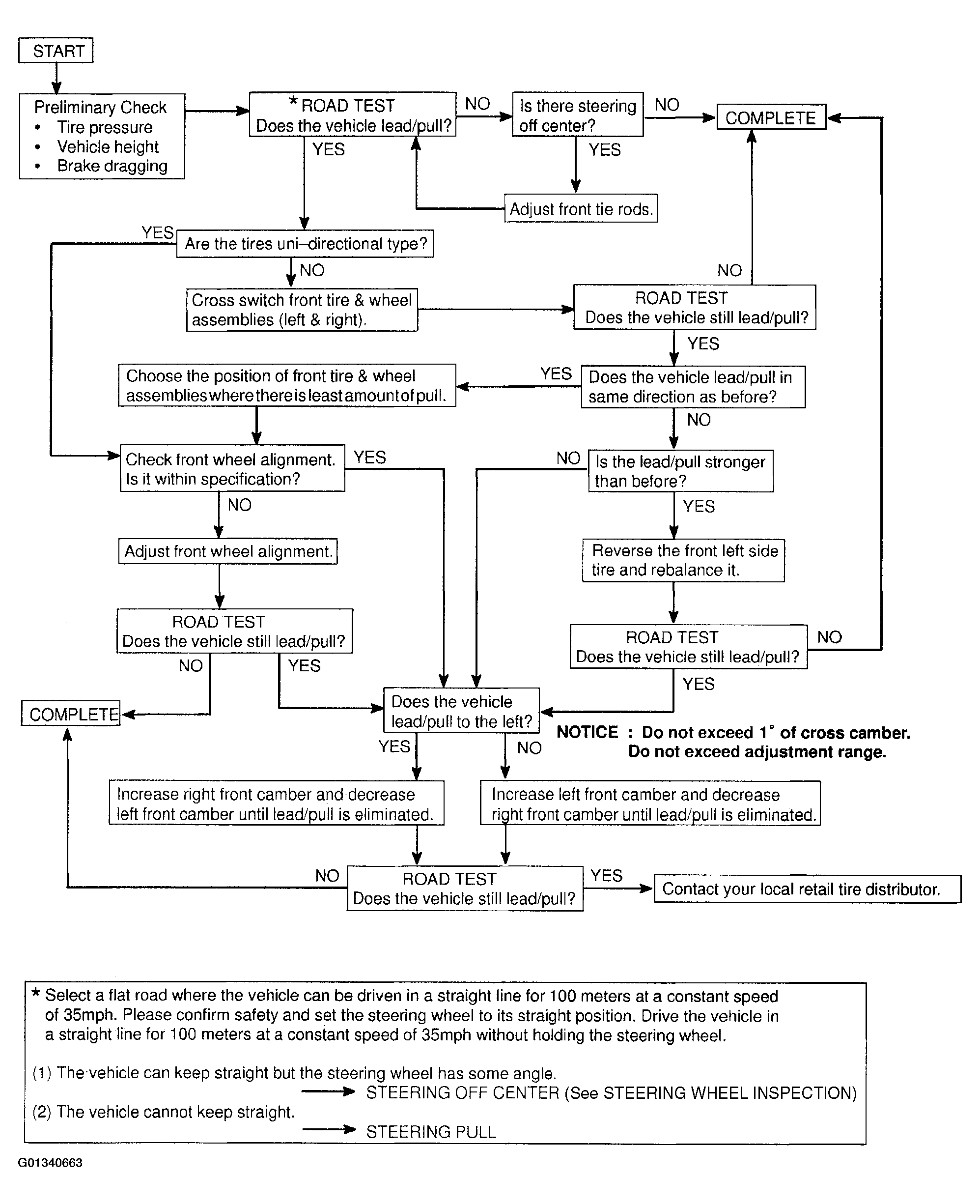

This is a flow chart for vehicle pull.

Fig 1: Suspension Troubleshooting Flow Chart

G01340663

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
