Lower Control Arm: Removal

  1. Remove front wheel. Remove engine undercovers.
  2. Remove bolts and brake caliper. Support brake caliper securely.
  3. Remove disc.
  4. Remove clip and nut. Using Special Tool 09610-20012, disconnect tie rod end from steering knuckle. See Fig 1.
  5. On vehicles with HID type headlight, remove nut and disconnect height control sensor link from shock absorber bracket. See Fig 2.
  6. Remove bolt and nut. Disconnect stabilizer bar link from stabilizer bar. Remove nut and stabilizer bar link See Fig 3.
  7. Remove bolt and nut. Disconnect shock absorber from shock absorber bracket. See Fig 4.
  8. Loosen No. 1 and No. 2 lower control arm set bolts. See Fig 5.
  9. Remove cotter pin and nuts. Using Special Tool 09628-62011, disconnect No. 2 lower control arm from lower ball joint. See Fig 6.
  10. Remove nut, bolts and strut bar bracket. See Fig 7.
  11. Place matchmarks on camber adjusting cam and suspension crossmember. See Fig 8. Remove bolt, nut and lower control arm assembly.
  12. Remove bolt and shock absorber bracket from No. 1 lower control arm. Remove bolts and separate No. 1 and No. 2 lower control arms.
Fig 1: Disconnecting Tie Rod End
G00224627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Disconnecting Height Control Sensor Link
G00224628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

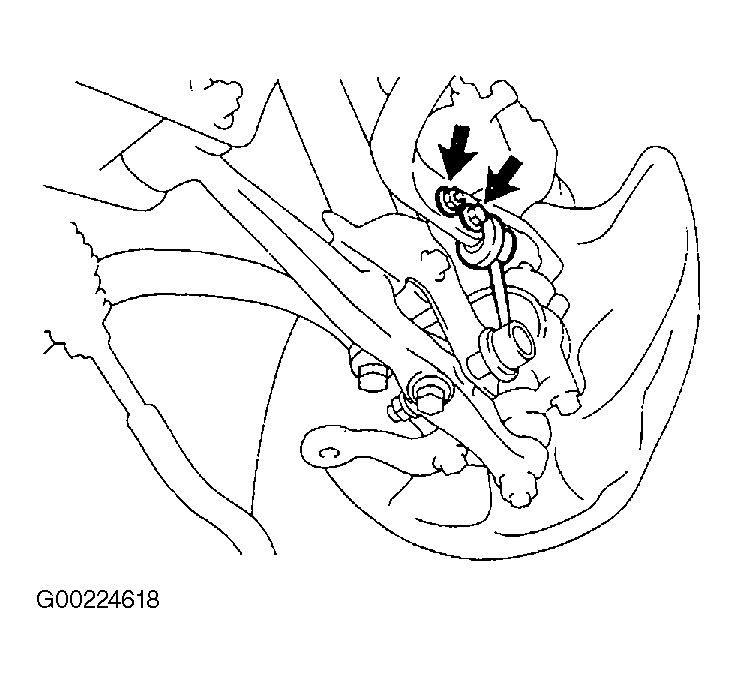

Fig 3: Disconnecting Stabilizer Bar From Stabilizer Bar Link
G00224618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Disconnecting Shock Absorber From Bracket
G00224619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Locating No. 1 & No. 2 Lower Control Arm Set Bolts
G00224629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Disconnecting No. 2 Lower Control Arm
G00224630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Removing Strut Bar Bracket
G00224631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 8: Locating Matchmarks On Camber Adjusting Cam
G00224632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
