Headlight Beam Level Control System

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

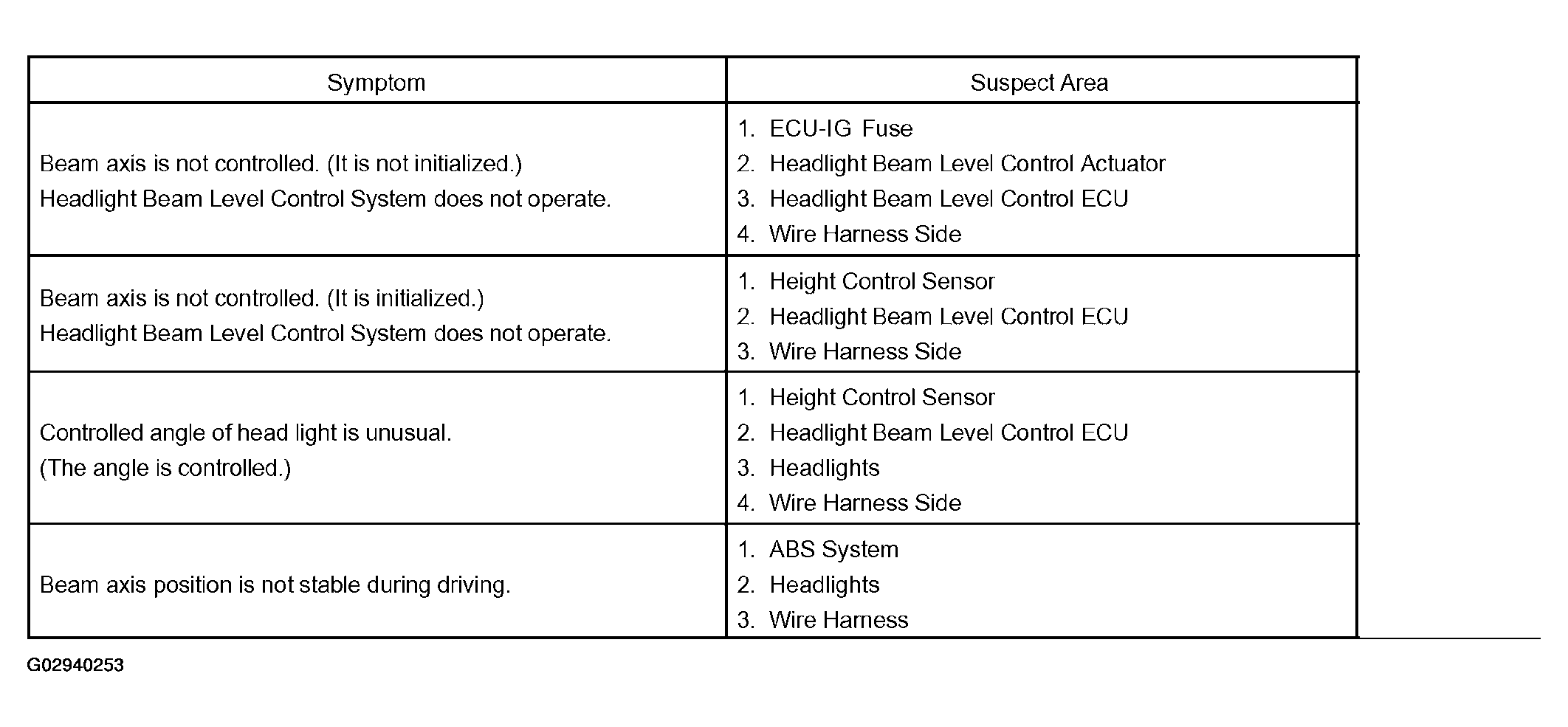

Fig 1: Problem Symptom Table (Head Light Beam Level Control System)
G02940253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
