Section 433 (Propeller Shaft): Components

WARNING: This page is about a different car, the 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

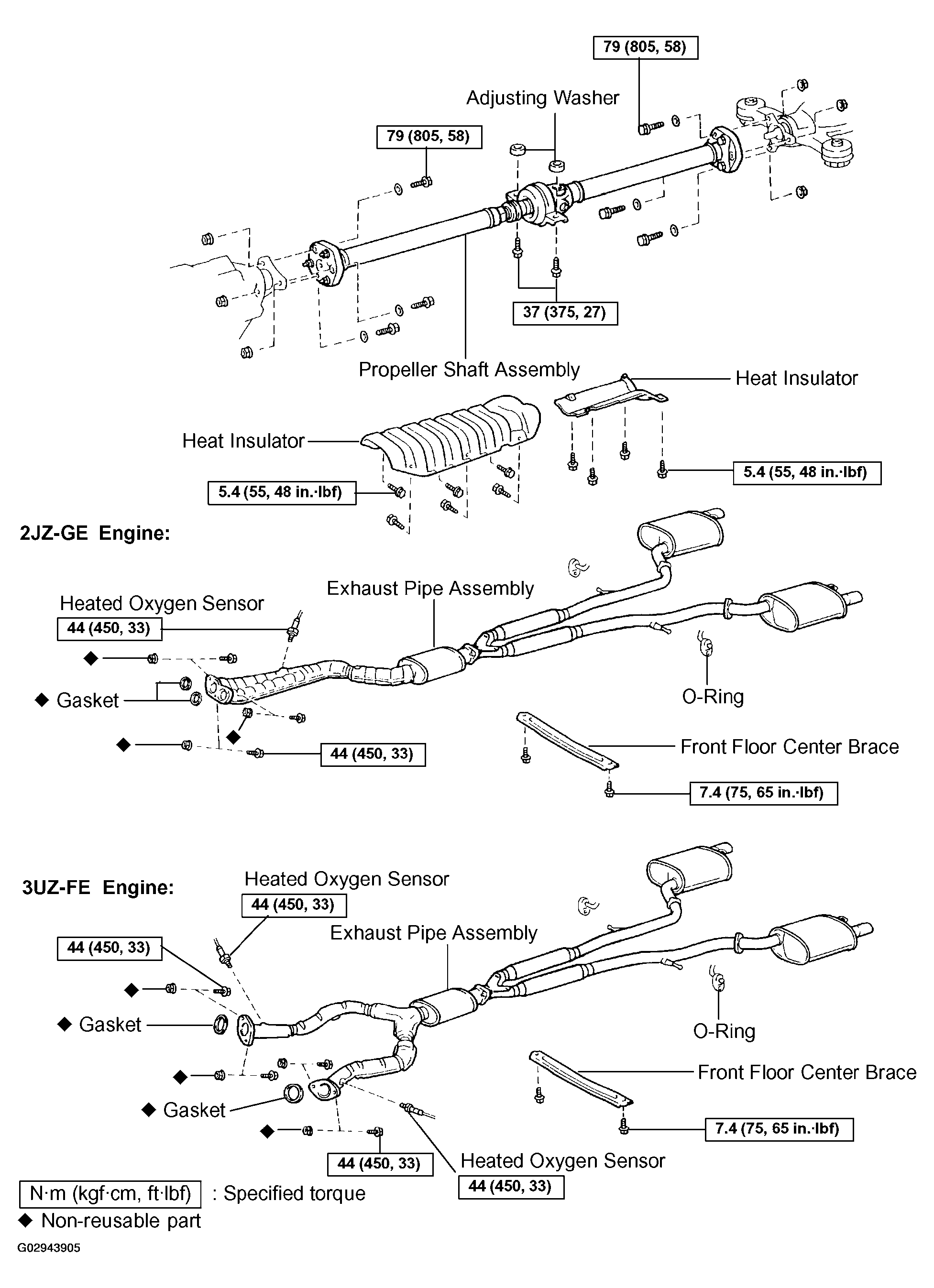

Fig 1: Propeller Shaft Assembly Replacement Components With Torque Specifications (1 Of 2)
G02943905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

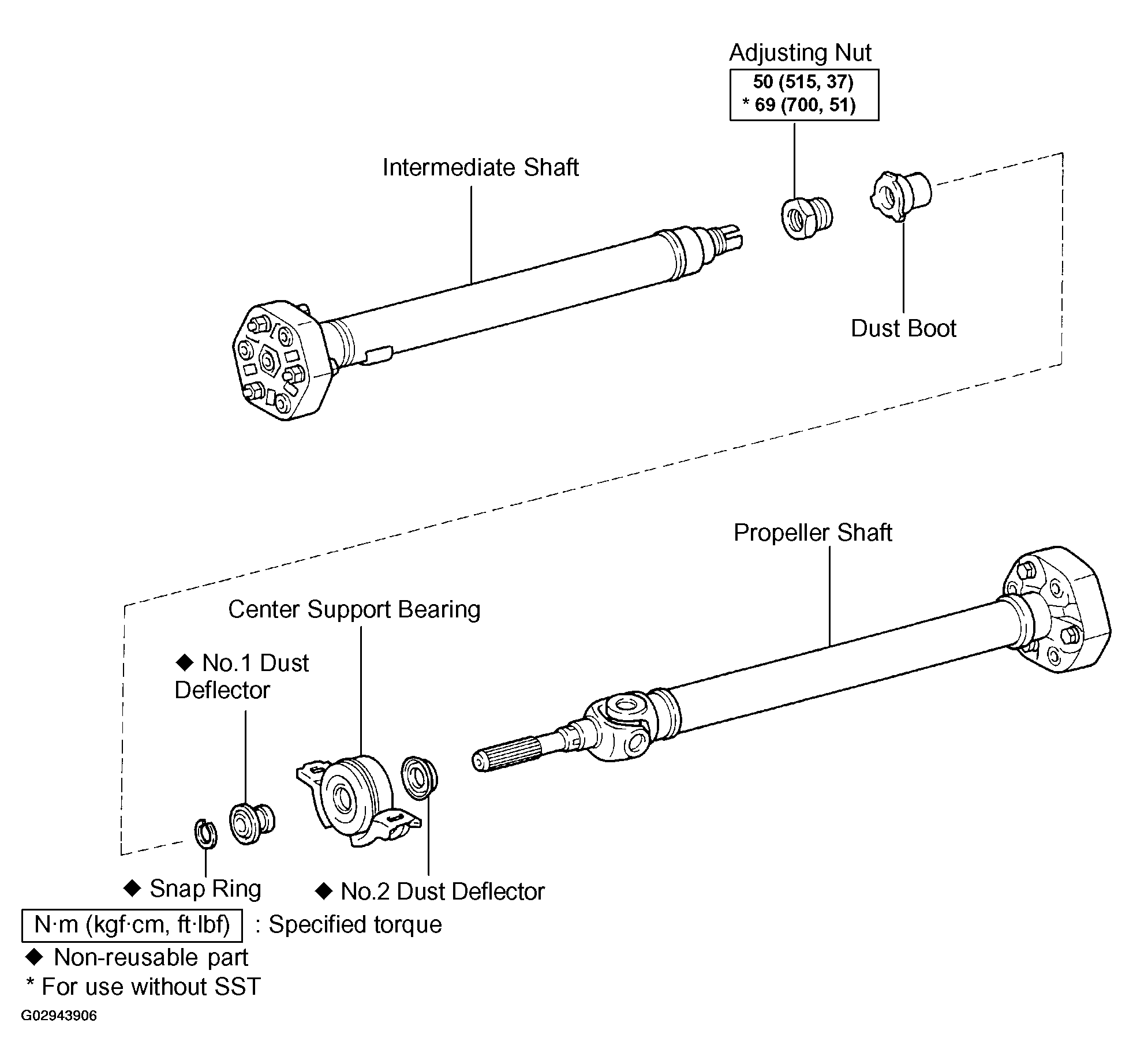

Fig 2: Propeller Shaft Assembly Replacement Components With Torque Specifications (2 Of 2)
G02943906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
