Terminals Of ECM

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

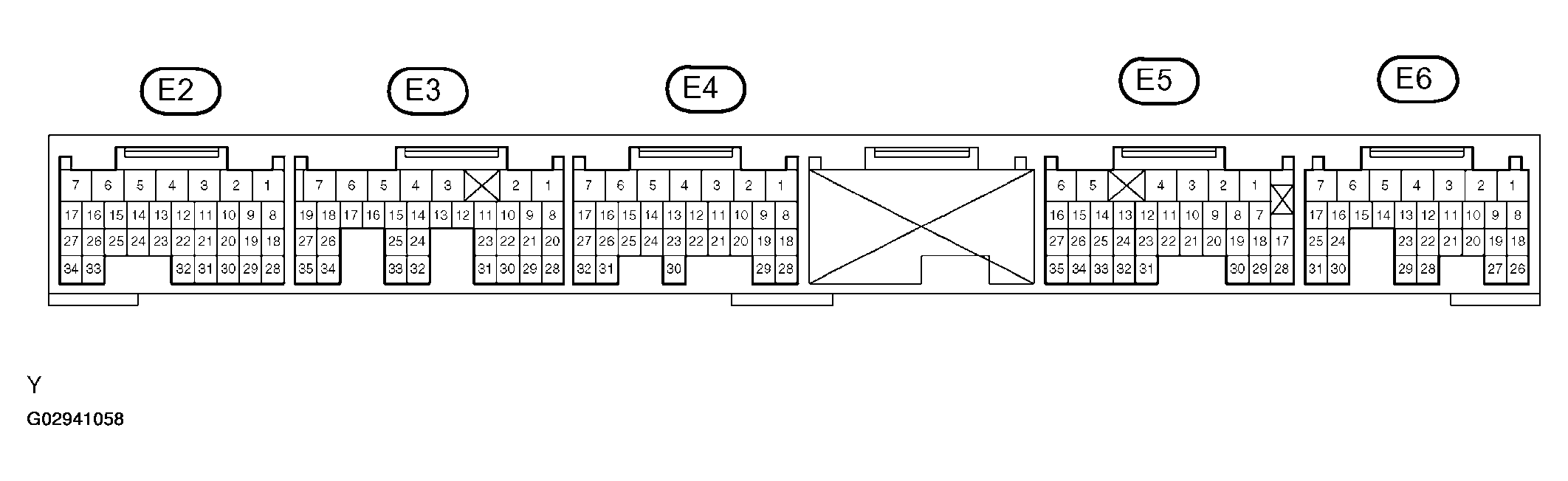

Fig 1: Identifying ECM Connector Terminals
G02941058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

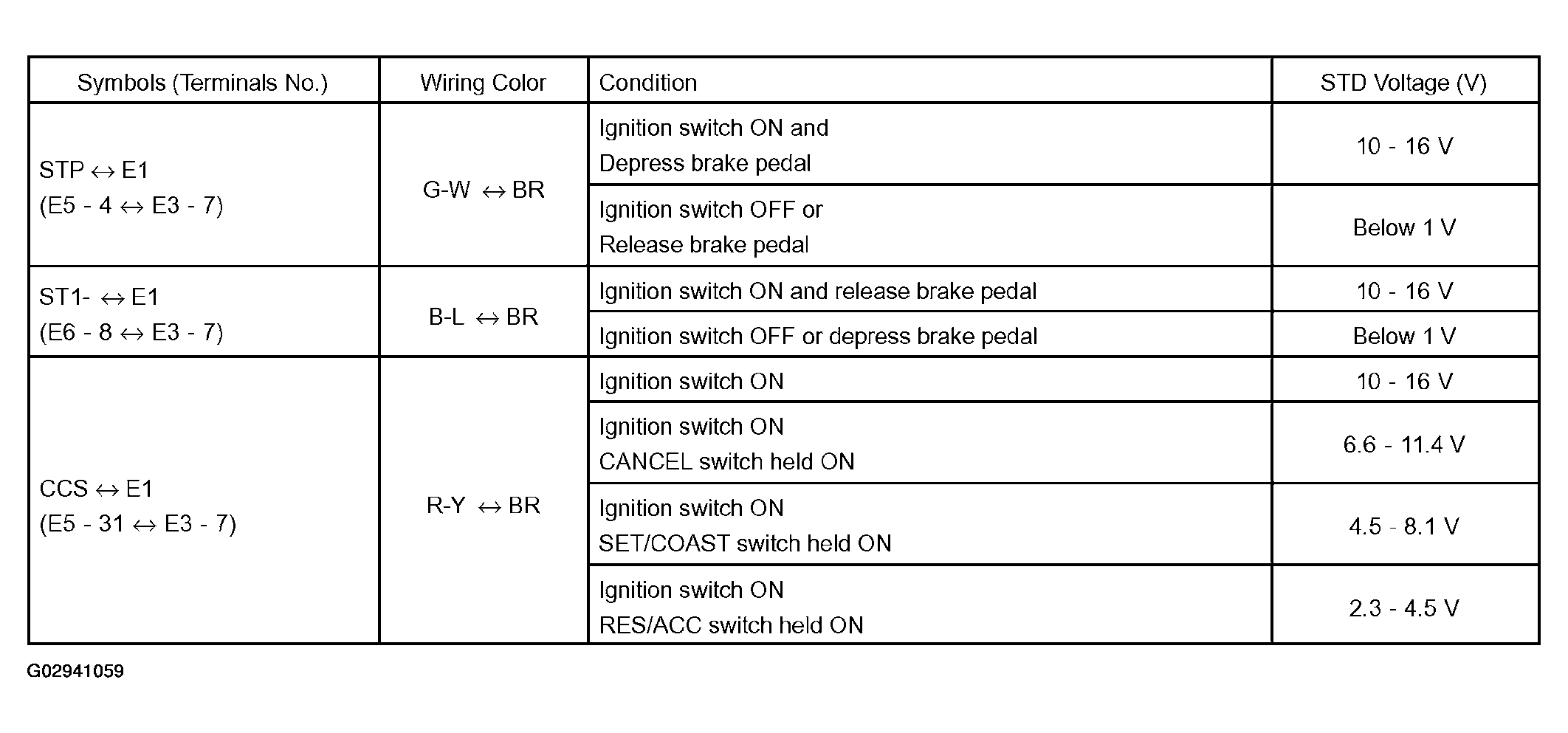

Fig 2: Terminals Specified Condition Table
G02941059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
