Steering Pad Switch LH: Replacement

WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See LOCATION

SEPARATE BATTERY NEGATIVE TERMINAL (See AIR BAG RESTRAINT SYSTEMS )
REMOVE STEERING WHEEL COVER LOWER NO. 2 (See AIR BAG RESTRAINT SYSTEMS )
REMOVE STEERING WHEEL COVER LOWER NO. 3 (See AIR BAG RESTRAINT SYSTEMS )
REMOVE HORN BUTTON ASSY (See AIR BAG RESTRAINT SYSTEMS )
REMOVE STEERING PAD SWITCH LH (W/O STEERING PAD SWITCH RH)
1. Disconnect the connector.
2. Disconnect the connector of cruise control main switch.
3. Remove the screw.

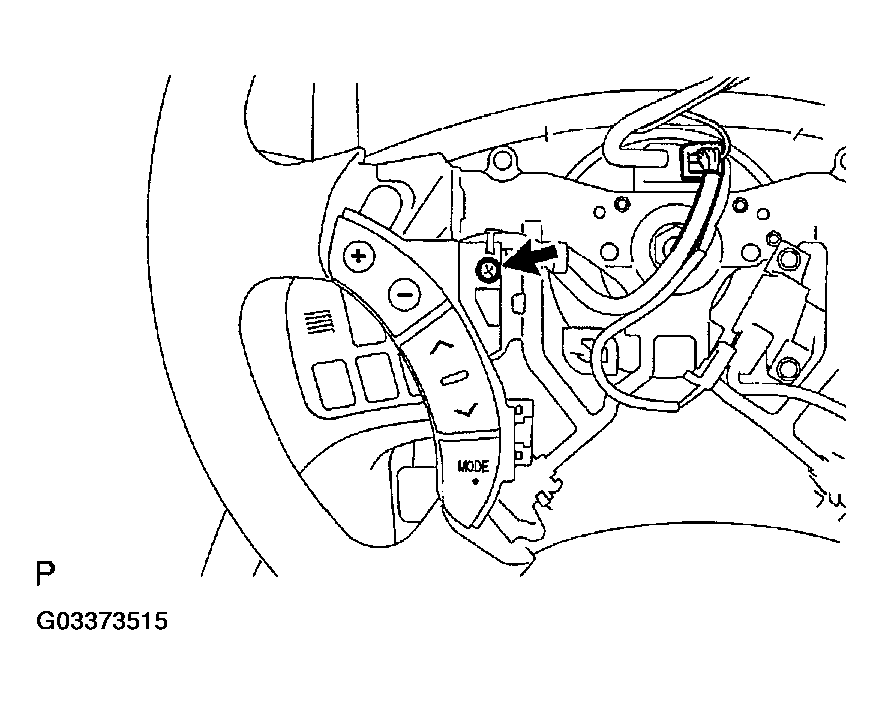

  Fig 1: Removing Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disengage the meshing of 2 pins and remove the steering pad switch LH.

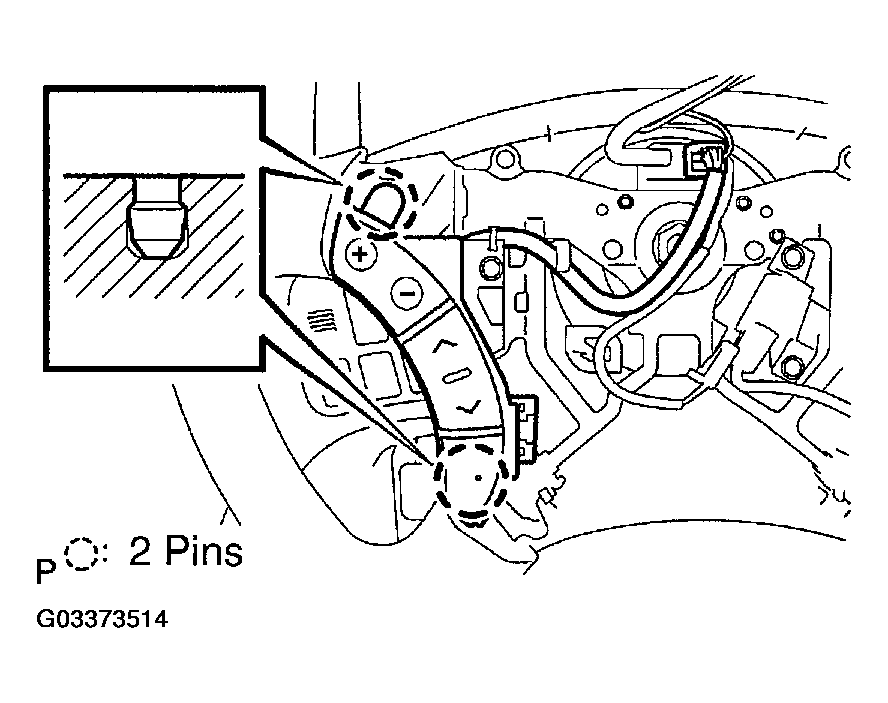

  Fig 2: Disengaging Meshing Of Pins
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STEERING PAD SWITCH LH (W/ STEERING PAD SWITCH RH)
1. Disconnect the connector.
2. Disconnect the connector of cruise control main switch.
3. Remove the screw.

  Fig 3: Removing Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the clamp.
5. Disengage the meshing of 2 pins and release the steering pad switch LH from steering wheel.

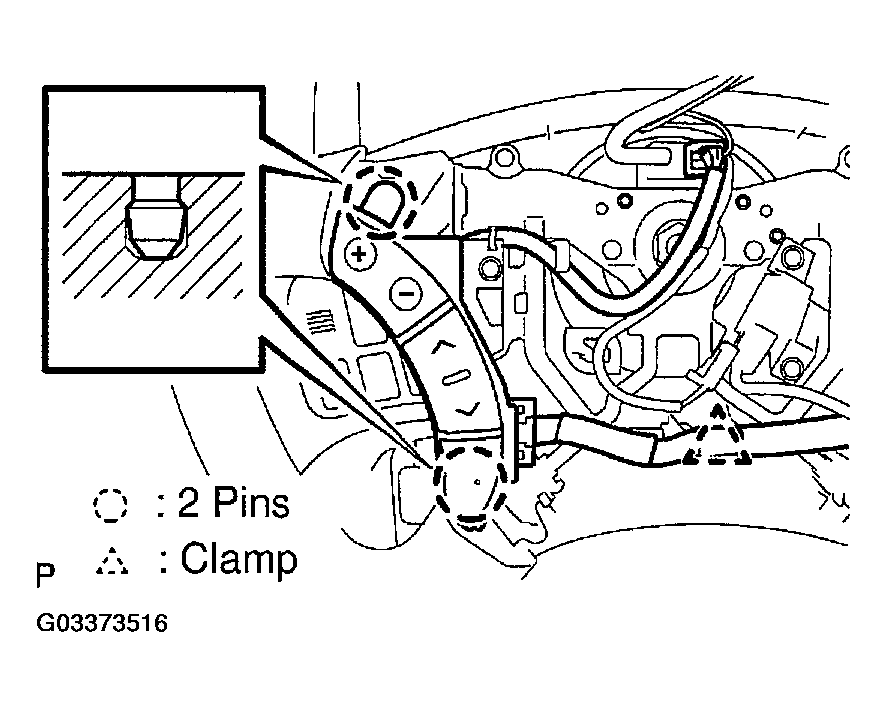

  Fig 4: Disengaging Meshing Of Pins
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Release the tab of steering pad switch cable from steering pad switch LH shown in Fig 5 .

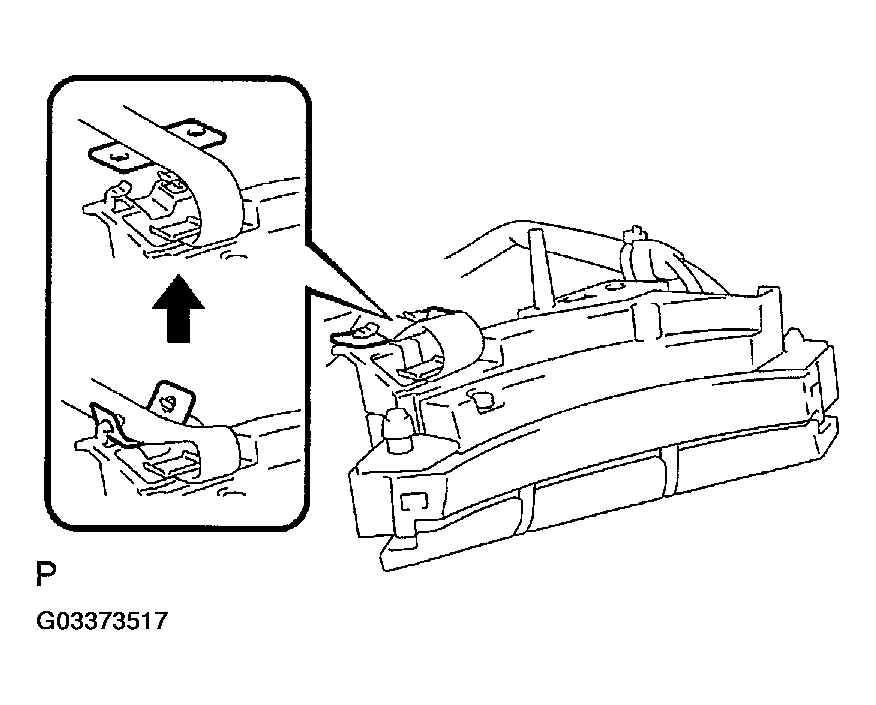

  Fig 5: Releasing Tab Of Steering Pad Switch Cable From Steering Pad Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Disengage the 2 claws as shown in Fig 6 and open the latch on the top of the connector.

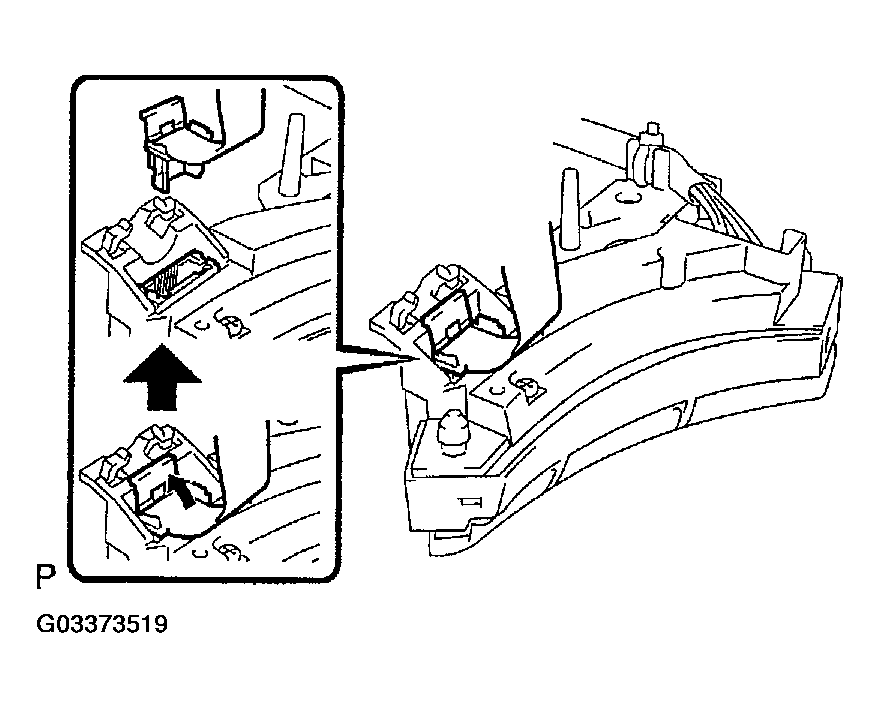

  Fig 6: Disengaging Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Pull out of the connector while pinching the latch with fingers and disconnect the steering pad switch cable from the steering pad switch LH.

  Fig 7: Pulling Out Of Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HORN BUTTON ASSY (See AIR BAG RESTRAINT SYSTEMS )
INSPECT HORN BUTTON ASSY (See AIR BAG RESTRAINT SYSTEMS )
INSPECT SRS WARNING LIGHT (See )
