Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Lexus GS 430 and 2004 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

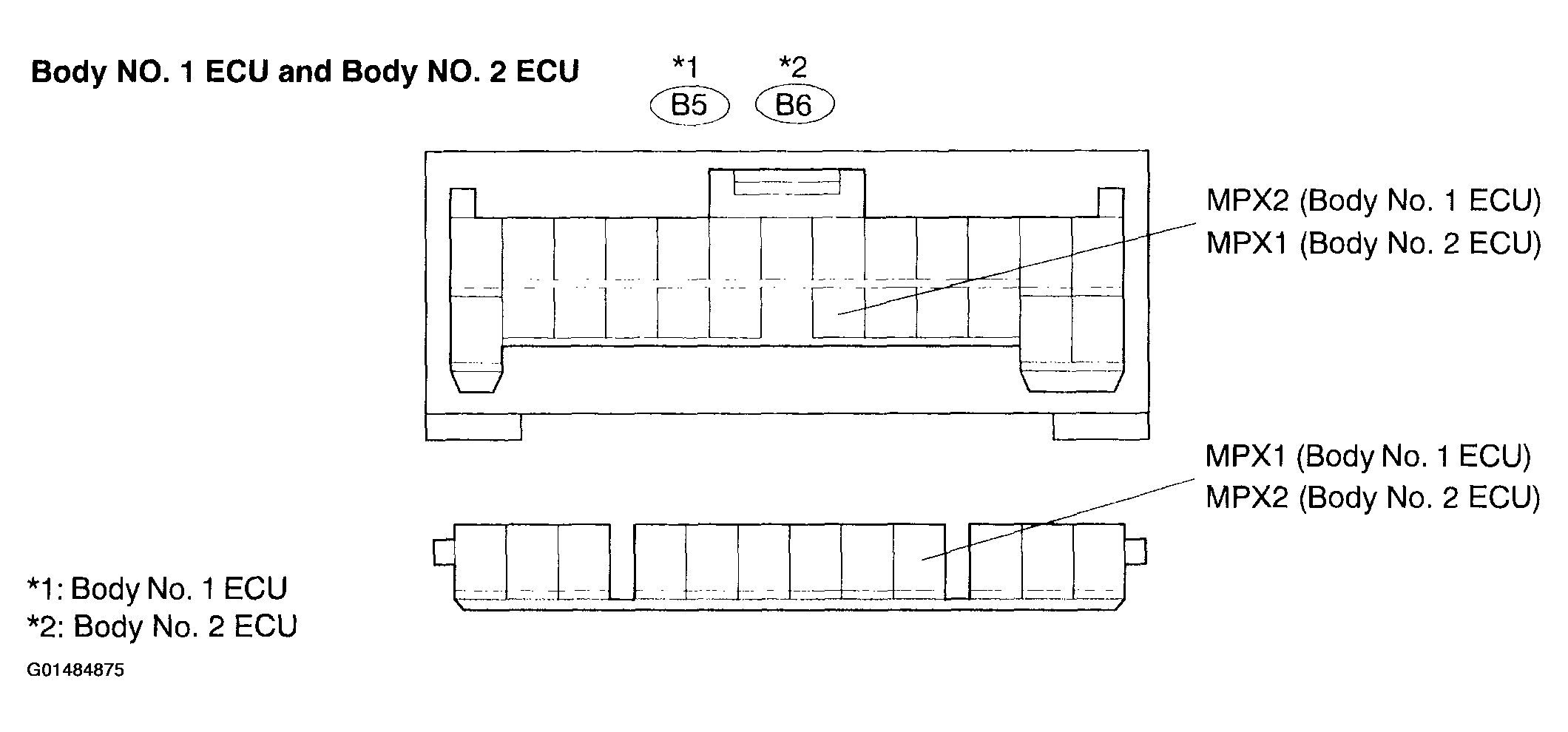

Fig 1: Identifying Body No 1 ECU And Body No 2 ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

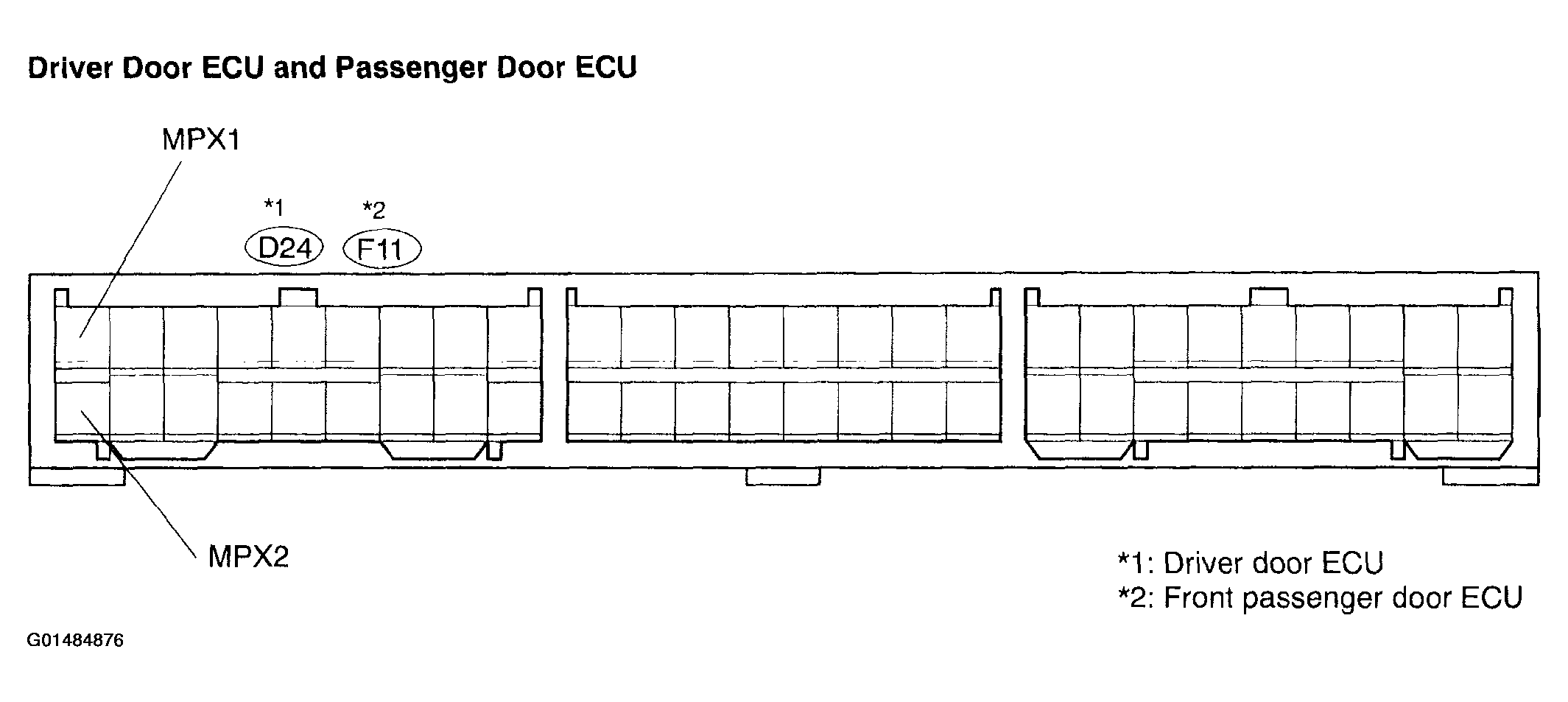

Fig 2: Identifying Driver Door ECU And Passenger Door ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

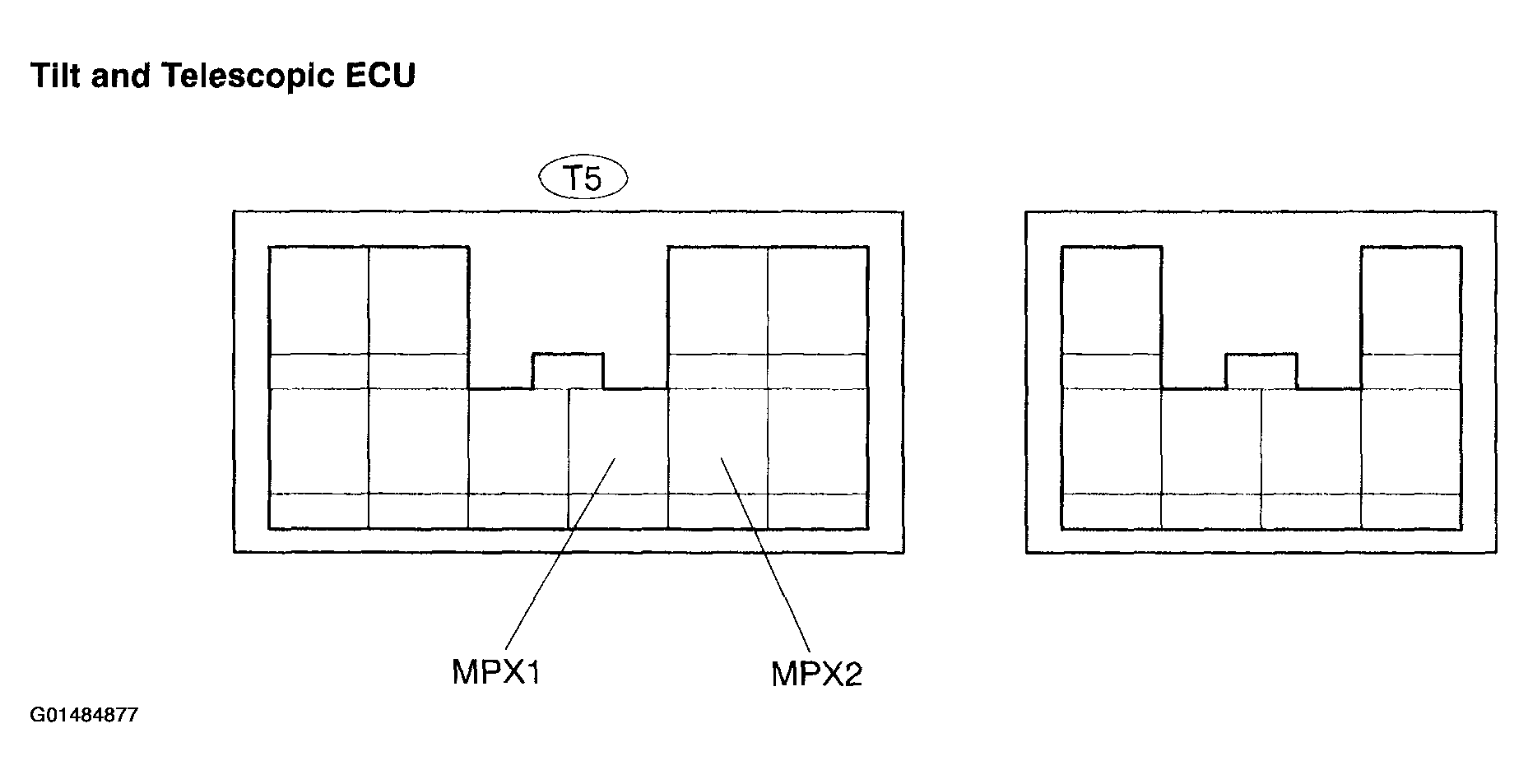

Fig 3: Identifying Tilt And Telescopic ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

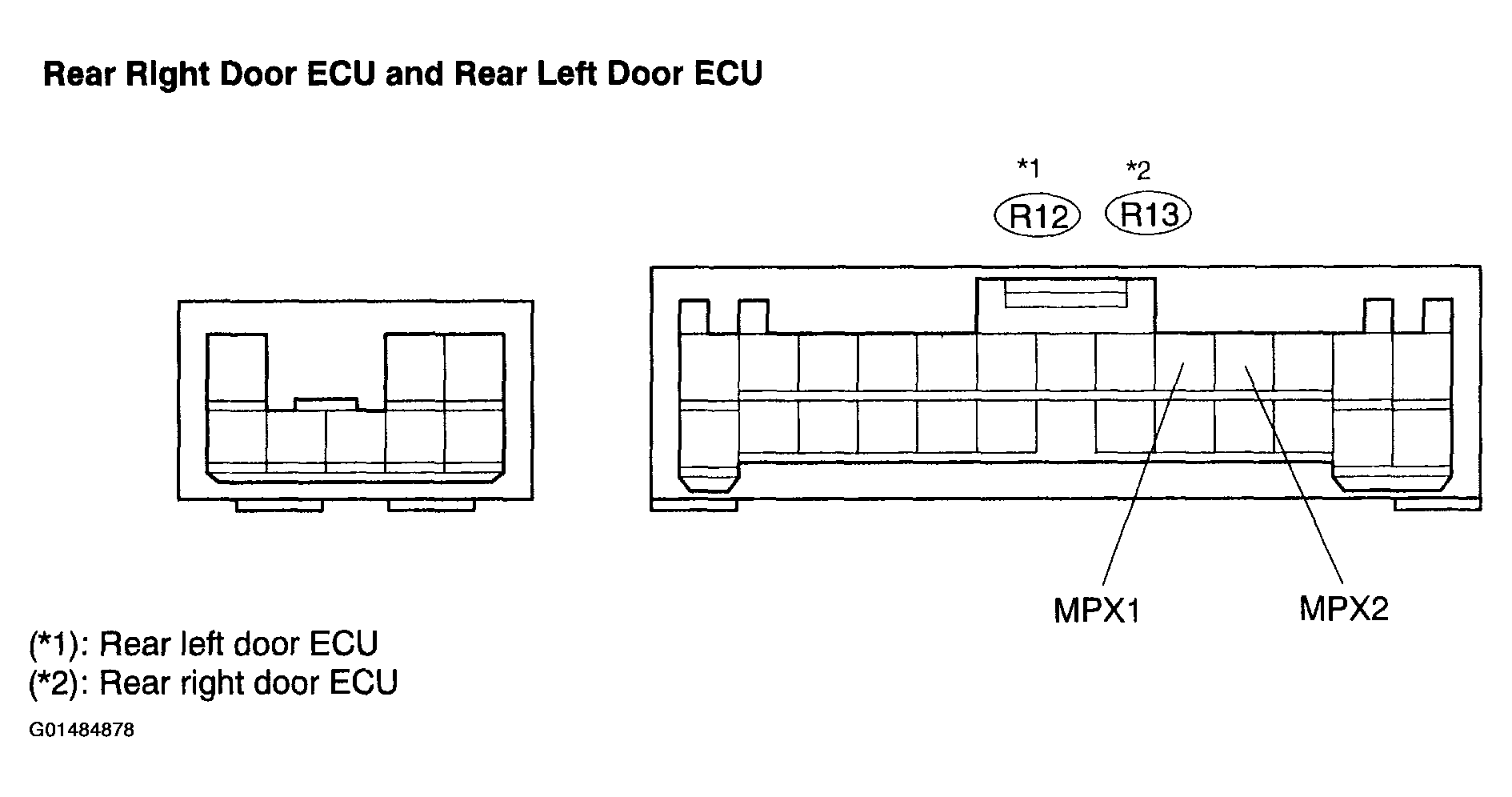

Fig 4: Identifying Rear Right Door ECU And Rear Left Door ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

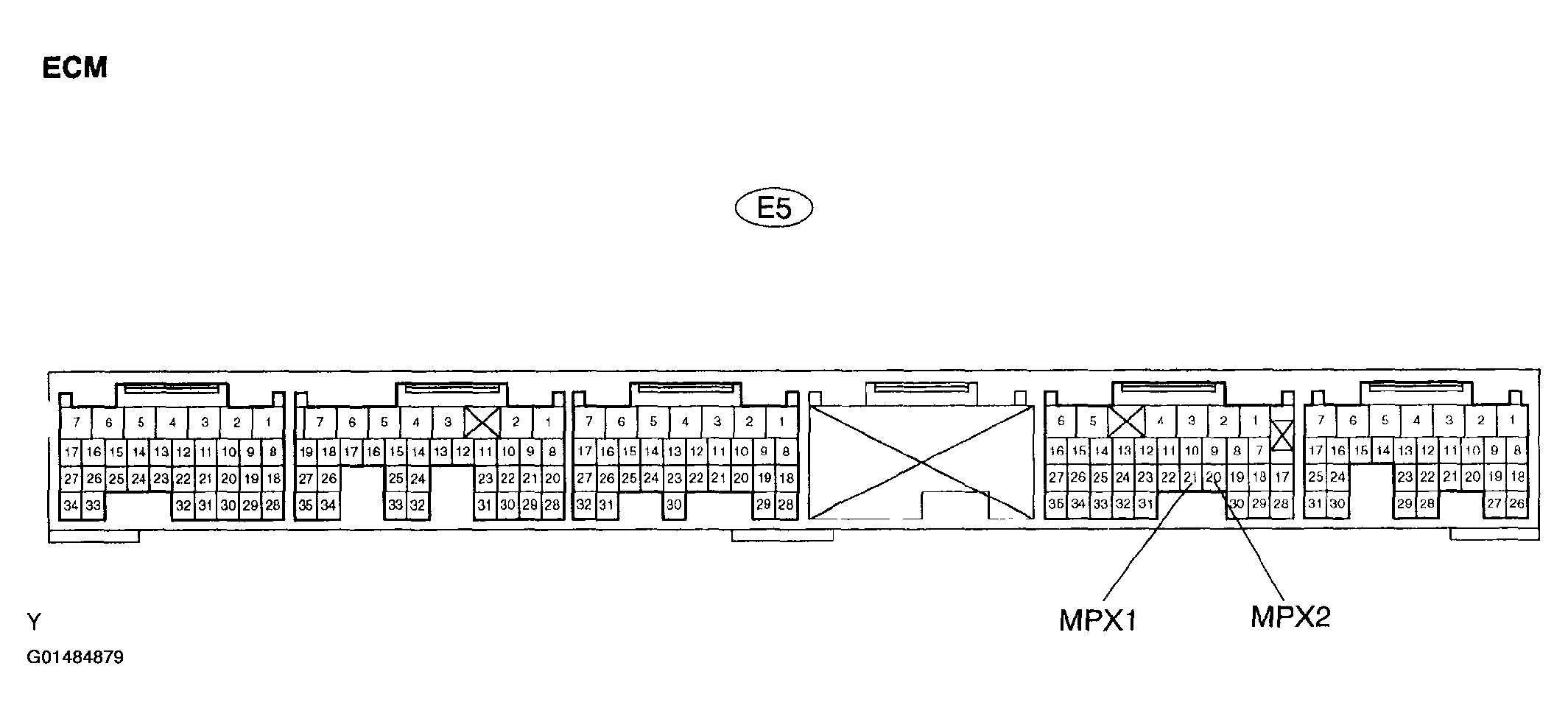

Fig 5: Identifying ECM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

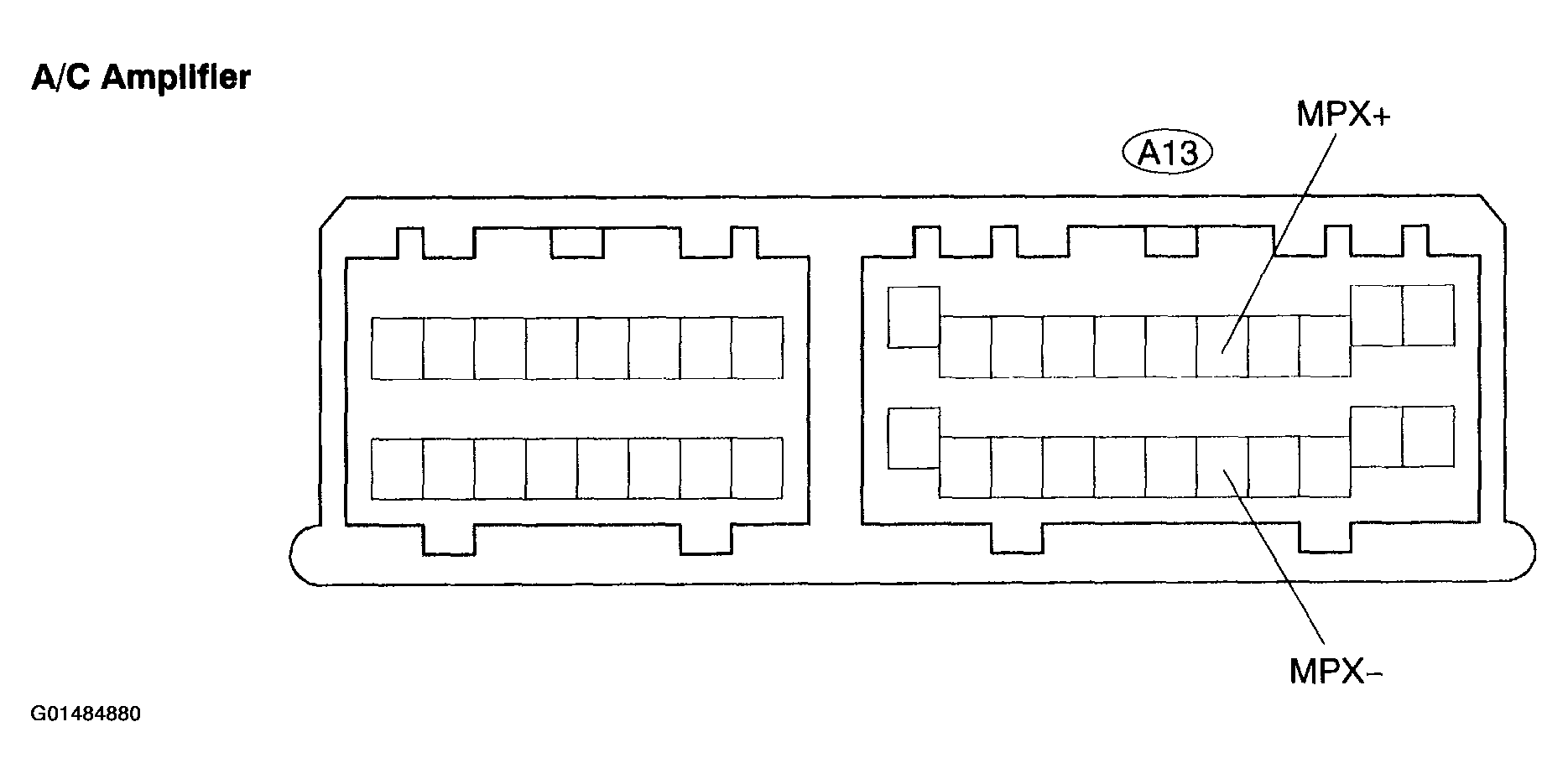

Fig 6: Identifying A/C Amplifier

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

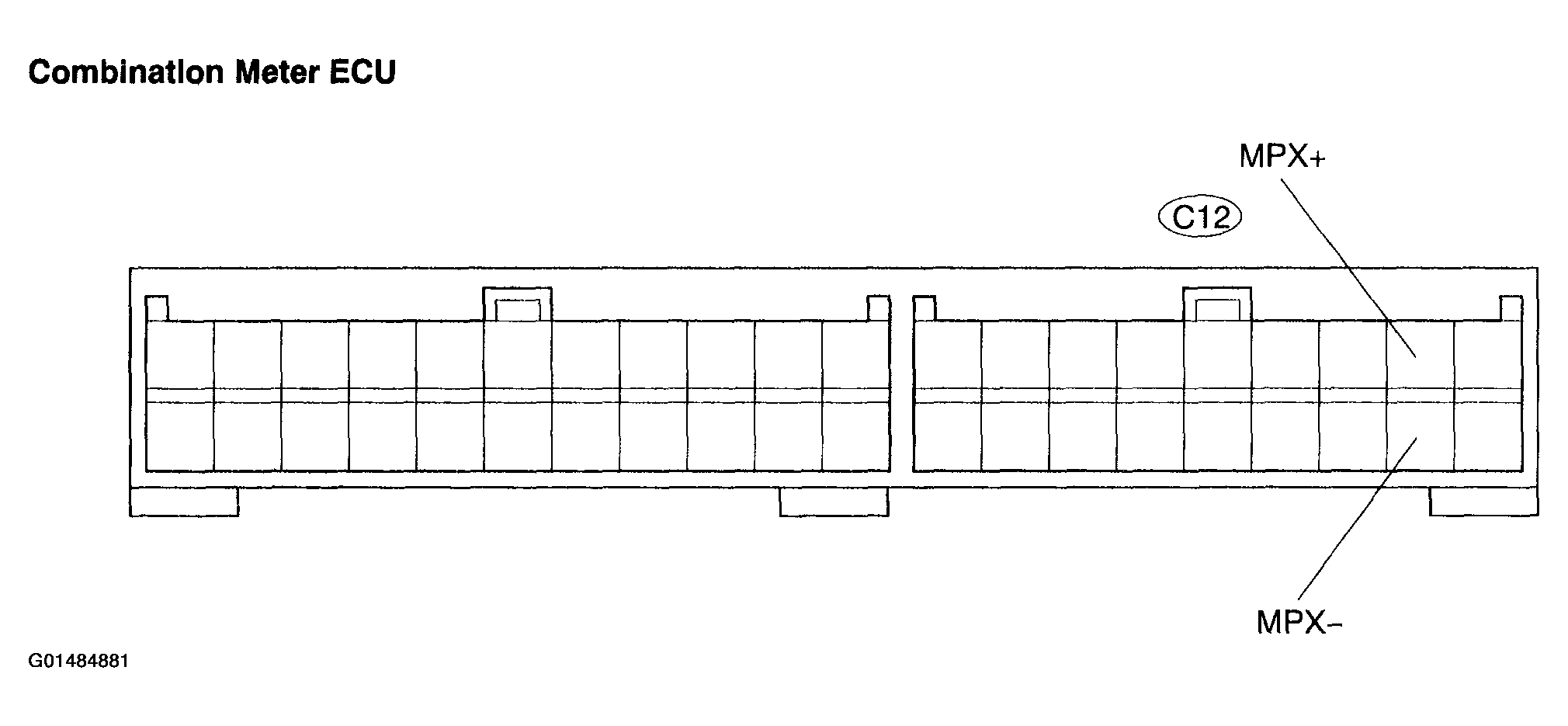

Fig 7: Identifying Combination Meter ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

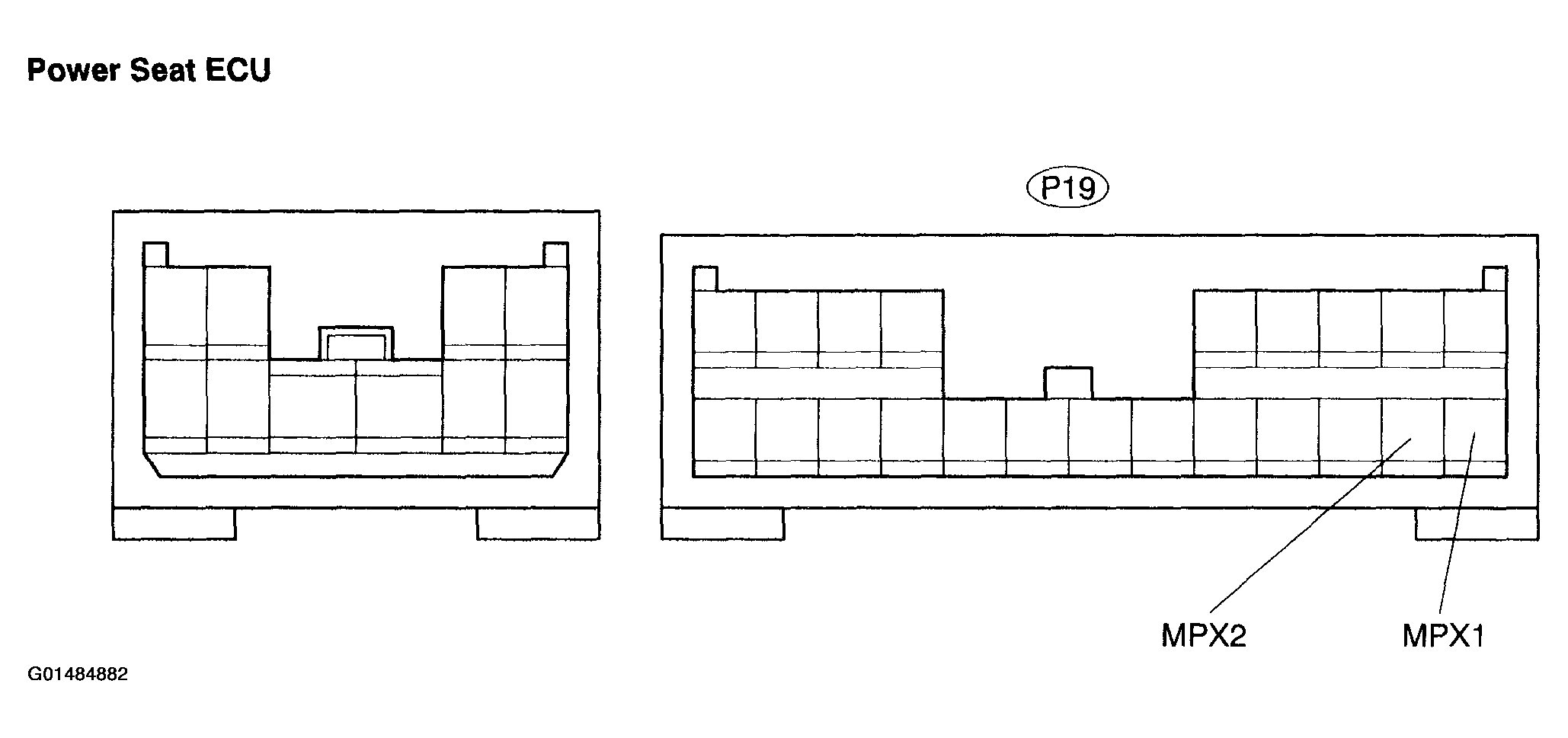

Fig 8: Identifying Power Seat ECU

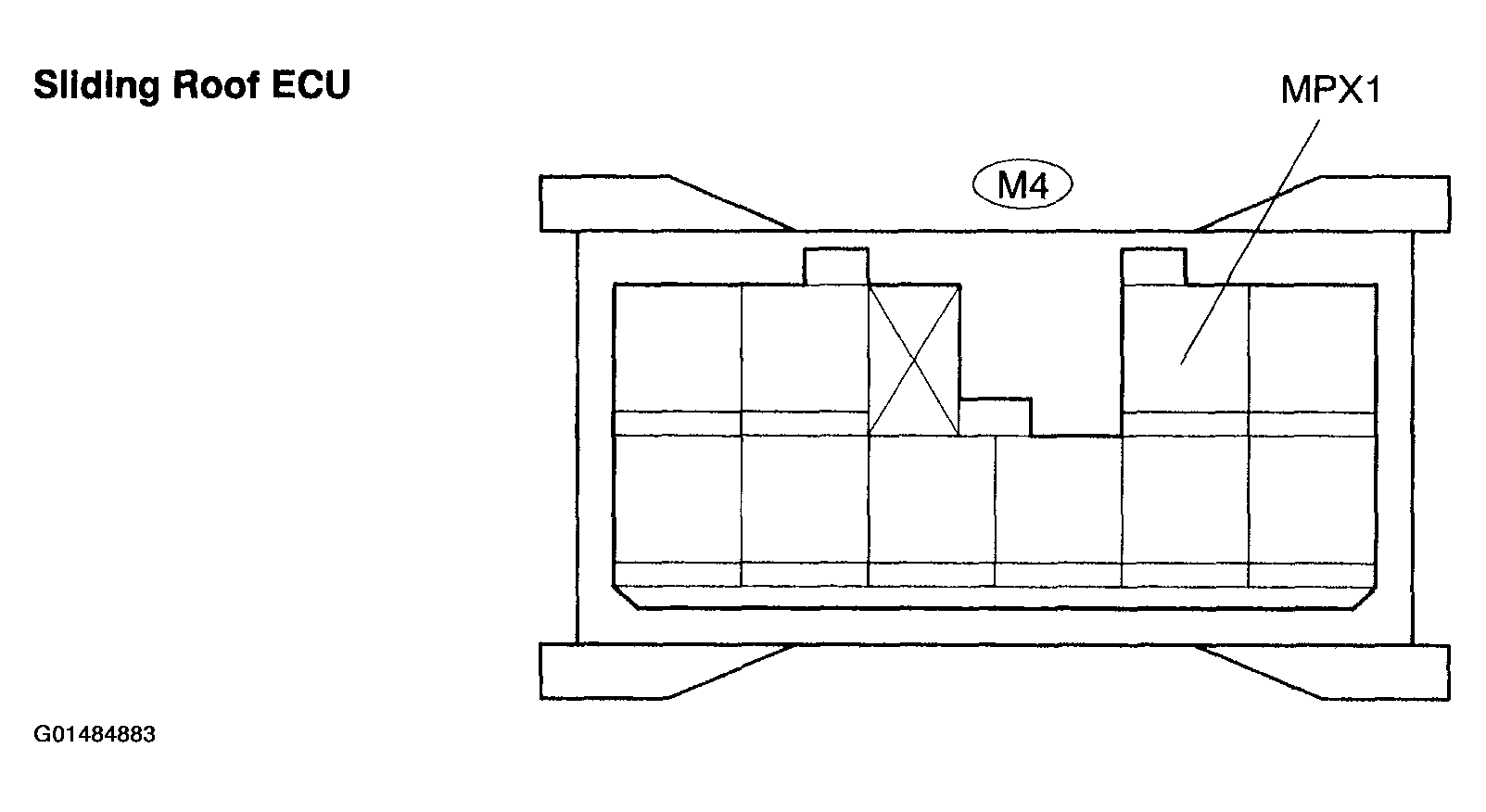

Fig 9: Identifying Sliding Roof ECU

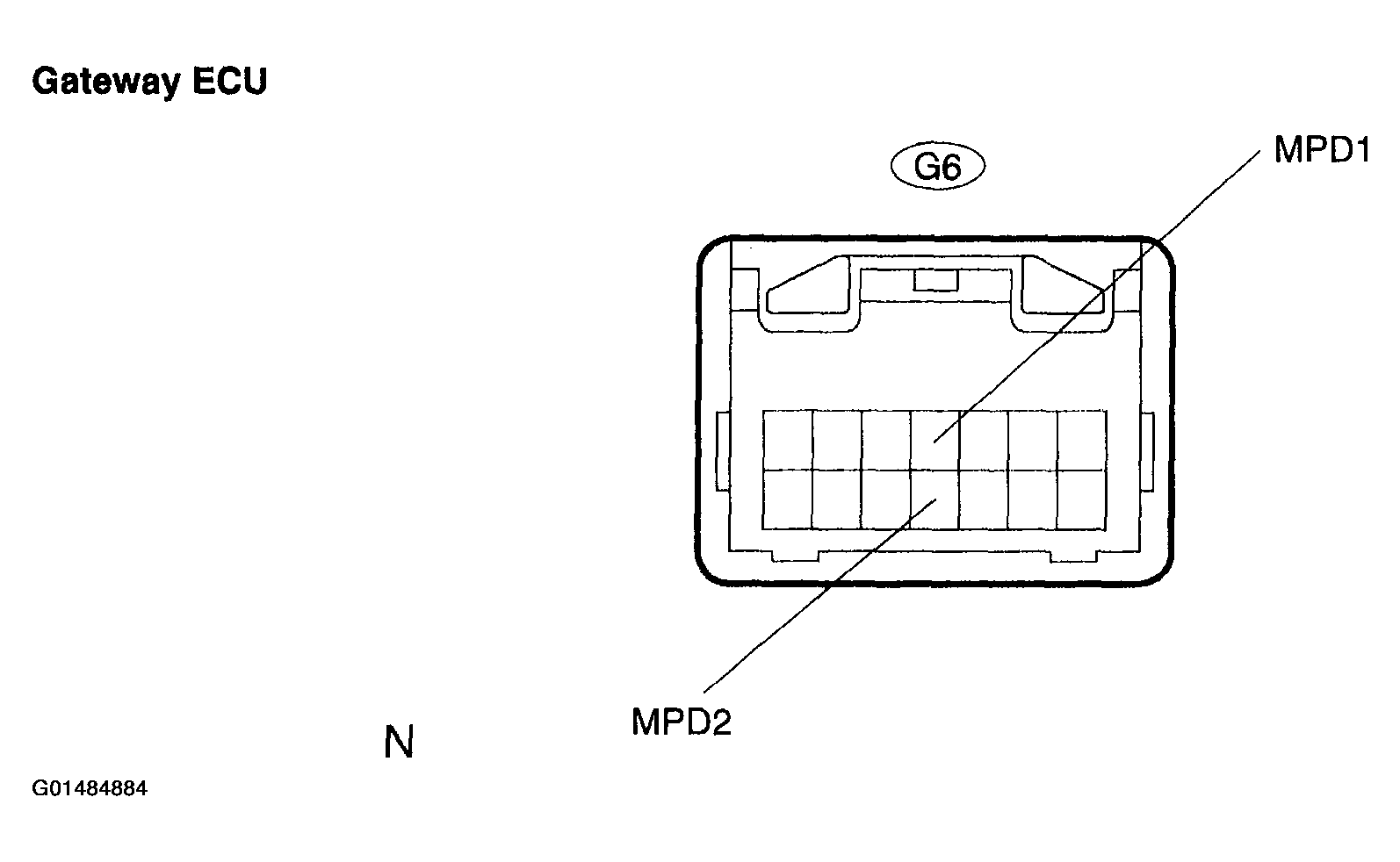

Fig 10: Identifying Gateway ECU

Fig 11: Identifying Steering Pad Switch

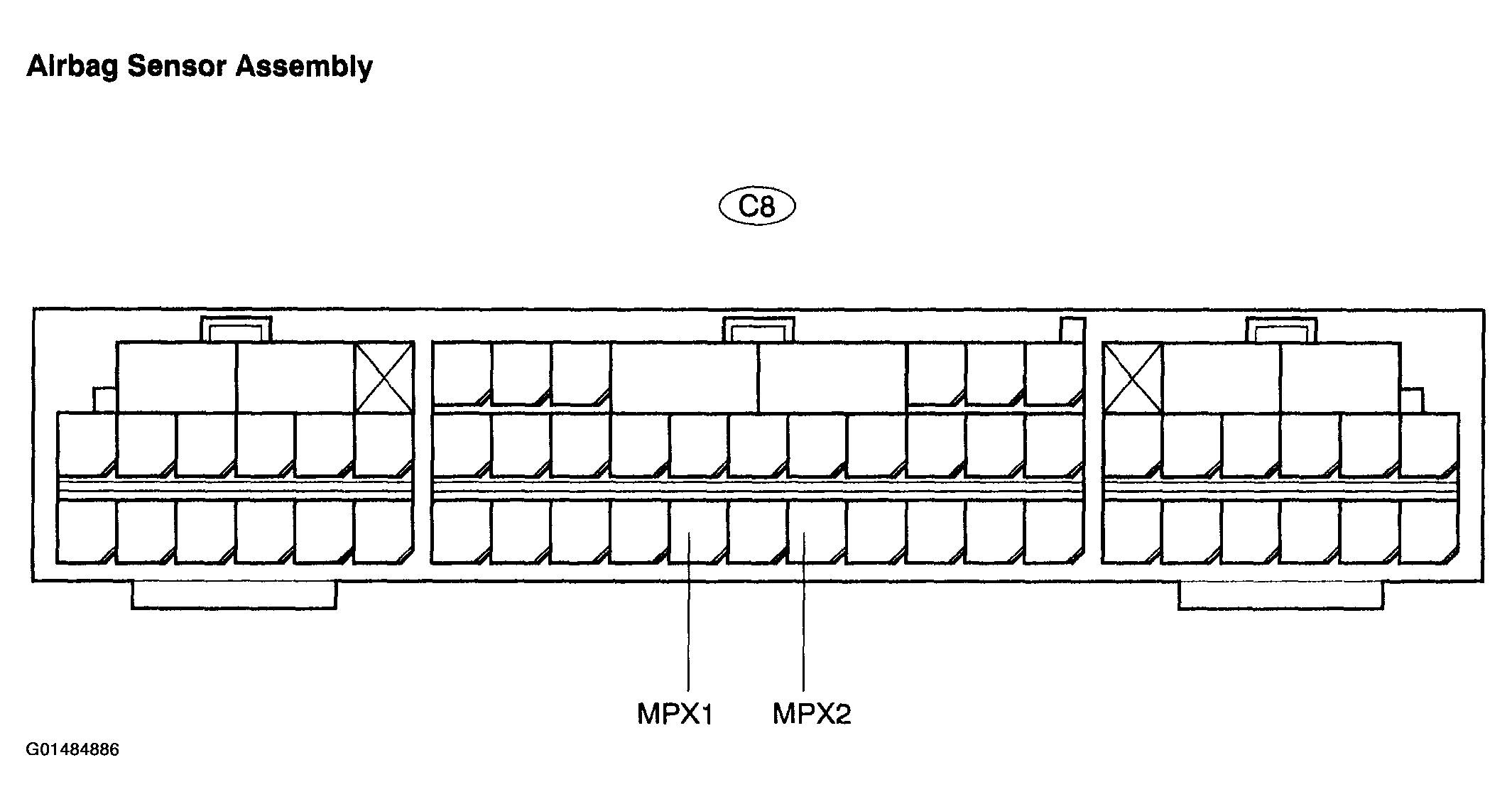

Fig 12: Identifying Airbag Sensor Assembly
