Home >> Lexus >> 2003 >> GS 430 >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat Heater System >> Location

Seat Heater System: Location

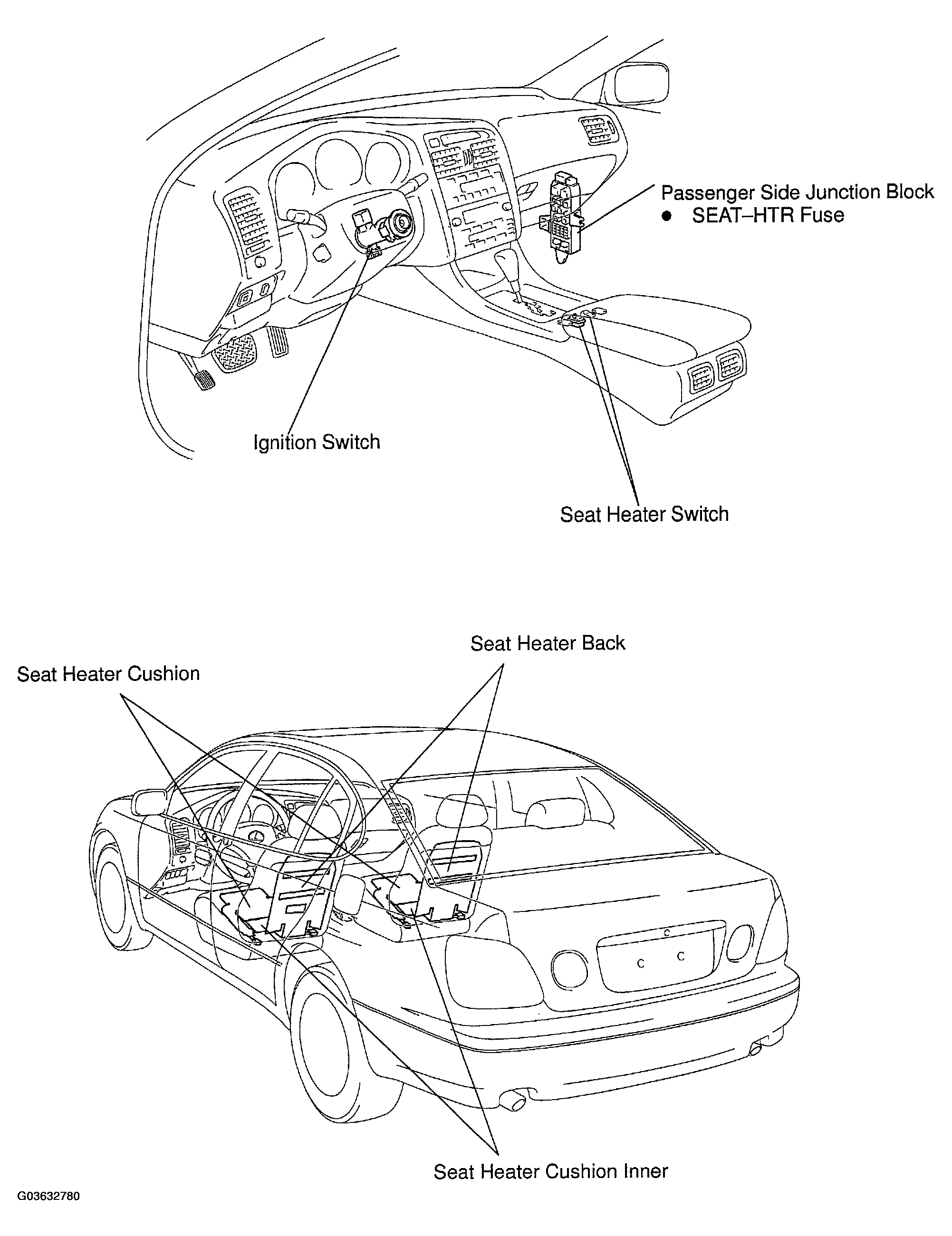

Fig 1: Identifying Seat Heater System Component Location

G03632780

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
