Rear Seat: Components

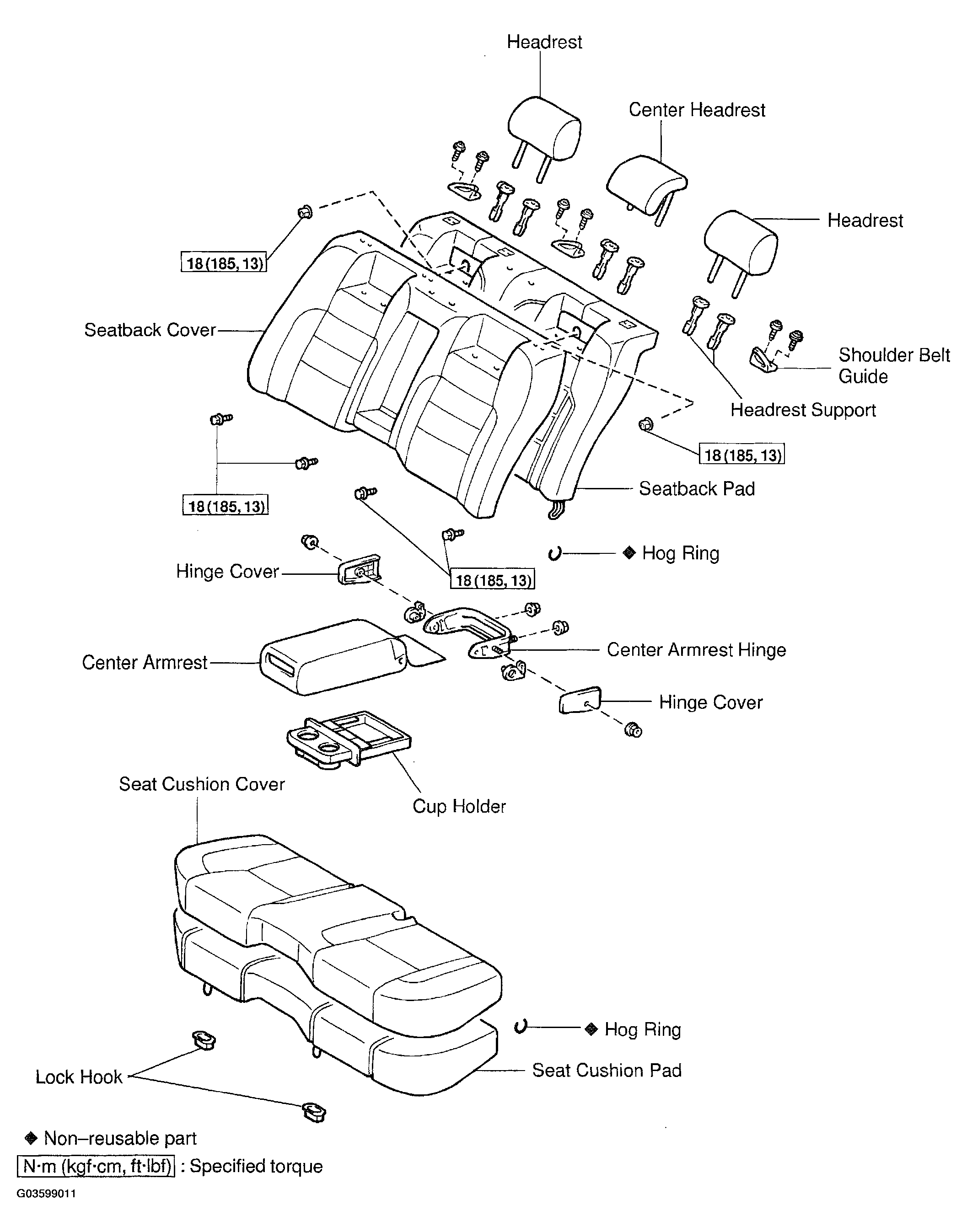

Fig 1: Identifying Rear Seat Components

G03599011

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
