Theft Deterrent System: Location

The vehicle shown in this illustration is "GS430".
All components of "GS300" Other than the ones used for engine are same as "GS430".

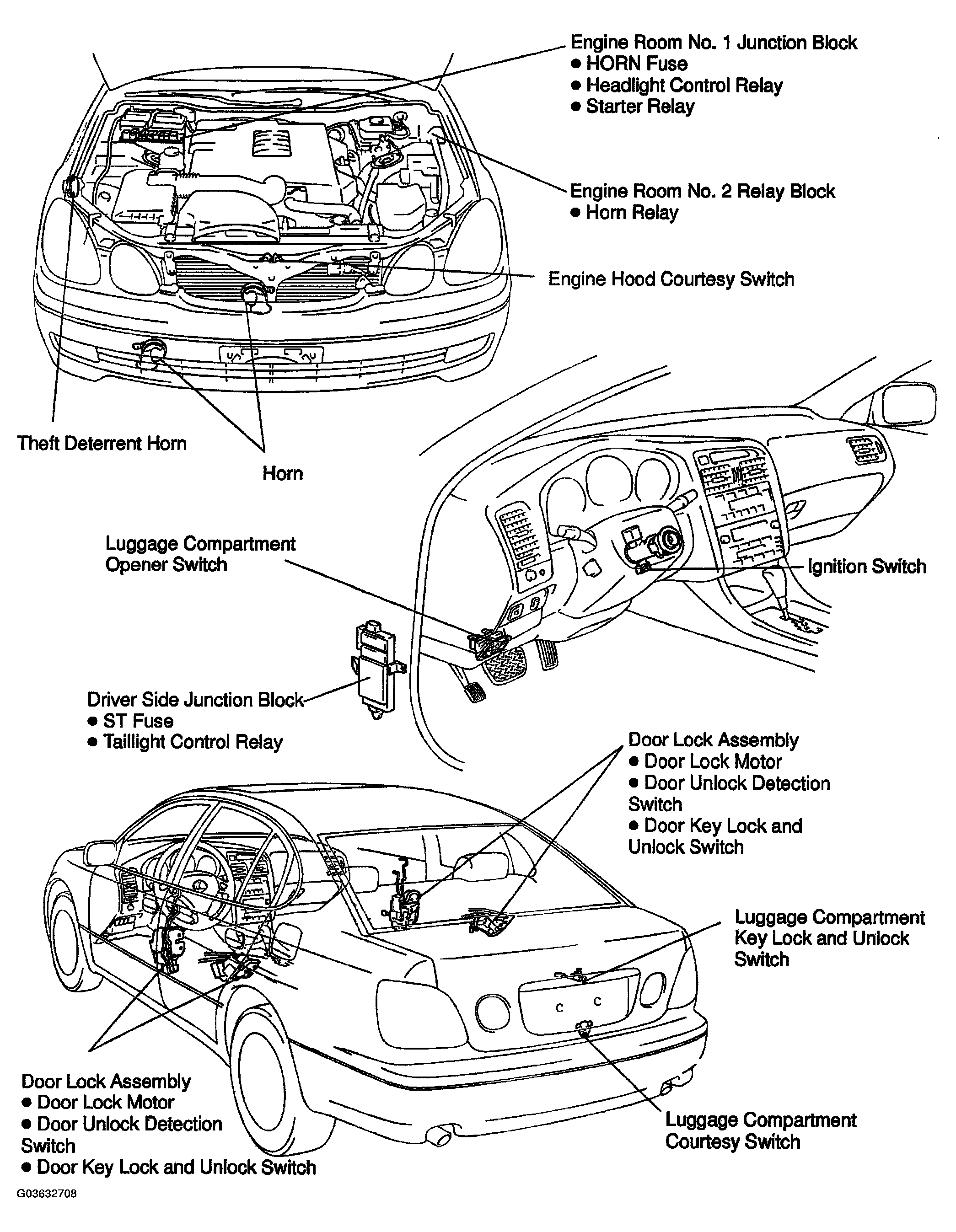

Fig 1: Identifying Theft Deterrent System Component Location (GS430 Shown)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
