Front Right Side Door:

INSPECT DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY

If continuity is not as specified, replace the switch.

INSPECT DOOR KEY LOCK AND UNLOCK SWITCH CIRCUIT

(See  POWER WINDOW MOTOR CIRCUIT  )

Fig 1: Inspecting Door Key Lock And Unlock Switch Circuit (Front Right Side Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT DOOR LOCK MOTOR OPERATION

1. Connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 6, and check that the door lock link moves to UNLOCK position.
2. Reverse the polarity and check that the door lock link moves to LOCK position.

   If operation is not as specified, replace the door lock assembly.

INSPECT DOOR LOCK MOTOR CIRCUIT

(See  DOOR LOCK MOTOR CIRCUIT  )

Fig 1: Inspecting Door Lock Motor Circuit (Front Right Side Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT PTC THERMISTOR OPERATION (Using an ammeter)

1. Connect the negative (-) lead from the battery to terminal 6.
2. Connect the positive (+) lead from the ammeter to terminal 5 and the negative (-) lead to battery negative (-) terminal, and check that the current changes from approximately 3.2 A to less than 0.5 A within 20 to 70 seconds.

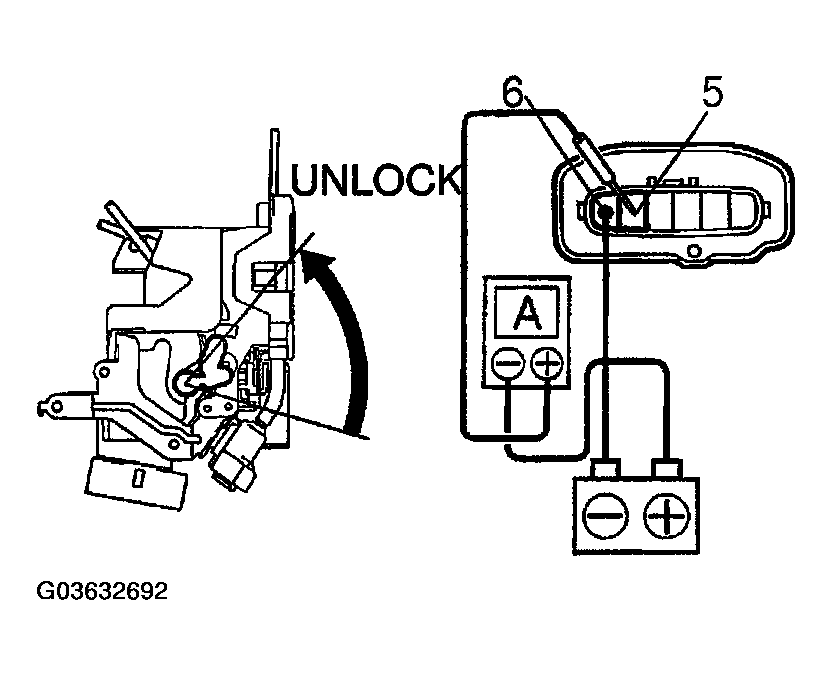

   Fig 1: Inspecting PTC Thermistor Operation (Unlock) (Front Right Side Door)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the leads from terminals.
4. Approximately 60 seconds later, connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 5, and check that the door lock moves to the LOCK position.

If operation is not as specified, replace the door lock assembly.

Fig 2: Inspecting PTC Thermistor Operation (Lock) (Front Right Side Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT PTC THERMISTOR OPERATION (Using an ammeter with a current-measuring probe)

1. Connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 6.
2. Attach a current-measuring probe to either the positive (+) lead or the negative (-) lead, and check that the current changes from approximately 3.2 A to less than 0.5 A within 20 to 70 seconds.

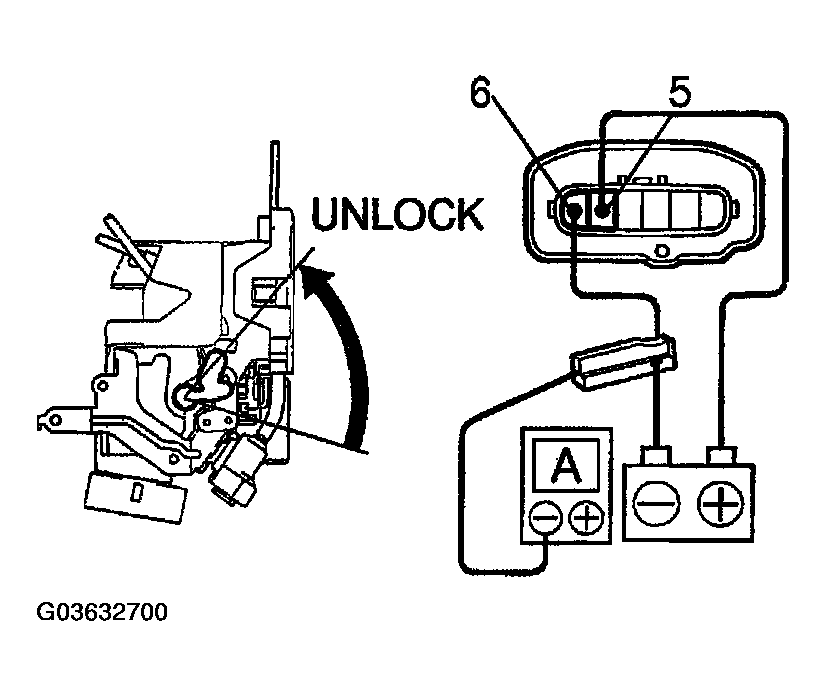

   Fig 1: Inspecting PTC Thermistor Operation (Unlock) (Front Right Side Door)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the leads from terminals.
4. Approximately 60 seconds later, reverse the polarity, and check that the door lock moves to the LOCK position.

If operation is not as specified, replace the door lock assembly.

Fig 2: Inspecting PTC Thermistor Operation (Lock) (Front Right Side Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
