Section 463 (Air Conditioning): Servomotor: Removal

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE AIR INLET SERVOMOTOR
1. Remove these parts:
  1. Front door scuff plate RH
  2. Cowl side trim RH
  3. No.2 under cover
  4. Glove compartment door
  5. Glove compartment panel (See REMOVAL )
2. Disconnect the wire harness.

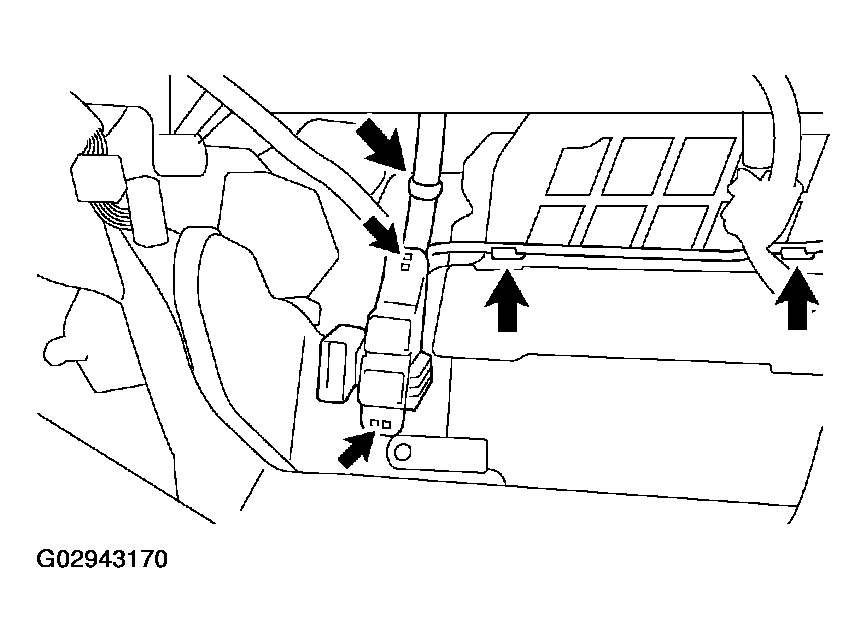

  Fig 1: Disconnecting Wire Harness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the bracket.
  1. Disconnect wire harness clamp.
  2. Remove the 2 bolts and bracket.

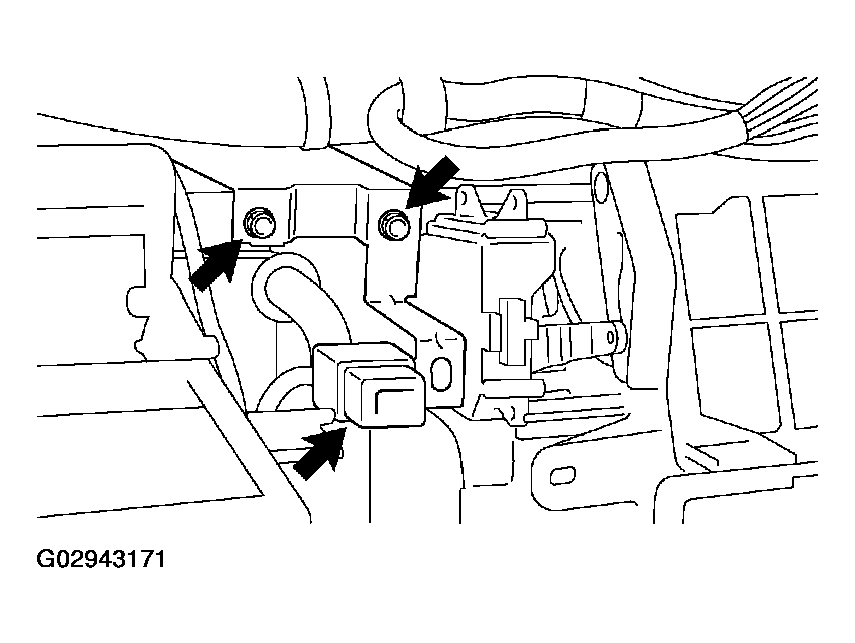

    Fig 2: Removing 2 Bolts And Bracket
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the air inlet servomotor.
  1. Disconnect the connector.
  2. Remove the 3 screws and servomotor.

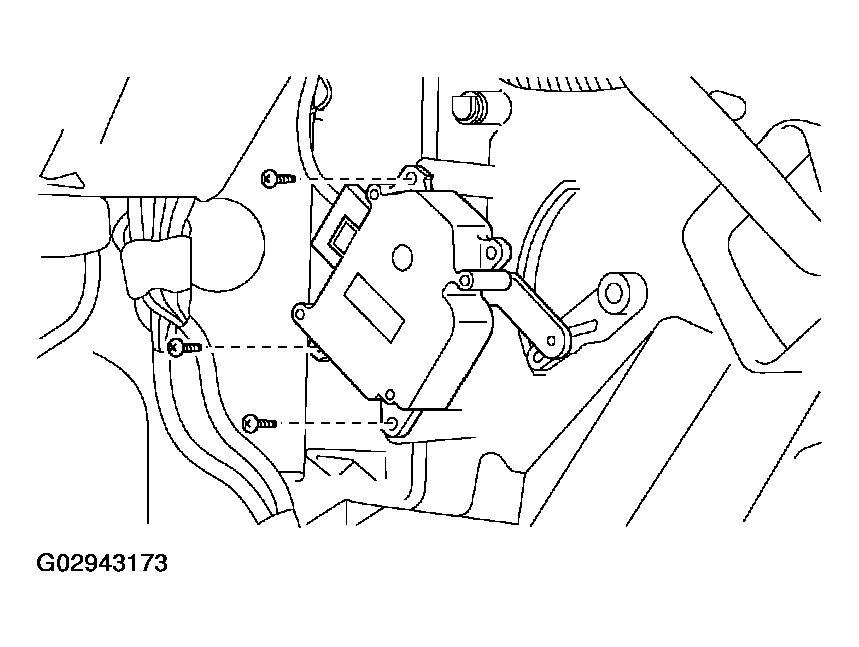

    Fig 3: Removing Screws And Servomotor
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR MIX SERVOMOTOR (Driver Side)
1. Remove these parts:
  1. No.1 under cover
  2. No.1 safety pad (See REMOVAL )
2. Remove the air mix servomotor.
  1. Disconnect the connector.
  2. Remove the 3 screws and servomotor.

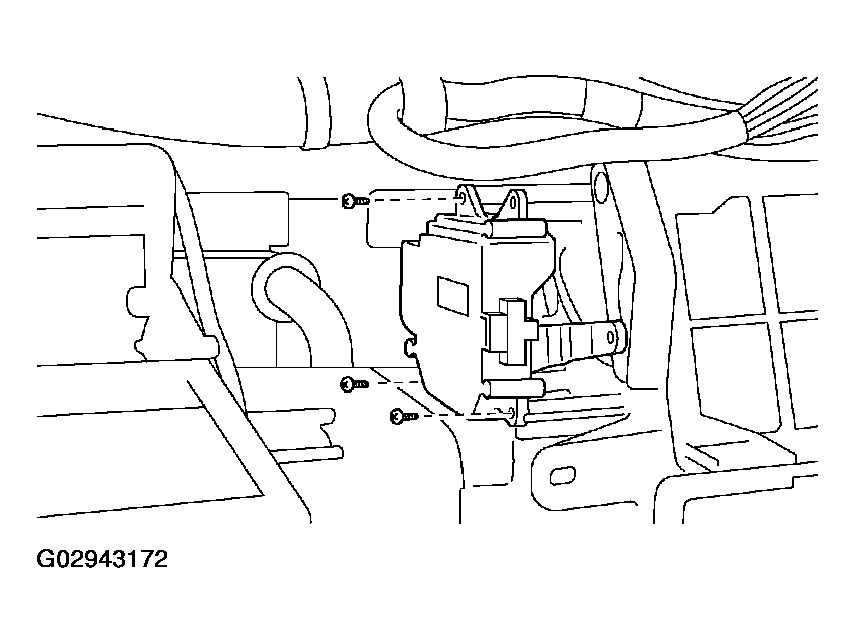

    Fig 4: Removing Air Mix Servomotor - Driver Side
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR MIX SERVOMOTOR (Passenger Side)
1. Remove heater radiator (See REMOVAL ).
2. Remove the air mix servomotor.
  1. Disconnect the connector.
  2. Remove the 3 screws and servomotor.

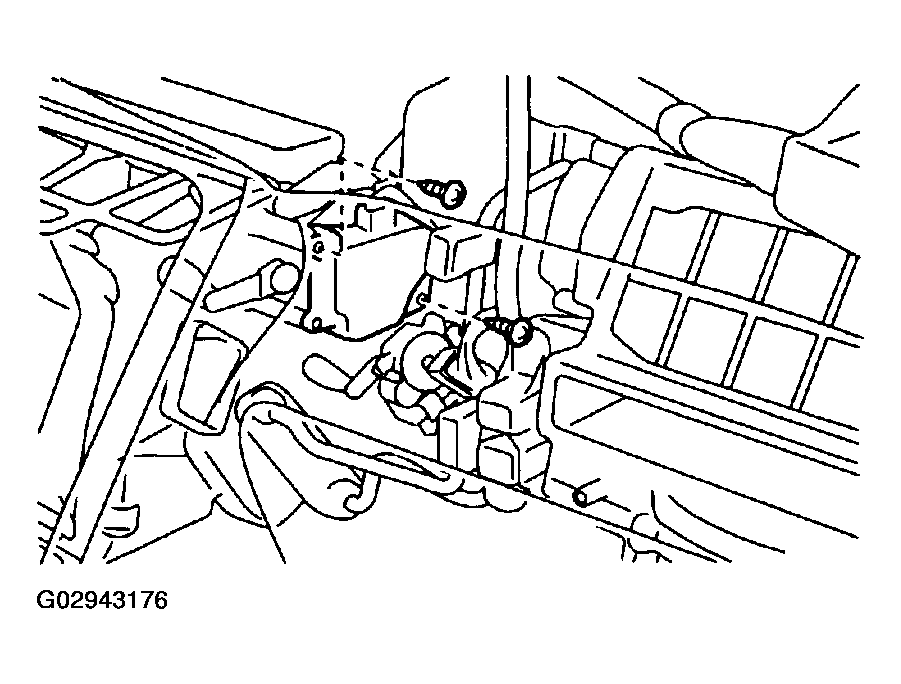

    Fig 5: Removing Air Mix Servomotor - Passenger Side
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR OUTLET SERVOMOTOR
1. Remove these parts:
  1. No. 2 under cover
  2. Glove compartment door
  3. Glove compartment panel (See REMOVAL )
2. Remove the air duct.
  Remove the 3 screws and air duct.

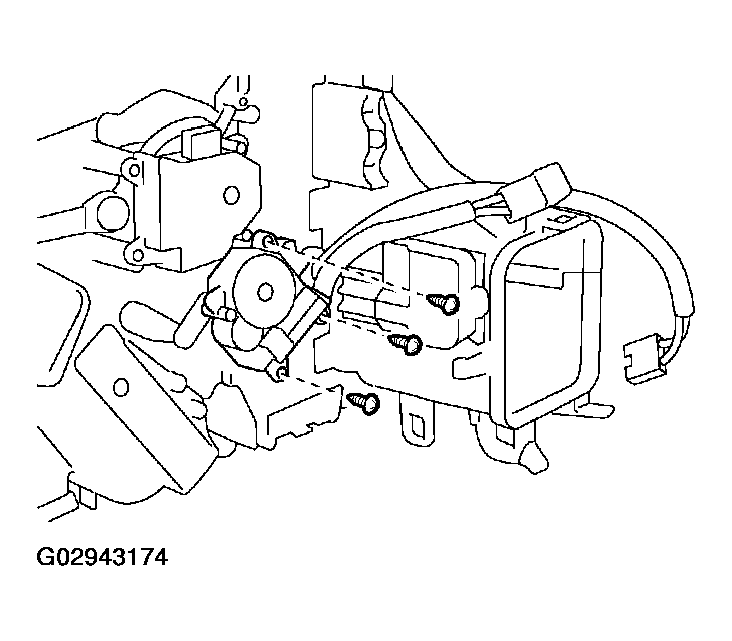

  Fig 6: Removing 3 Screws And Air Duct
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove air outlet servomotor.
  1. Disconnect the connector.
  2. Remove the 2 screws and servomotor.

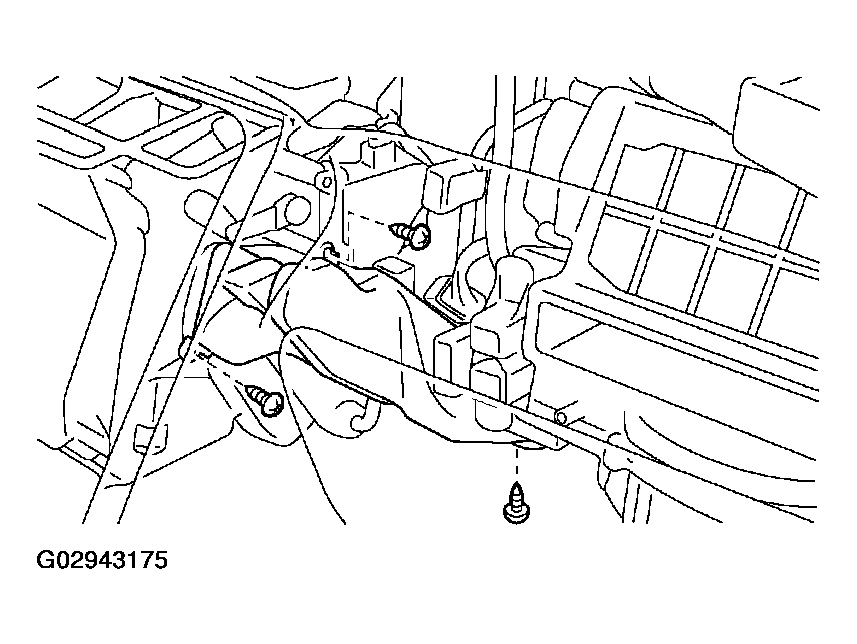

    Fig 7: Removing 2 Screws And Servomotor
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
