Blower Unit: Removal

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE INSTRUMENT PANEL AND REINFORCEMENT
(See REMOVAL )
REMOVE AIR DUCT
1. Disconnect the connector clamp.
2. Remove the 3 screws and air duct.

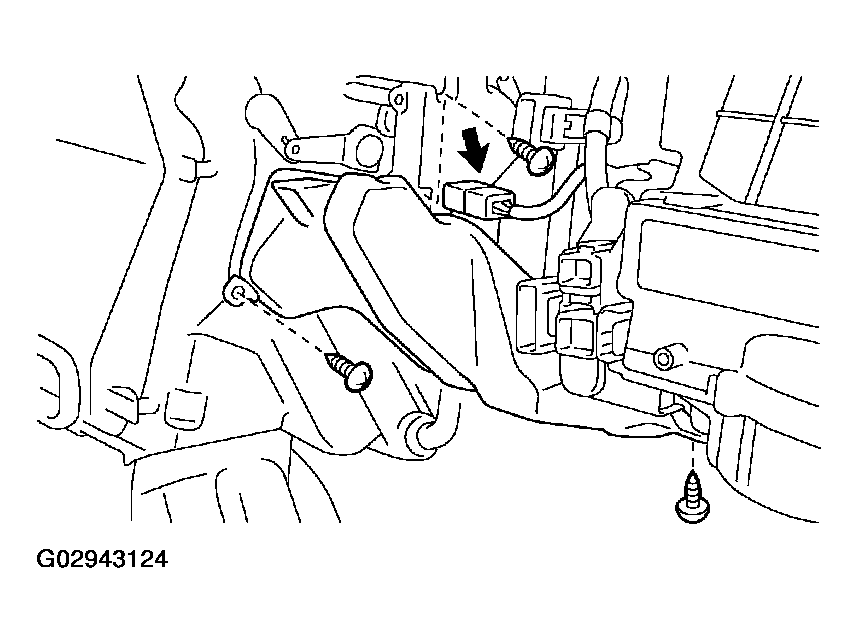

  Fig 1: Disconnecting Connector Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT WIRE HARNESS
1. Release the claw of the connector bracket and disconnect the connector bracket.
2. Disconnect the wire harness set clamps.
3. Disconnect the wire harness.

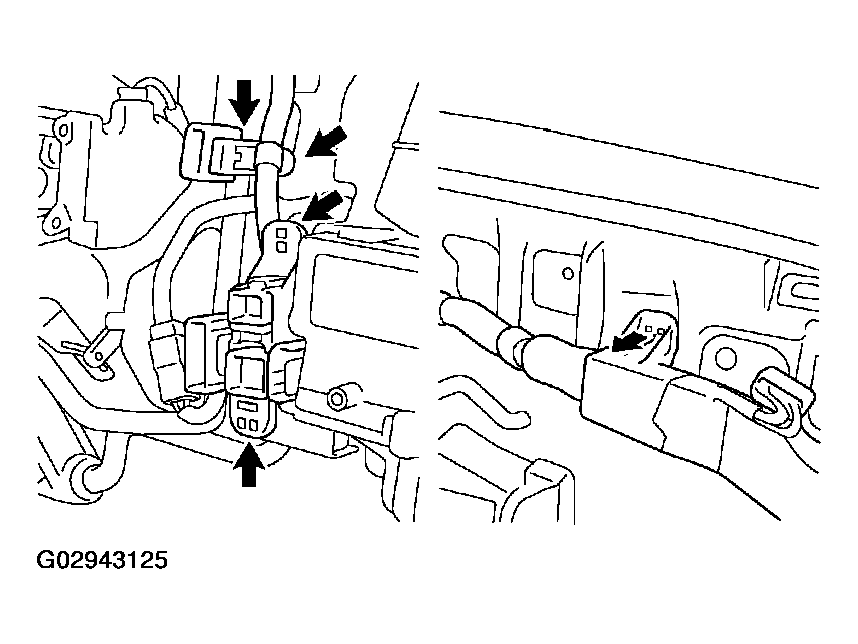

  Fig 2: Disconnecting Wire Harness Set Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BLOWER UNIT
1. Disconnect the connectors.
2. Remove the 2 bolts and bracket.
3. Remove the bolt, screw and nut.
4. Remove the blower unit.

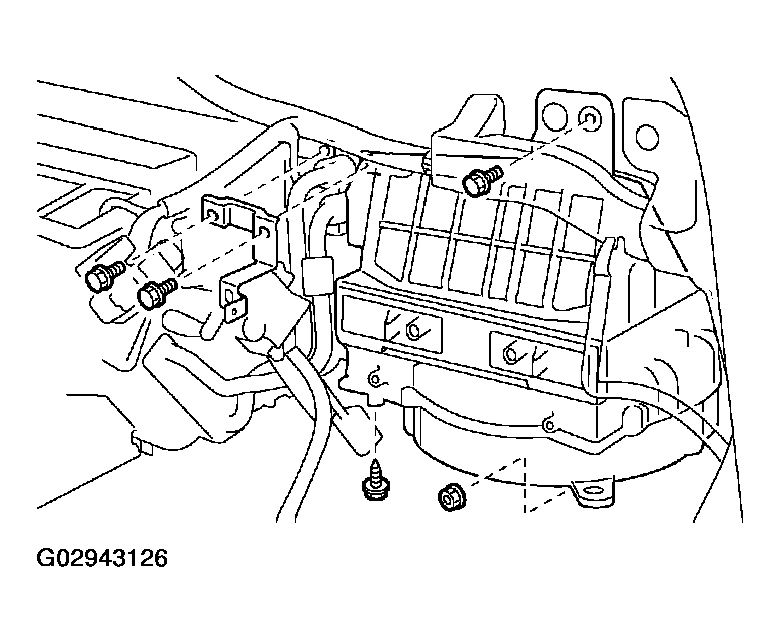

  Fig 3: Removing Blower Unit
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
