Blower Motor Control Relay: Removal

WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE THESE PARTS:
    1. Front door scuff plate RH
    2. Cowl side trim RH
    3. No.2 under cover
    4. Glove compartment door
    5. Glove compartment panel (See REMOVAL )
  2. REMOVE AIR DUCT

    Remove the 3 screws and duct.

  3. DISCONNECT WIRE HARNESS

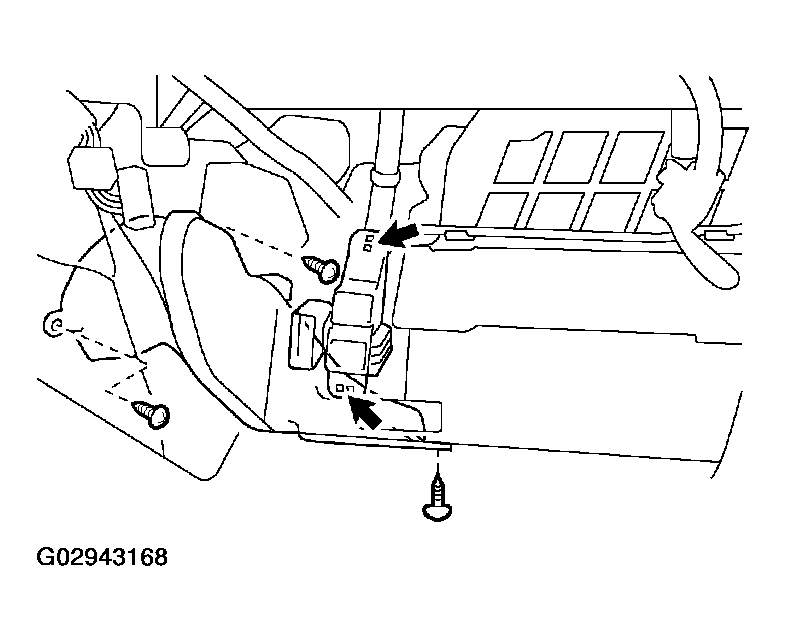

    Fig 1: Removing 3 Screws And Duct
    G02943168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE BLOWER MOTOR CONTROL RELAY

    Remove the screw and blower motor control relay, then disconnect the connectors.

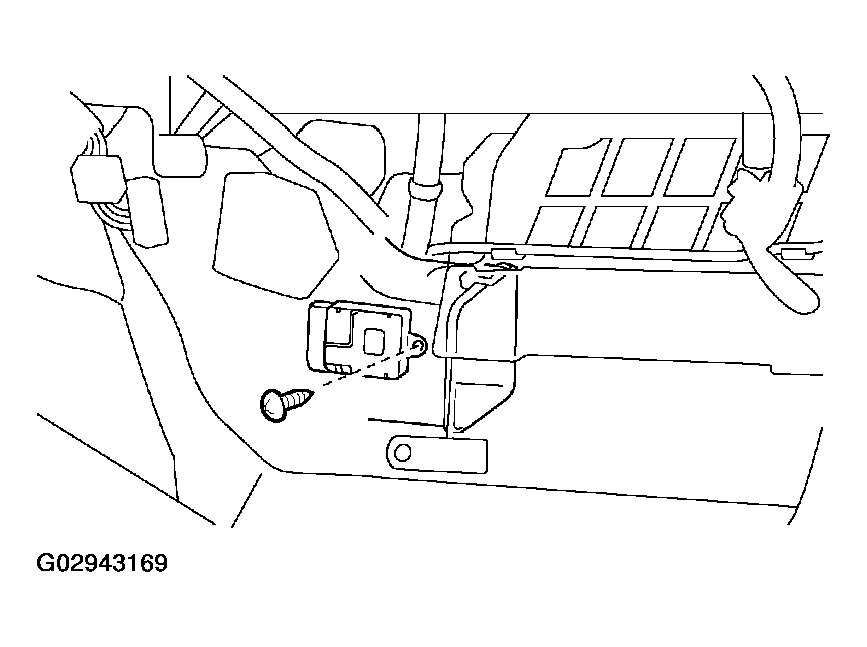

    Fig 2: Removing Motor Control Relay
    G02943169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
