Circuit Description
WARNING: This page is about a different car, the 2005 Lexus GS 430 and 2005 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
This sensor sends 4 pulses per engine revolution to the ECM.

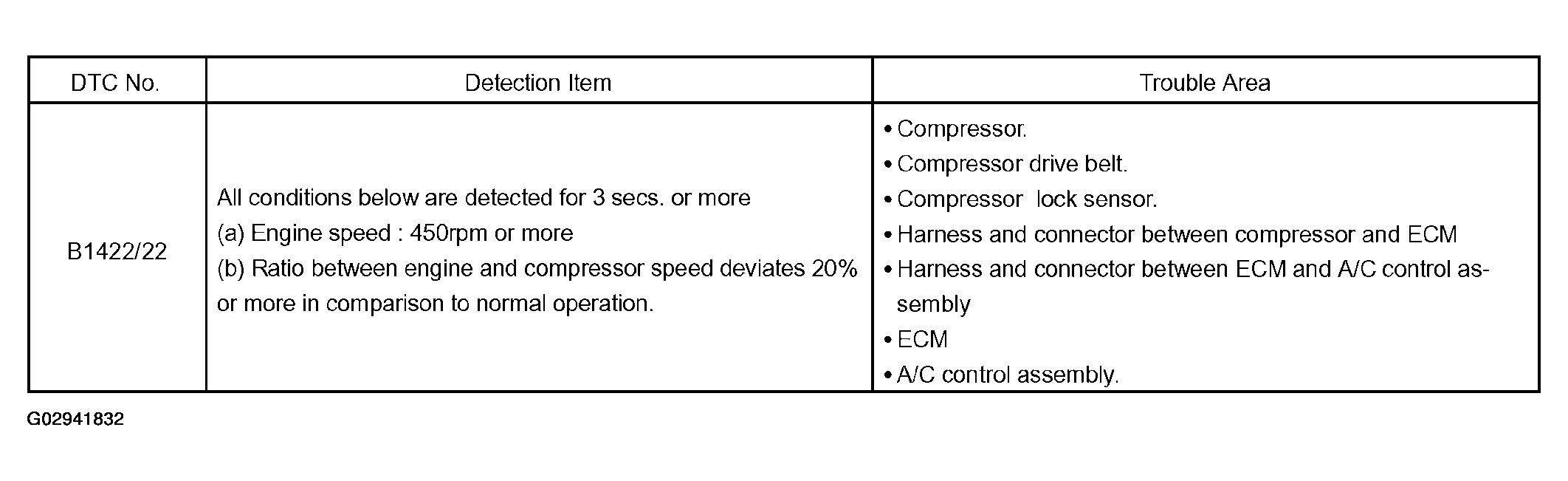

If the number ratio of the compressor speed divided by the engine speed is smaller than a predetermined value, the ECM turns the compressor OFF. And, the indicator flashes at about 1 second intervals.
