Section 268 (Back Door): Overhaul

WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

The installation is in the reverse order of the removal. However, when there is a special point concerning the installation, it is indicated.

  1. REMOVE BACK DOOR GARNISH CENTER
    1. Using a clip remover, disengage the 5 clips, and remove the garnish center.

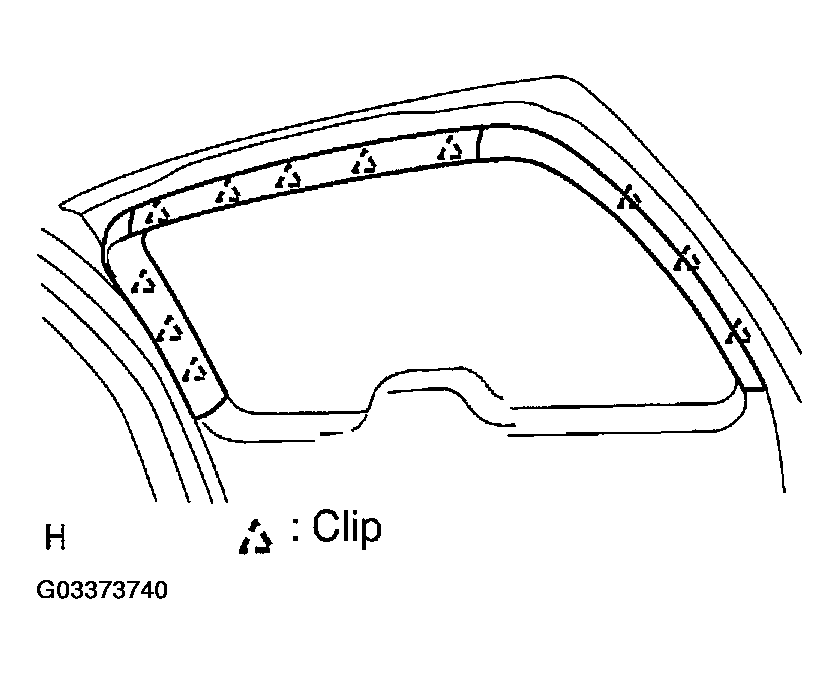

    Fig 1: Removing Back Door Garnish Center
    G03373740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE BACK DOOR SIDE GARNISH LH
    1. Using a clip remover, disengage the 3 clips, and remove the side garnish.
  3. REMOVE BACK DOOR SIDE GARNISH RH
    1. Using a clip remover, disengage the 3 clips, and remove the side garnish.
  4. REMOVE TOOL BOX PANEL SUB-ASSY UPPER
    1. Remove the tool cover and tool set.
  5. REMOVE ASSIST GRIP ASSY
    1. Remove the 2 assist grip covers and assist grip assy.
  6. REMOVE BACK DOOR TRIM BOARD
    1. Remove the 2 trim board covers.
    2. Remove the screw.
    3. Using a screwdriver, disengage the 15 clips and remove the trim board.

      HINT:

      Tape the screwdriver tip before use.

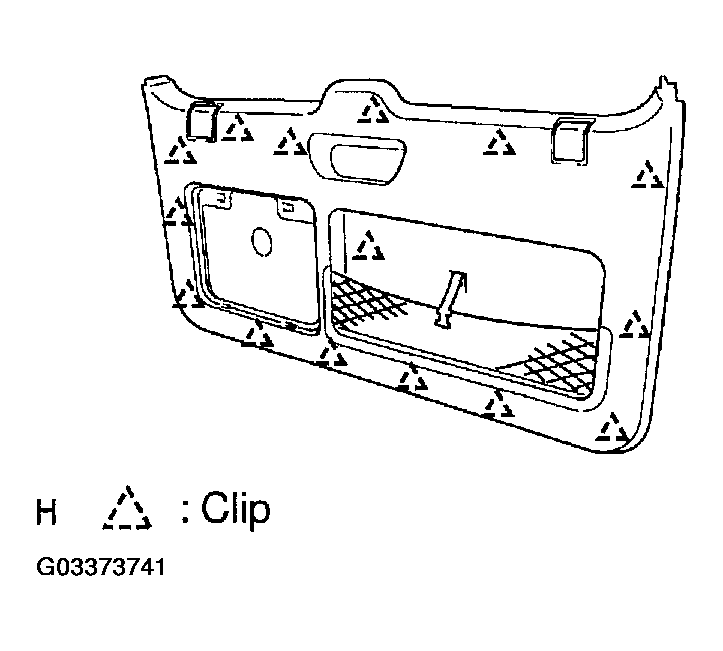

      Fig 2: Identifying Trim Board Clips
      G03373741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 7 screws and trim pocket.
    5. w/ Speaker

      Remove the 4 screws and rear speaker grille sub-assy LH and RH.

  7. REMOVE BACK DOOR STOPPER LOWER
    1. Remove the packing.
    2. Using a screwdriver, disengage the claw, and remove the stopper lower.

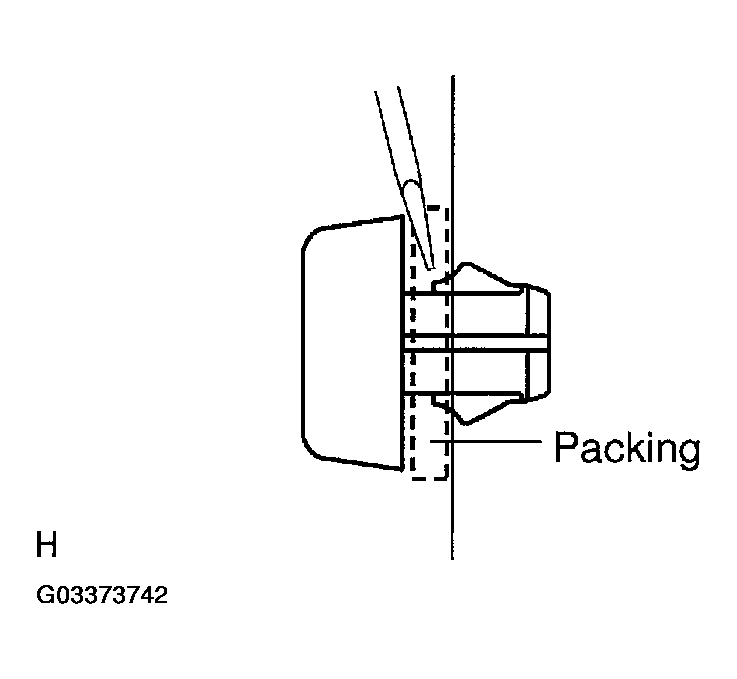

      Fig 3: Removing Back Door Stopper Lower
      G03373742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE BACK DOOR SERVICE HOLE COVER
    NOTE: Remove the remaining tape on the door side.

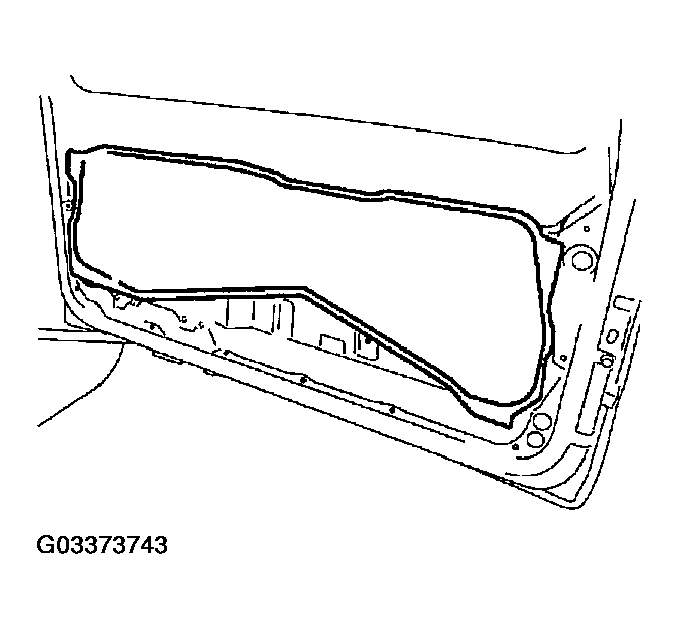

    Fig 4: Removing Back Door Service Hole Cover
    G03373743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE STEREO COMPONENT SPEAKER ASSY (VW SPEAKER) (See  REPLACEMENT  )
  10. REMOVE BACK DOOR OUTSIDE HANDLE
    1. Remove the 2 bolts and outside handle.
    2. Remove the cable.

      HINT:

      Remove the outside handle through the service hole.

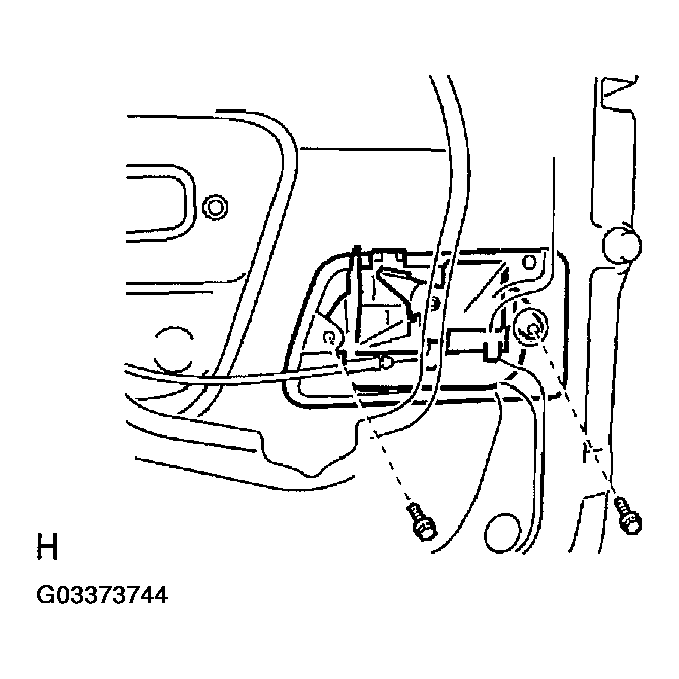

      Fig 5: Removing Back Door Outside Handle
      G03373744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE W/MOTOR BACK DOOR LOCK ASSY
    1. Disconnect the door lock connector.
    2. Using a torx socket wrench (T30), remove the 3 screws and door lock assy.

      HINT:

      Remove the door lock assy through the service hole.

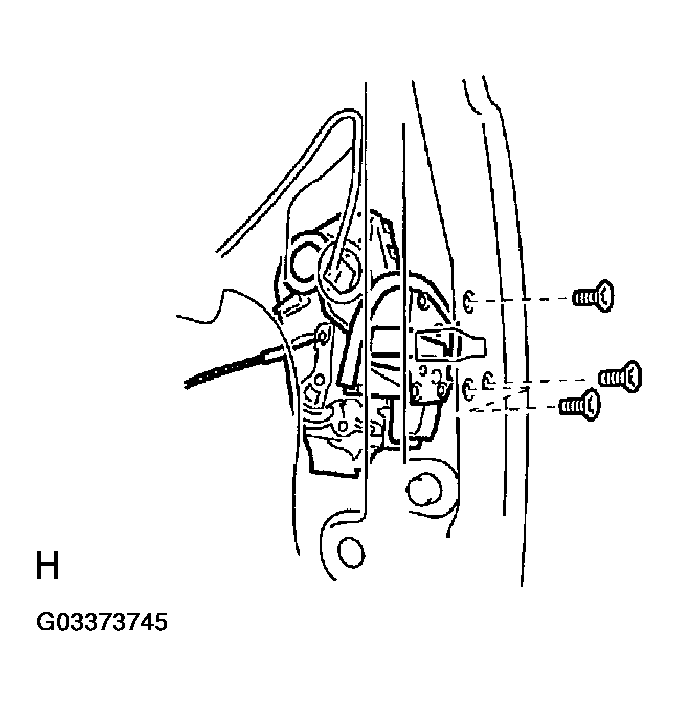

      Fig 6: Removing W/Motor Back Door Lock Assy
      G03373745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE LICENSE REAR LAMP COVER
  13. REMOVE BACK DOOR GARNISH SUB-ASSY OUTSIDE
  14. REMOVE REAR WIPER MOTOR ASSY (See  REAR WIPER MOTOR ASSY  )
  15. REMOVE BACK DOOR SIDE FEMALE STOPPER SUB-ASSY RH
    1. Remove the 2 bolts and female stopper sub-assy.
  16. REMOVE BACK DOOR LINK SUB-ASSY LOWER
    1. Remove the top set bolt cap B.
    2. Remove the bolt and back door link sub-assy.
  17. REMOVE BACK DOOR STAY RAIL SUB-ASSY RH
    1. Remove the 2 bolts and stay rail sub-assy.
  18. REMOVE REAR BUMPER COVER (See  REPLACEMENT  )
  19. REMOVE BACK DOOR STAY BRACKET SUB-ASSY RH
    1. Remove the 2 bolts and stay bracket sub-assy.
  20. INSTALL BACK DOOR STAY BRACKET SUB-ASSY RH
    1. Install the back door stay bracket sub-assy with the 2 bolts.

      Torque: 18 N.m (184 kgf.cm, 13 ft.lbf)

  21. INSTALL BACK DOOR STAY RAIL SUB-ASSY RH
    1. Apply MP grease to the sliding parts of the stay rail sub-assy, as shown in Fig 7 .

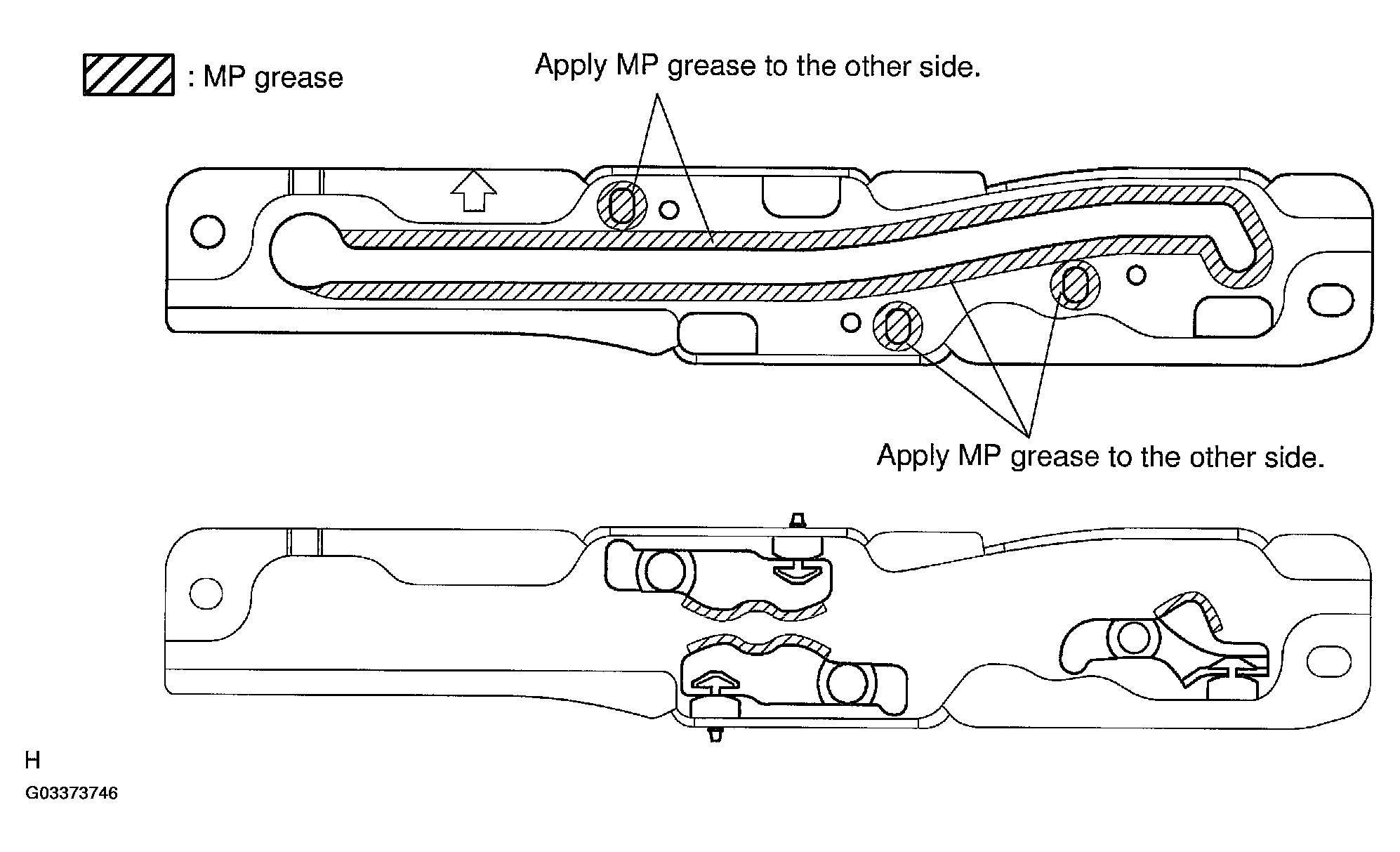

      Fig 7: Applying MP Grease To Sliding Parts Of Stay Rail Sub-Assy
      G03373746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the stay rail sub-assy with the 2 bolts.

      Torque: 18 N.m (184 kgf.cm, 13 ft.lbf)

    3. Install the top set bolt cap B.
  22. INSTALL BACK DOOR LINK SUB-ASSY LOWER
    1. Install the link sub-assy with the bolts.

      Torque: 18 N.m (184 kgf.cm, 13 ft.lbf)

  23. INSTALL BACK DOOR SIDE FEMALE STOPPER SUB-ASSY RH
    1. Install the female stopper with the 2 bolts.

      Torque: 7.0 N.m (71 kgf.cm, 62 in.lbf)

  24. INSTALL W/MOTOR BACK DOOR LOCK ASSY
    1. Apply MP grease to the sliding and rotating parts of the door lock assy.
    2. If reusing door lock assy:

      Install a new door lock wire harness packing.

      NOTE:
      • If reusing the door lock that has been removed, replace the packing in the connecting part with a new one.
      • Be careful that no grease and dirt sticks to the packing surface in the connecting part.
      • Reusing removed packing that is or using damaged packing will allow water to penetrate through to the connecting part, resulting in a malfunction of the door lock.
    3. Insert the outside handle link into the door lock, and then set it to the door panel.
      NOTE: Make sure that the outside handle link is securely engaged with the lock assembly.
    4. Apply adhesive to the threads of the screws.

      Adhesive:

      • Part No. 08833-00070, THREE BOND 1324 or equivalent

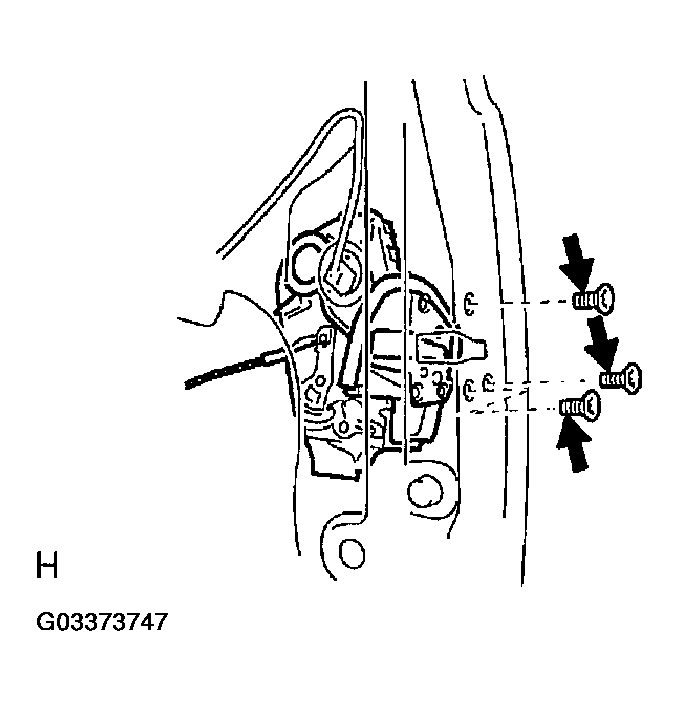

      Fig 8: Applying Adhesive To Threads Of Screws
      G03373747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a torx socket wrench (T30), install the door lock assy with the 3 screws.

      Torque: 5.0 N.m (51 kgf.cm, 42 in.lbf)

    6. Connect the door lock connector.
  25. INSTALL BACK DOOR OUTSIDE HANDLE
    1. Install the handle with the 2 bolts.

      Torque: 5.0 N.m (51 kgf.cm, 42 in.lbf)

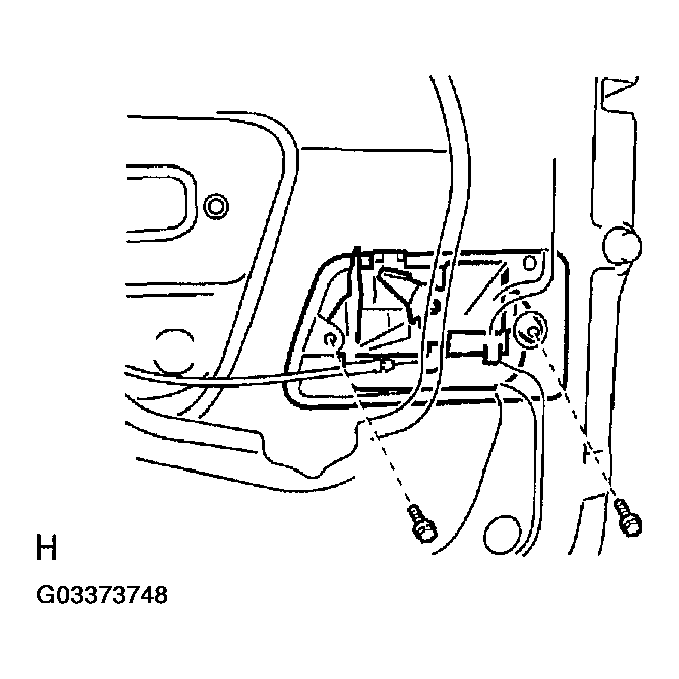

      Fig 9: Installing Back Door Outside Handle
      G03373748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL STEREO COMPONENT SPEAKER ASSY (W/ SPEAKER) (See  REPLACEMENT  )
  27. INSTALL BACK DOOR SERVICE HOLE COVER (W/ SPEAKER)
    1. Apply butyl tape to the door, as shown in Fig 10 .

      Adhesive:

      • Part No. 08850-00065, Butyl Tape Set or equivalent

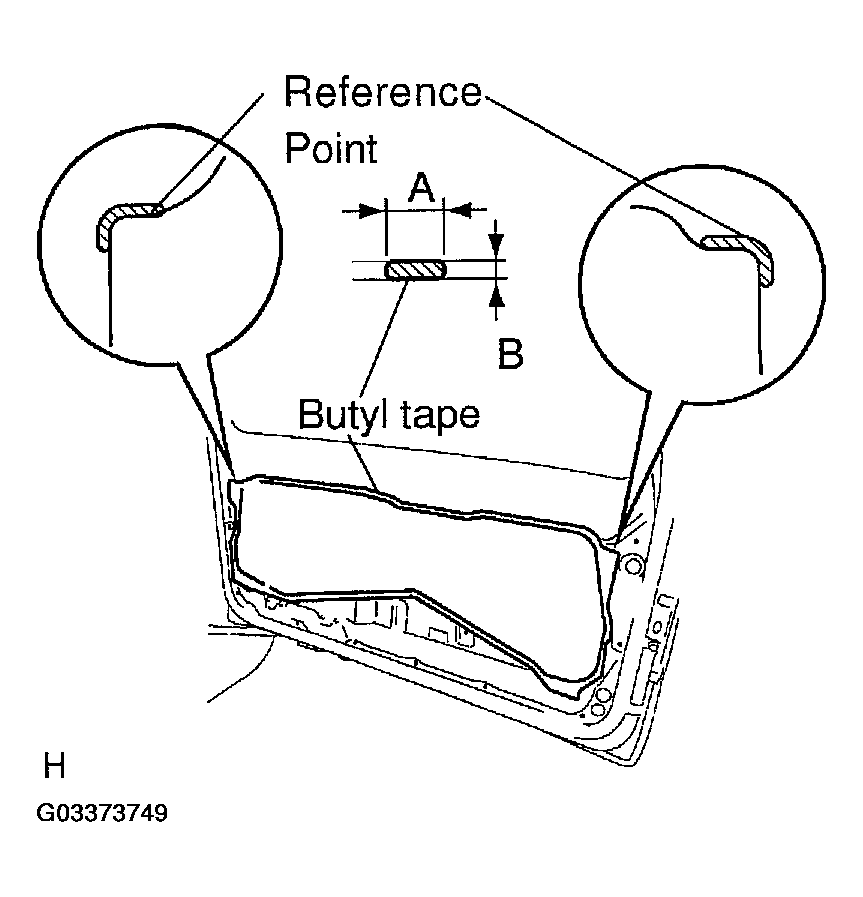

      Fig 10: Applying Butyl Tape To Door
      G03373749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the service hole cover.

      HINT:

      • When installing the service hole cover, pull out the links and connectors through the service hole cover.
      • There should be no wrinkles or folds after attaching the service hole cover.
      • After attaching the service hole cover, confirm the sealing condition.

        Dimensions:

        DIMENSIONS CHART

        A 6.0 mm (0.236 in.)
        B 2.0 mm (0.079 in.)
    3. Install the 2 tool box brackets with the 4 bolts.

      Torque: 8.0 N.m (81 kgf.cm, 71 in.lbf)
