Suspension Control Ecu: Replacement

HINT:

LOCATION: See ELECTRICAL COMPONENT LOCATOR

1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 1
3. REMOVE COWL SIDE TRIM BOARD LH (See  REPLACEMENT  )
4. REMOVE FRONT DOOR SCUFF PLATE LH (See  REPLACEMENT  )
5. REMOVE COWL SIDE TRIM BOARD LH (See  REPLACEMENT  )
6. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 1 (See  REPLACEMENT  )
7. REMOVE INSTRUMENT PANEL FINISH PLATE (See  REPLACEMENT  )
8. REMOVE INSTRUMENT PANEL FINISH LOWER PANEL RH
   1. Remove the 2 nuts and a bolt, disconnect the junction block.
   2. Disconnect the connector from the suspension control ECU.
   3. Remove the 2 bolts and the suspension control ECU.

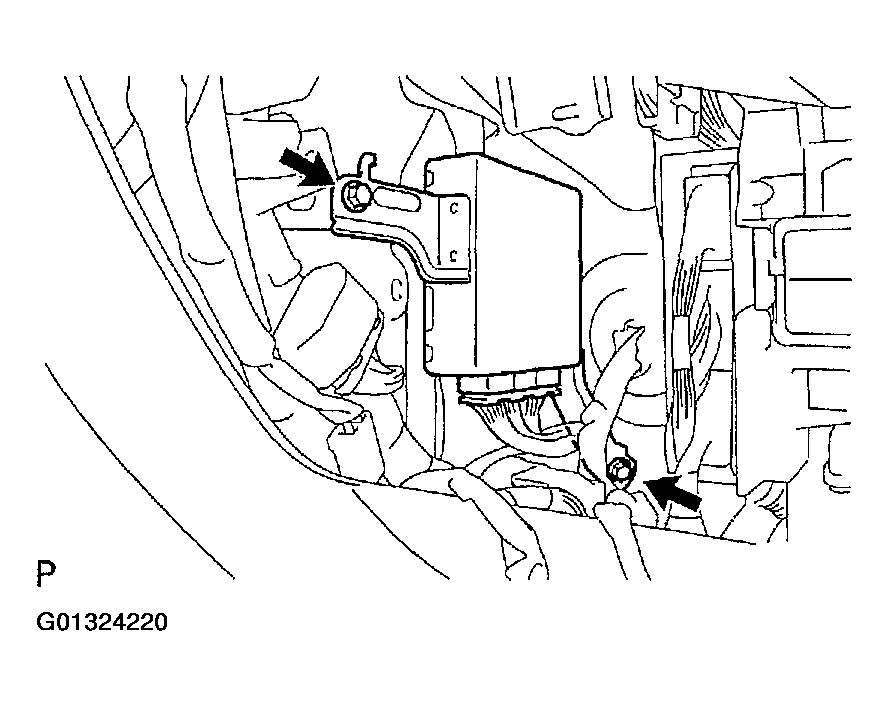

      Fig 1: Removing Bolts And Suspension Control ECU

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. REMOVE INSTRUMENT PANEL LOWER LH
   1. Install the suspension control ECU with the 2 bolts.

      Torque: 7.8 N.m (80 kgf.cm, 69 in.lbg)

   2. Connect the connector to the suspension control ECU.
   3. Install the junction block with the 2 nuts and a bolt.

   Torque: 8.4 N.m (86 kgf.cm, 74 in.lbf)

10. REMOVE SUSPENSION CONTROL ECU
11. INSTALL SUSPENSION CONTROL ECU
12. INSTALL INSTRUMENT PANEL LOWER LH
13. INSTALL INSTRUMENT PANEL FINISH LOWER PANEL RH
14. INSTALL COWL SIDE TRIM BOARD LH
15. INSTALL FRONT DOOR SCUFF PLATE LH
