Ignition Coil: Removal

Using a 5 mm hexagon wrench, remove the 4 bolts, oil filler cap, NO. 3 timing belt cover and gasket.

1. Disconnect the accelerator cable.
2. Disconnect the throttle position sensor connector.
3. Disconnect the throttle control motor connector.
4. Disconnect the accelerator pedal position sensor connector.
5. Disconnect the engine wire clamp from the clamp bracket of the throttle body.
6. Remove the 2 bolts and nut holding the throttle body to the intake air connector.

   Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)

7. Remove the 4 nuts and the throttle body bracket.

   Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)

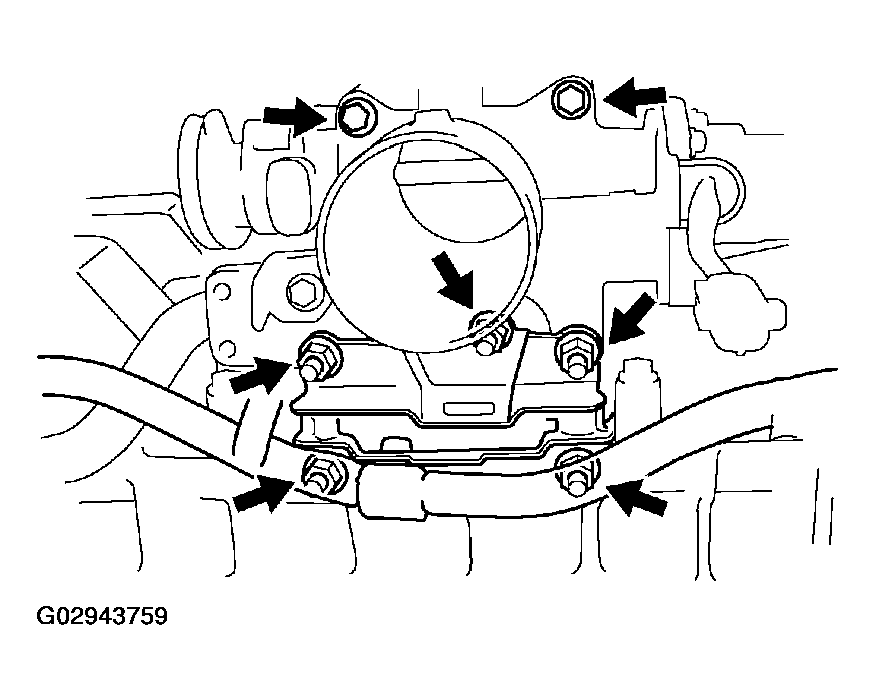

   Fig 1: Identifying Throttle Body Bracket Nuts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Disconnect the water bypass hose from the hose clamp on the oil filter bracket,
9. Slightly slide the throttle body away from the intake air connector

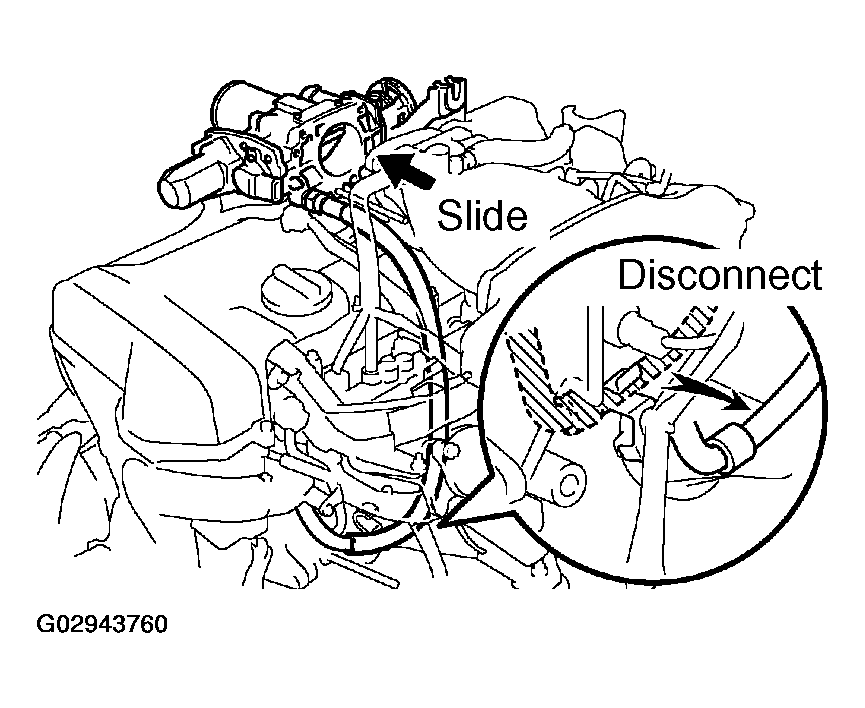

   Fig 2: Disconnecting Water Bypass Hose From Hose Clamp On Oil Filter Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 3 bolts and throttle body gasket.

Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)

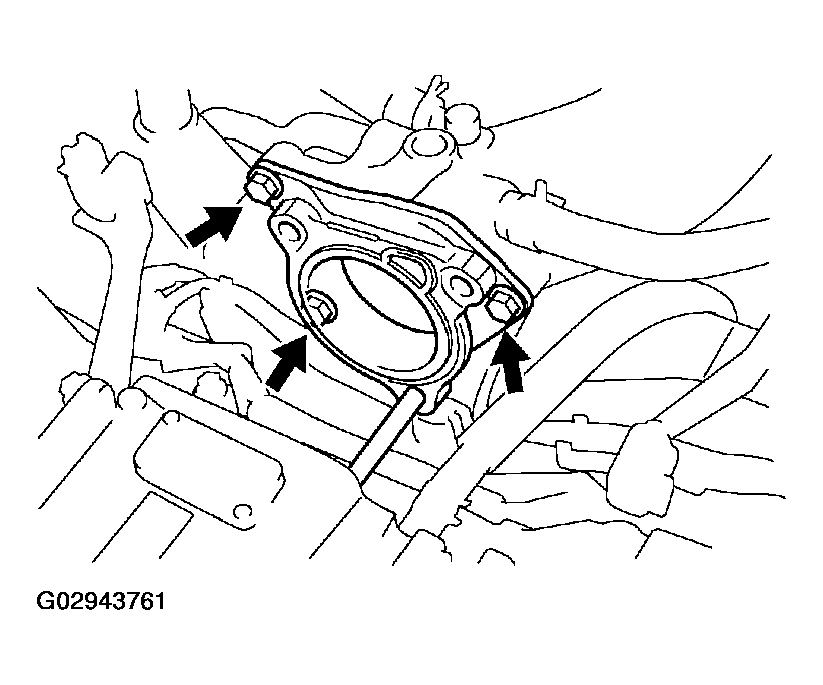

Fig 3: Identifying Throttle Body Gasket Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the 3 connectors from the ignition coils.
2. Remove the 2 bolts, and disconnect the clamps from the engine wire.

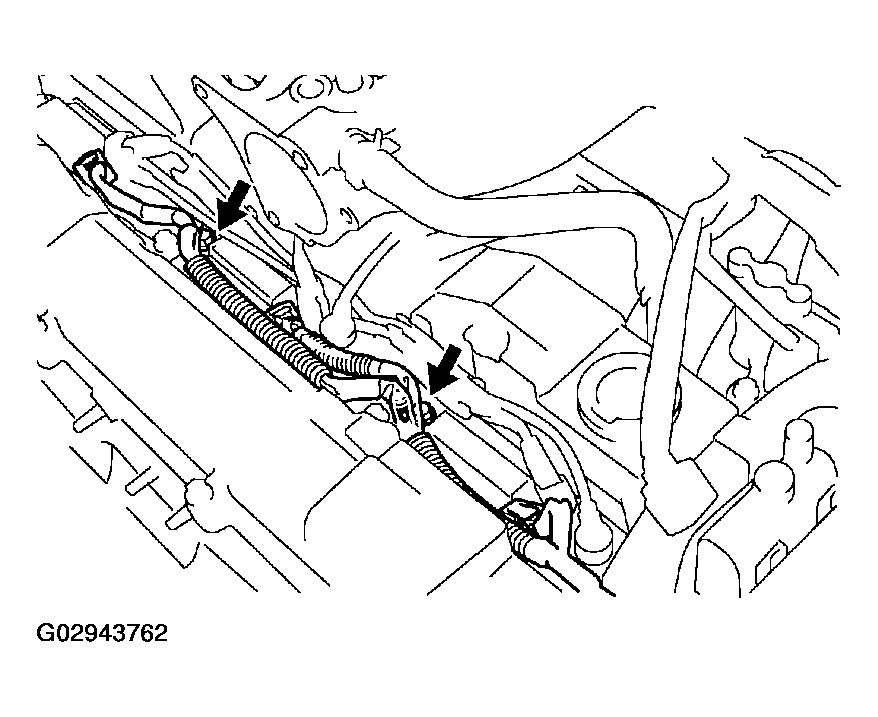

   Fig 4: Identifying Engine Wire Clamps Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 3 bolts, the ignition coils and high - tension cord set assembly.

   Torque: 8.0 N.m (80 kgf.cm, 71 in.lbf)

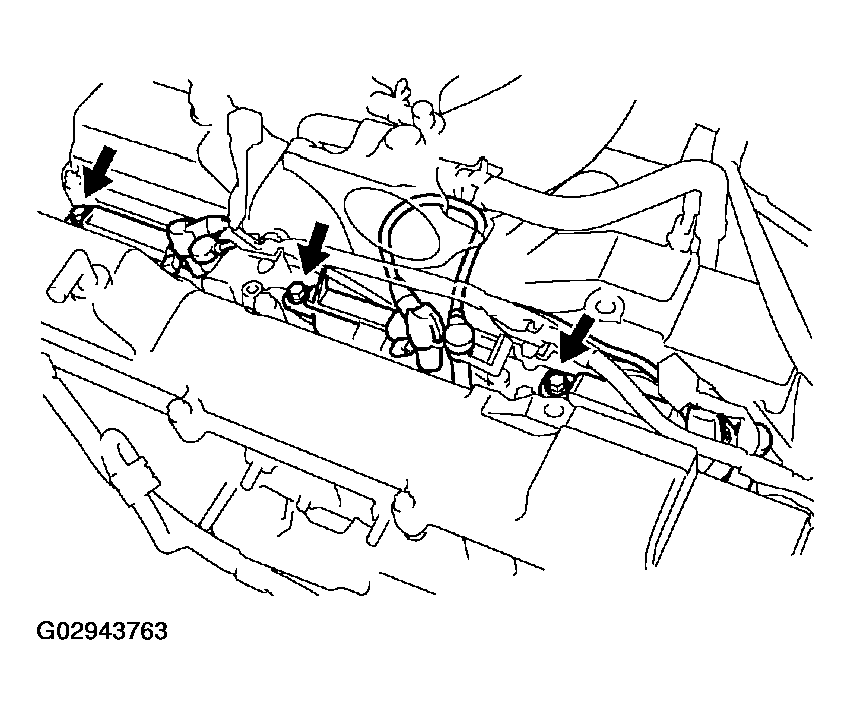

   Fig 5: Identifying Ignition Coils And High - Tension Cord Set Assy Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
