Automatic Transaxle - Diagnosis: Location

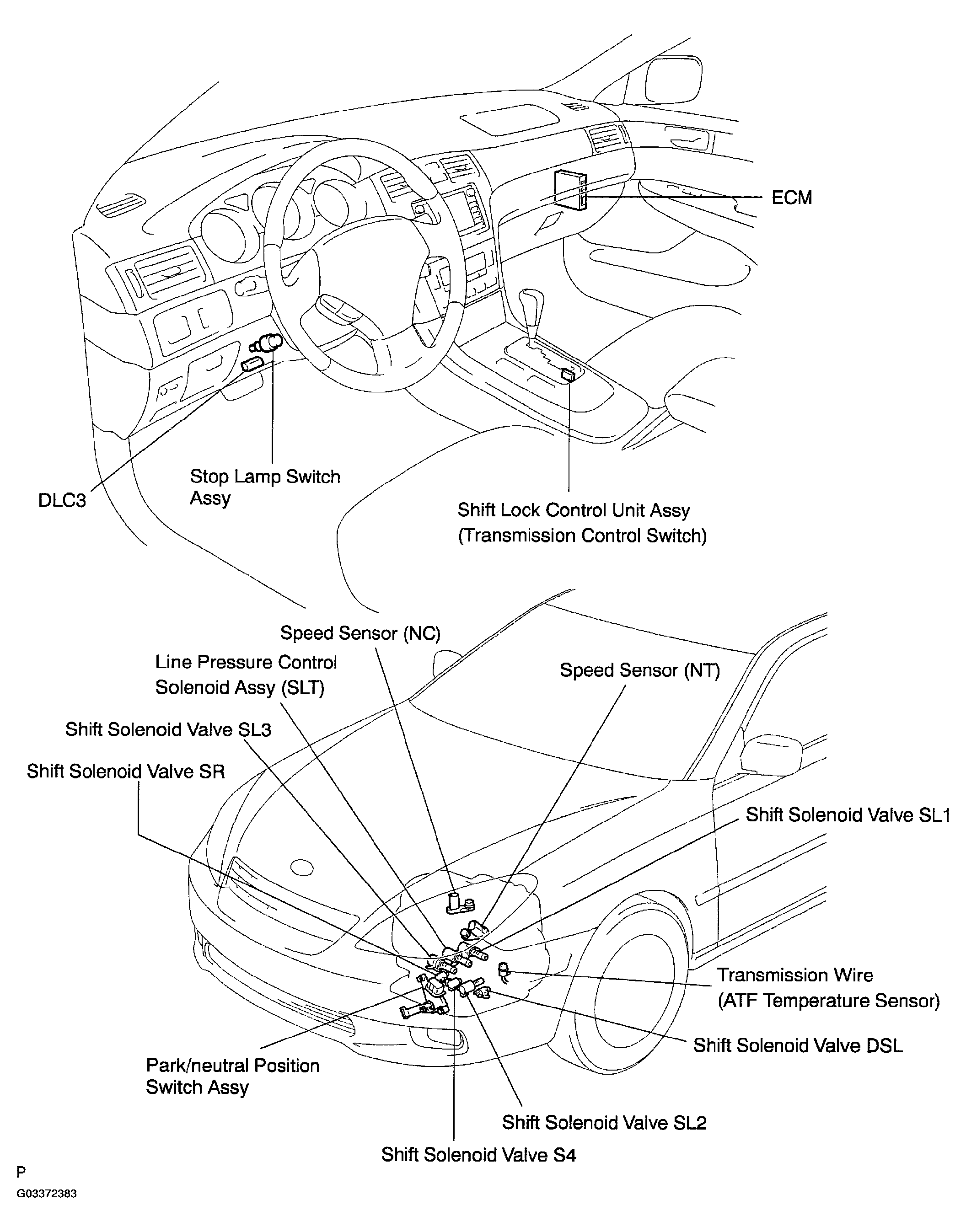

Fig 1: Identifying Electronic Controlled Automatic Transaxle Electrical Components Location

G03372383

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
