Seat Armrest: Removal

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a small flat blade, pry cap from side of armrest (Fig 1 ).
  2. Remove bolt attaching armrest to seat back.
  3. Remove armrest from seat back.

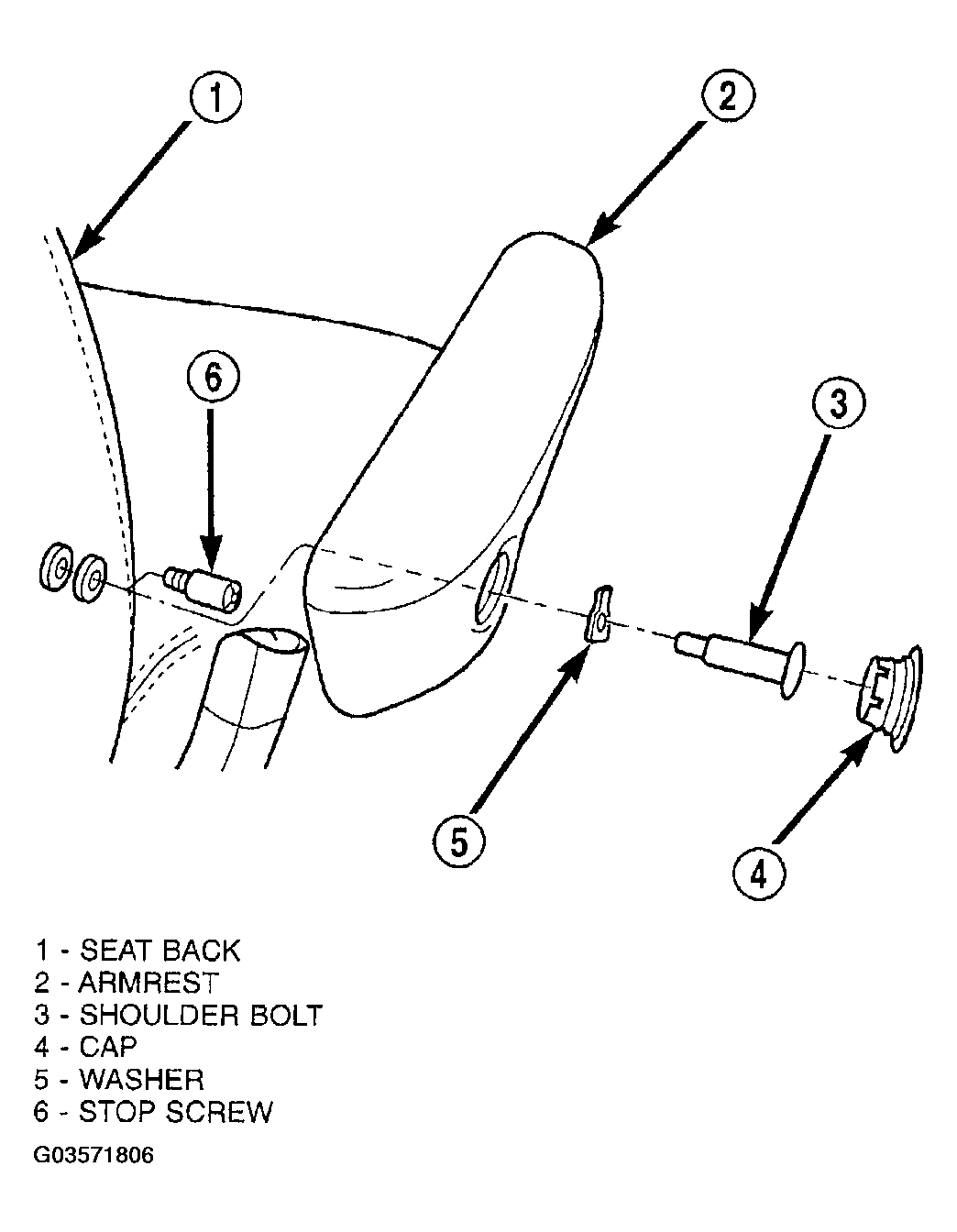

    Fig 1: Removing Armrest
    G03571806Courtesy of DAIMLERCHRYSLER CORP.
