Front Seat Cushion/Cover: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

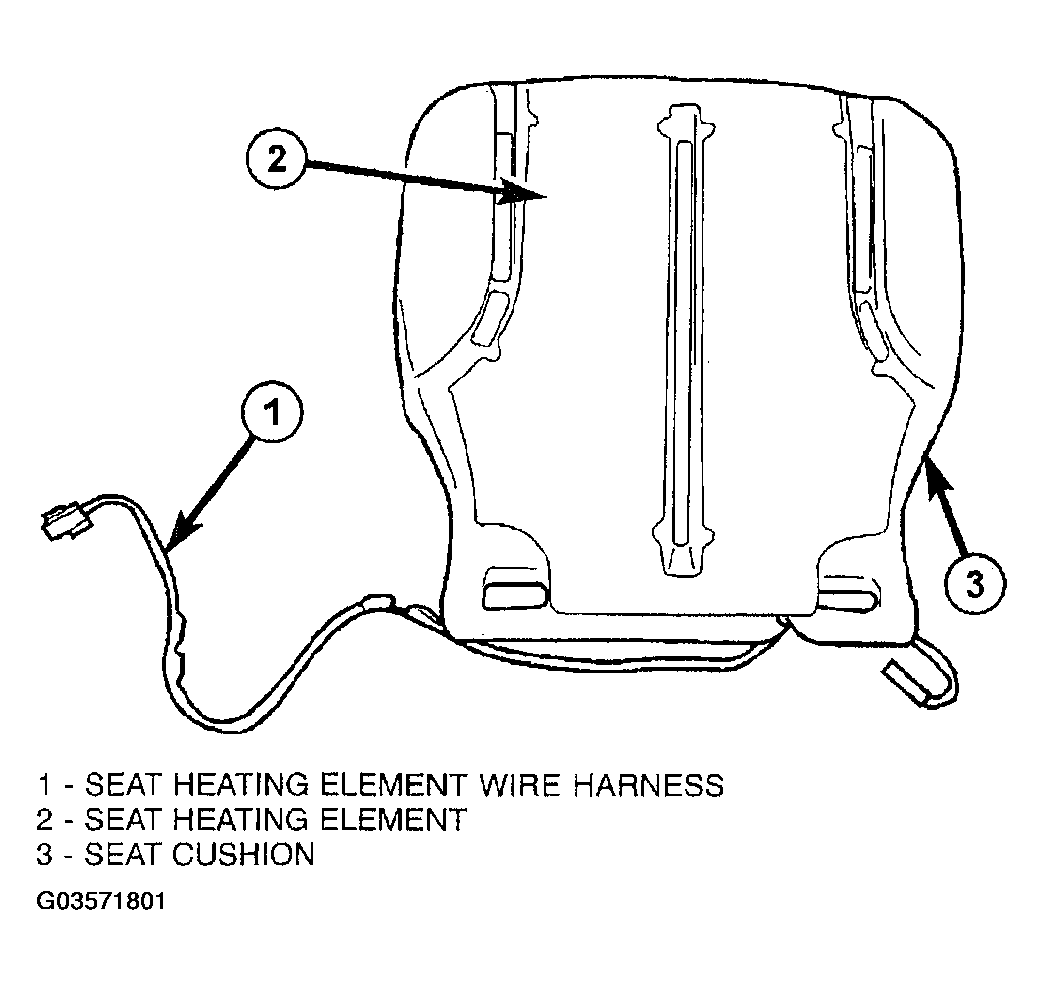

  1. Place seat cushion onto seat pan (Figure ).
  2. Install seat cover onto cushion and seat pan.

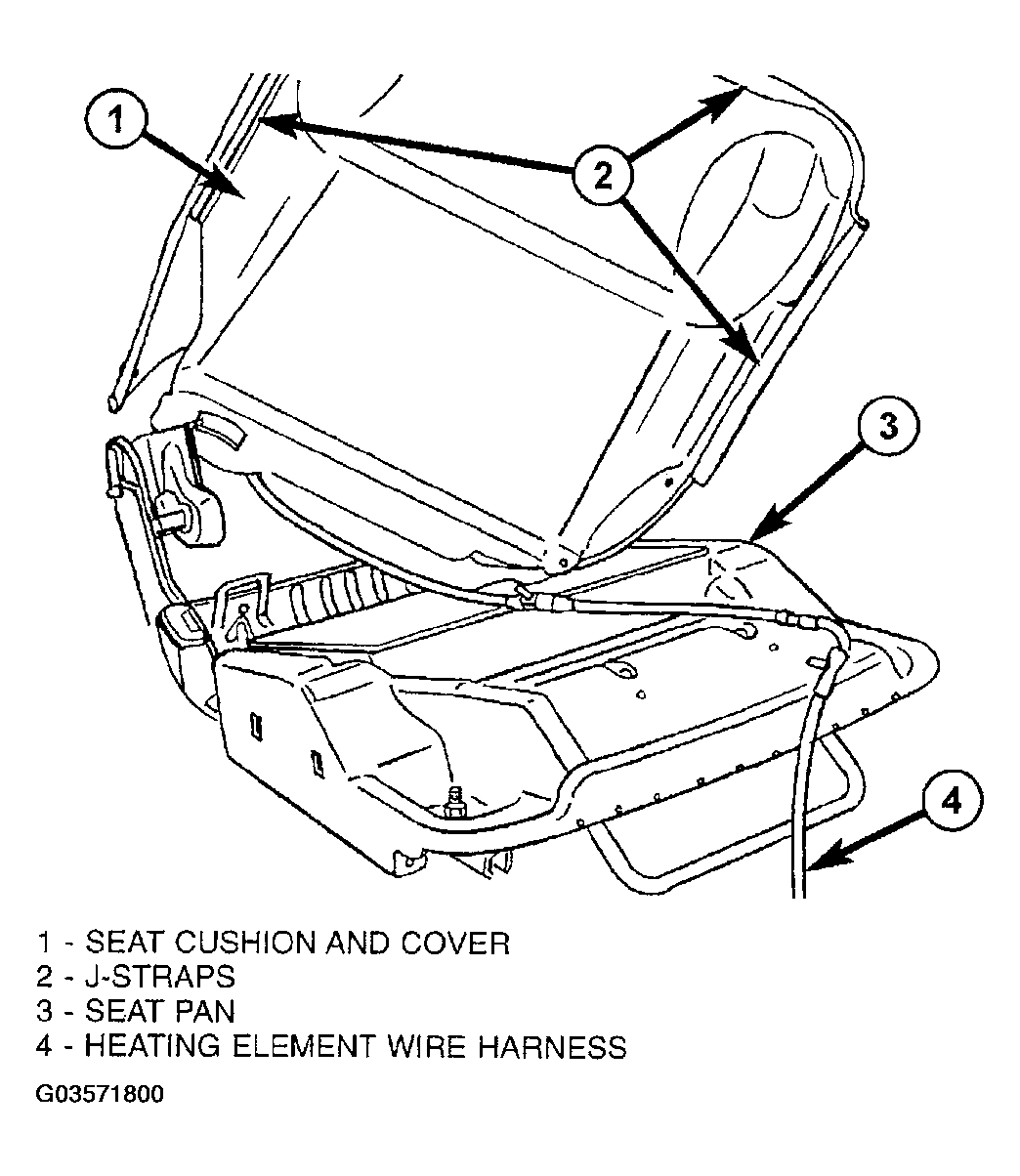

  3. Engage seat cushion cover J-straps and push pins attaching seat pan (Figure ).
  4. Install side shield at buckle.
  5. Install three screws attaching side cushion covers.
  6. Install front seat back to seat assembly. (Refer to INSTALLATION  ).
  7. Engage seat back cover J-straps to seat back.
  8. Install front seat back panel to front seat assembly. (Refer to INSTALLATION  )
  9. Install front seat. (Refer to INSTALLATION  ).
  10. Install front seat headrest. (Refer to INSTALLATION  ).
