Sun Visor: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles with driver and passenger side air bags must have a colored coded five Bullet point air bag warning label applied to the sun visor, verify label availability and ensure the label is installed.

  1. Place sun visor in position on vehicle.
  2. Connect illuminated vanity mirror wire connector into body harness, if equipped.
  3. Place sun visor in position on roof.

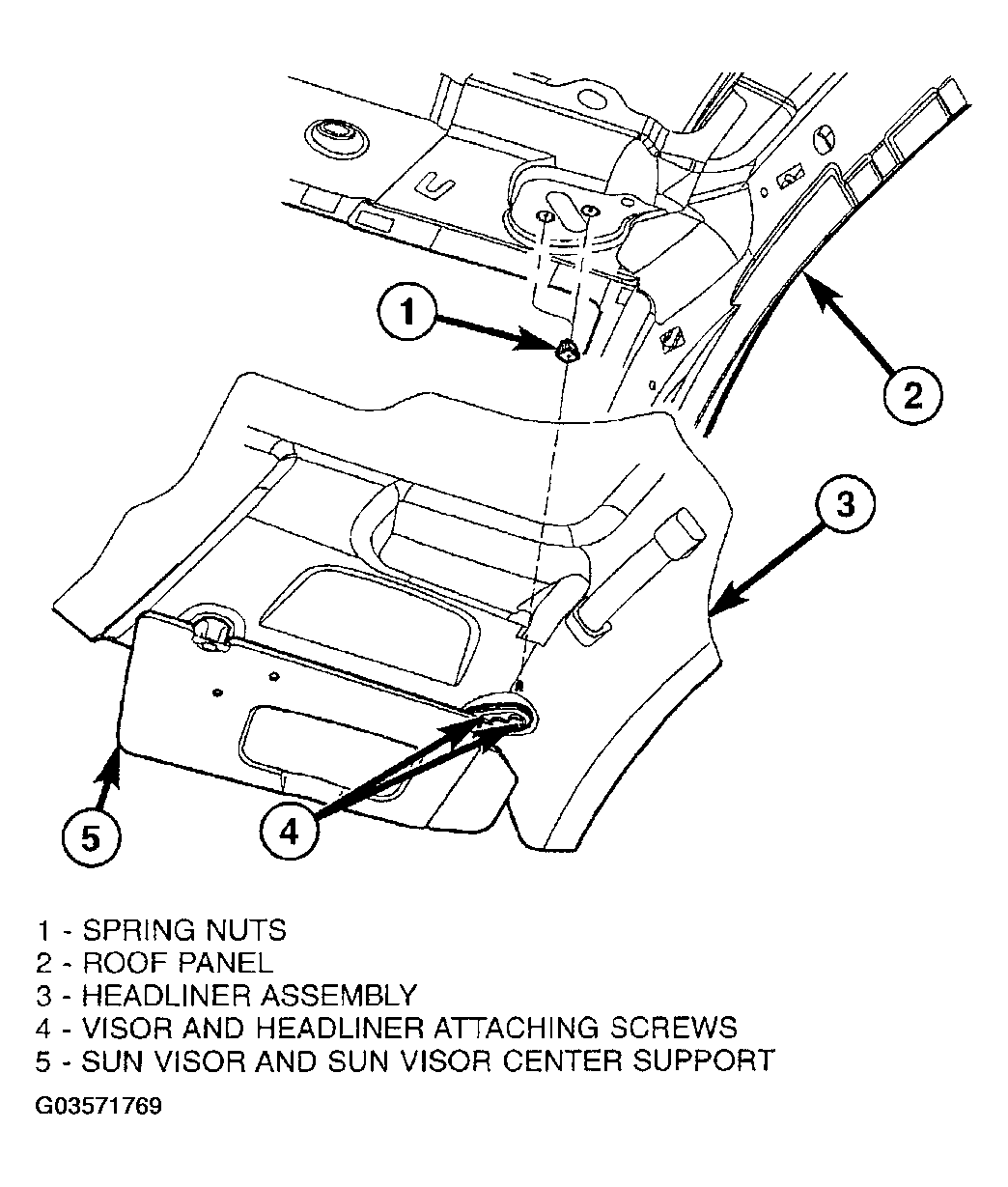

  4. Install attaching screws sun visor to roof header (Figure).
  5. Engage sun visor into center support.
