Section 451 (Body - Interior): Headliner: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. If installing DVD video screen bracket (Fig 3).
    1. Install u-nuts into roof bows.
    2. Place bracket into position.
    3. Install attaching screws and washers and push pins.
  2. Place headlining into vehicle through liftgate. opening.
  3. Raise headlining into position.
  4. Engage push in fasteners attaching headlining to roof panel (Fig 1) and (Fig 2).
  5. Disconnect rear view mirror wire connector from mirror.

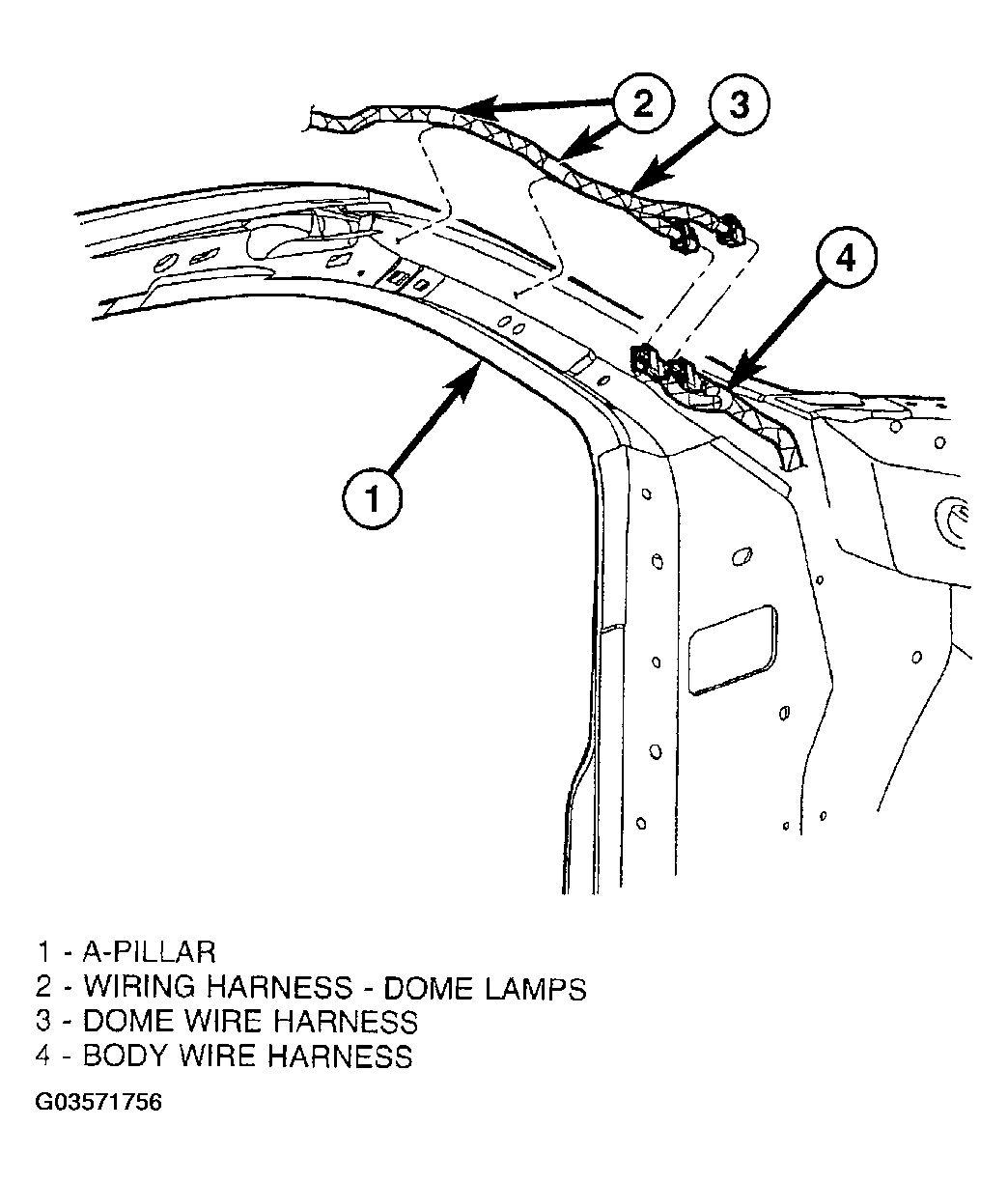

  6. Connect wire harness connector and wire clips at the right A-pillar (Figure).

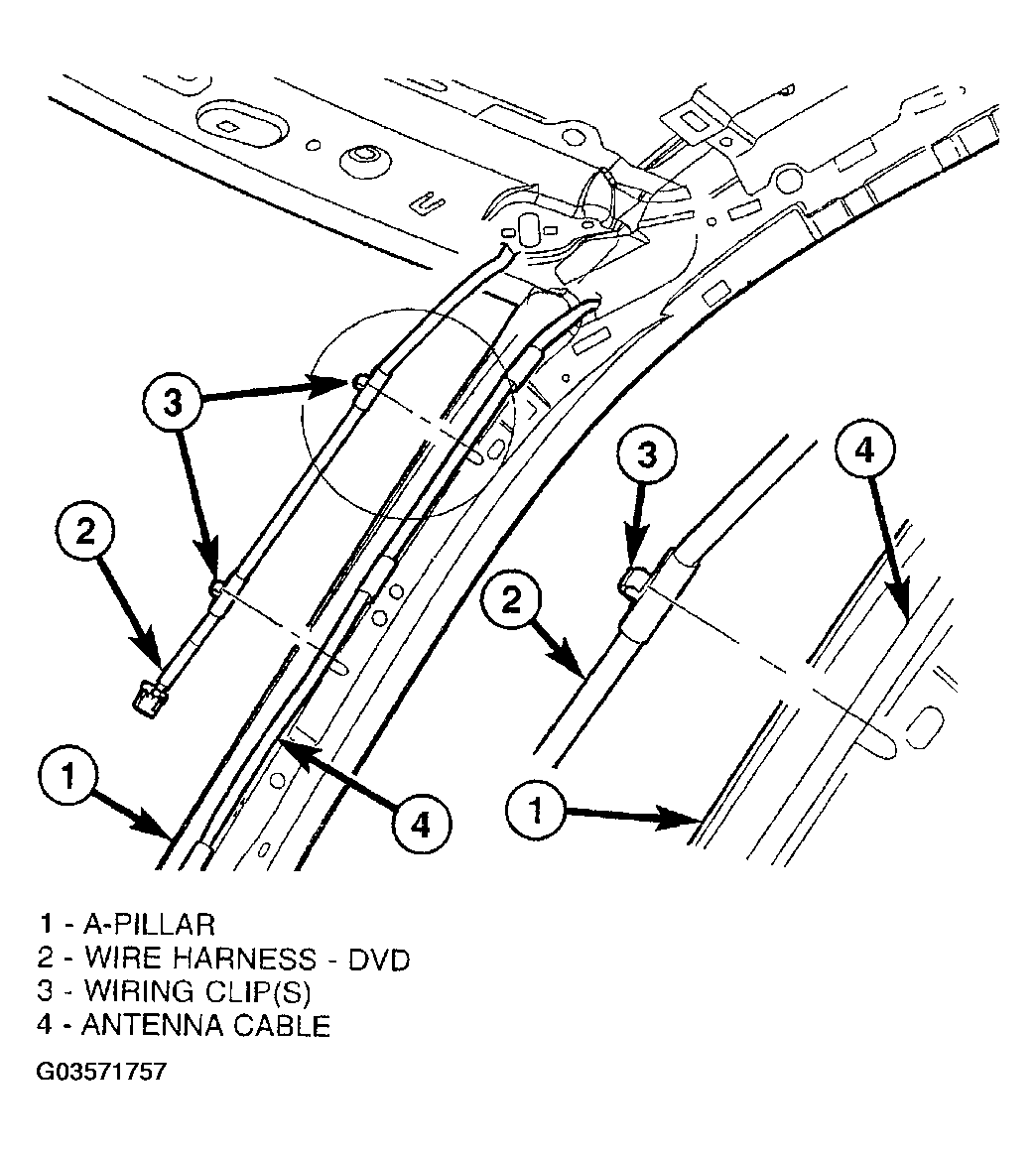

  7. Connect wire harness connectors at the left A-pillar (Figure).
  8. Install overhead DVD video screen, if equipped. (Refer to VIDEO SCREEN ).

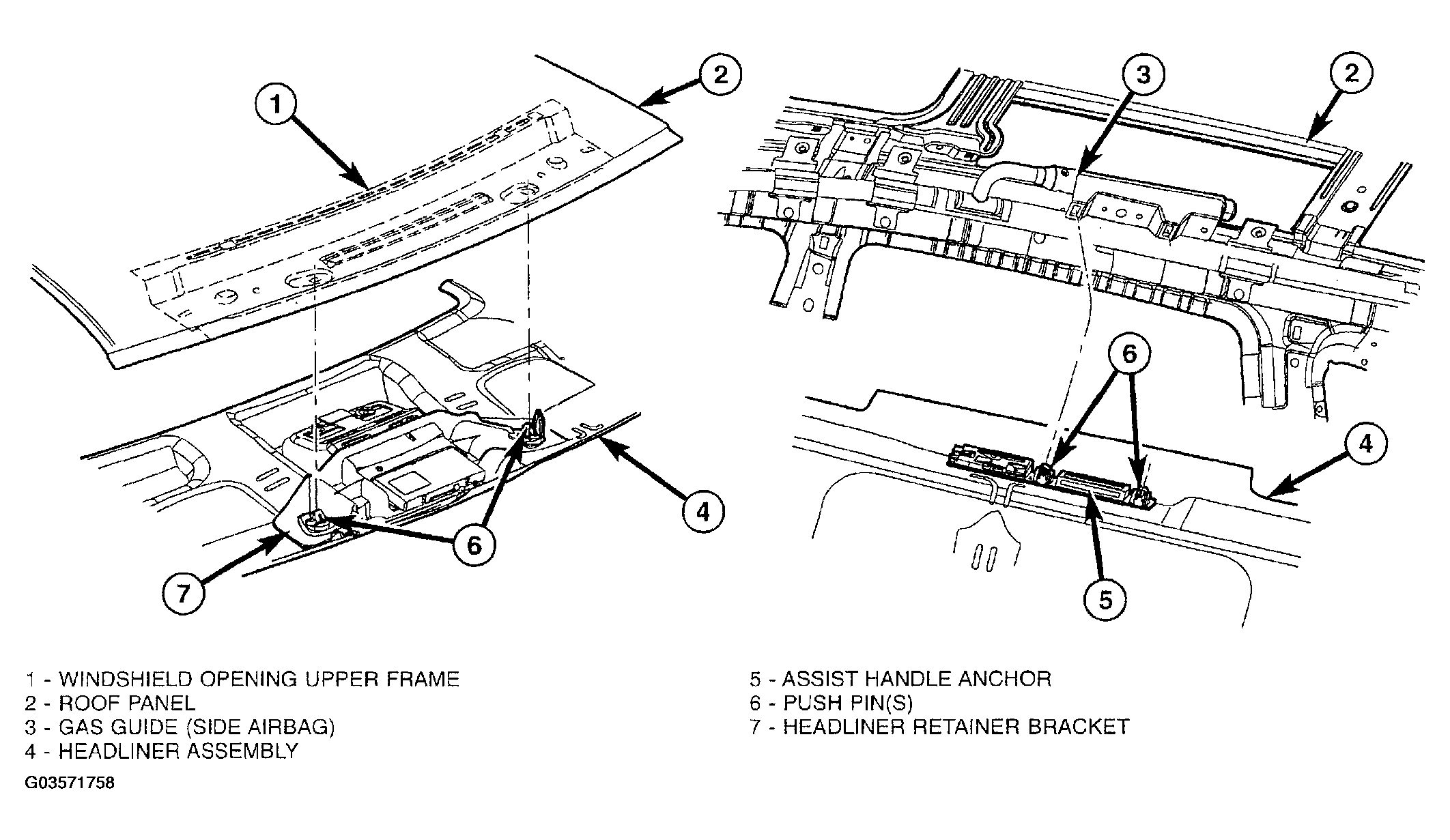

    Fig 1: Removing Headliner Retainer Bracket
    G03571758Courtesy of DAIMLERCHRYSLER CORP.

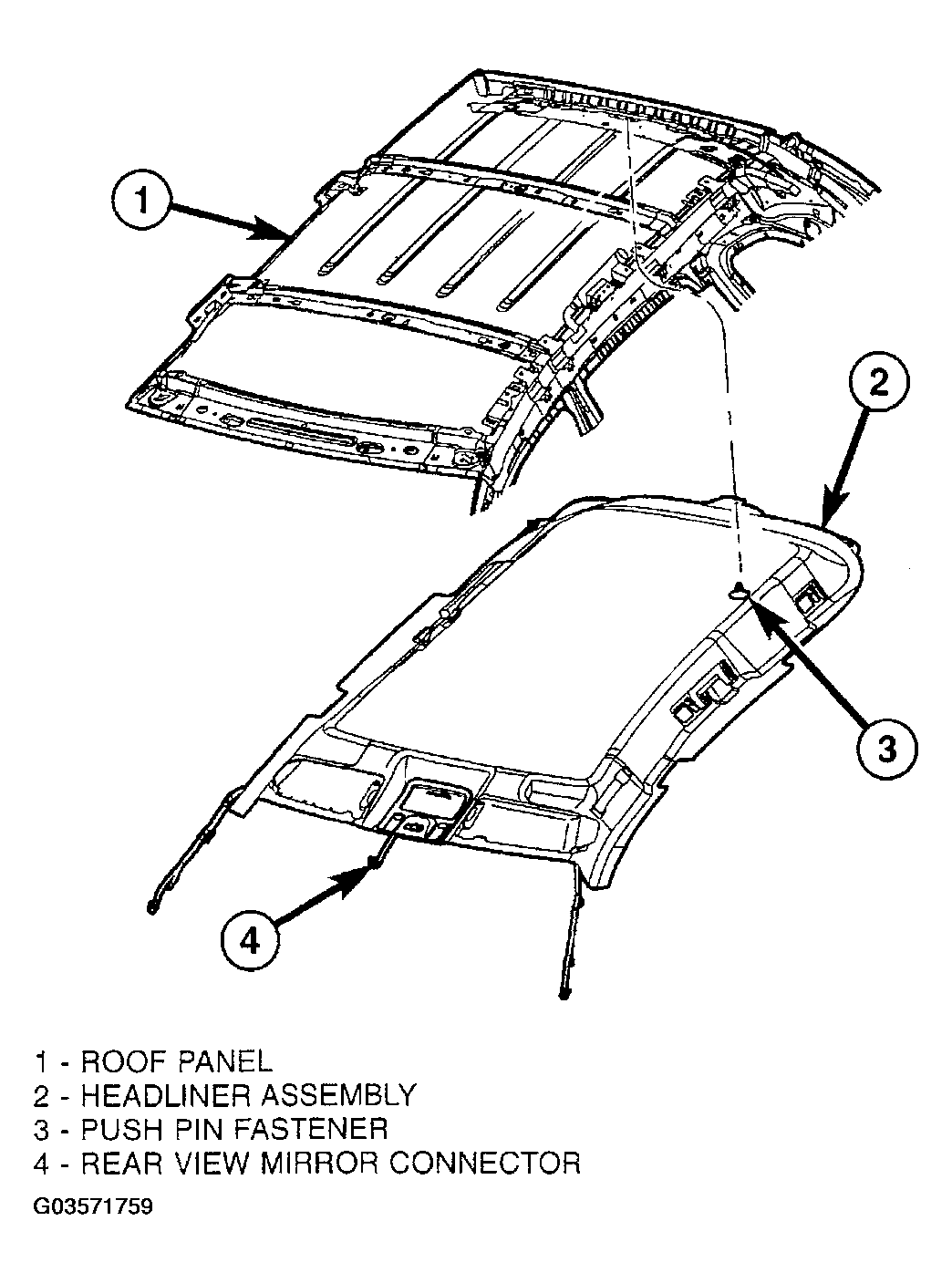

    Fig 2: Removing Headliner Assembly
    G03571759Courtesy of DAIMLERCHRYSLER CORP.
  9. Install overhead console, if equipped. (Refer to OVERHEAD CONSOLE ).
  10. Install C-pillar upper trim. (Refer to REMOVAL )
  11. Install D-pillar trim. (Refer to INSTALLATION ).
  12. Install liftgate header trim. (Refer to INSTALLATION ).
  13. Install B-pillar upper trim. (Refer to INSTALLATION ).
  14. Install A-pillar trim. (Refer to INSTALLATION ).
  15. Install second row dome lamp and coat hook attaching screws, if equipped.
  16. Install assist handles attaching screws, if equipped.
  17. Install sun visor center supports.
  18. Install sun visors and vanity mirrors.
  19. Connect negative battery cable.

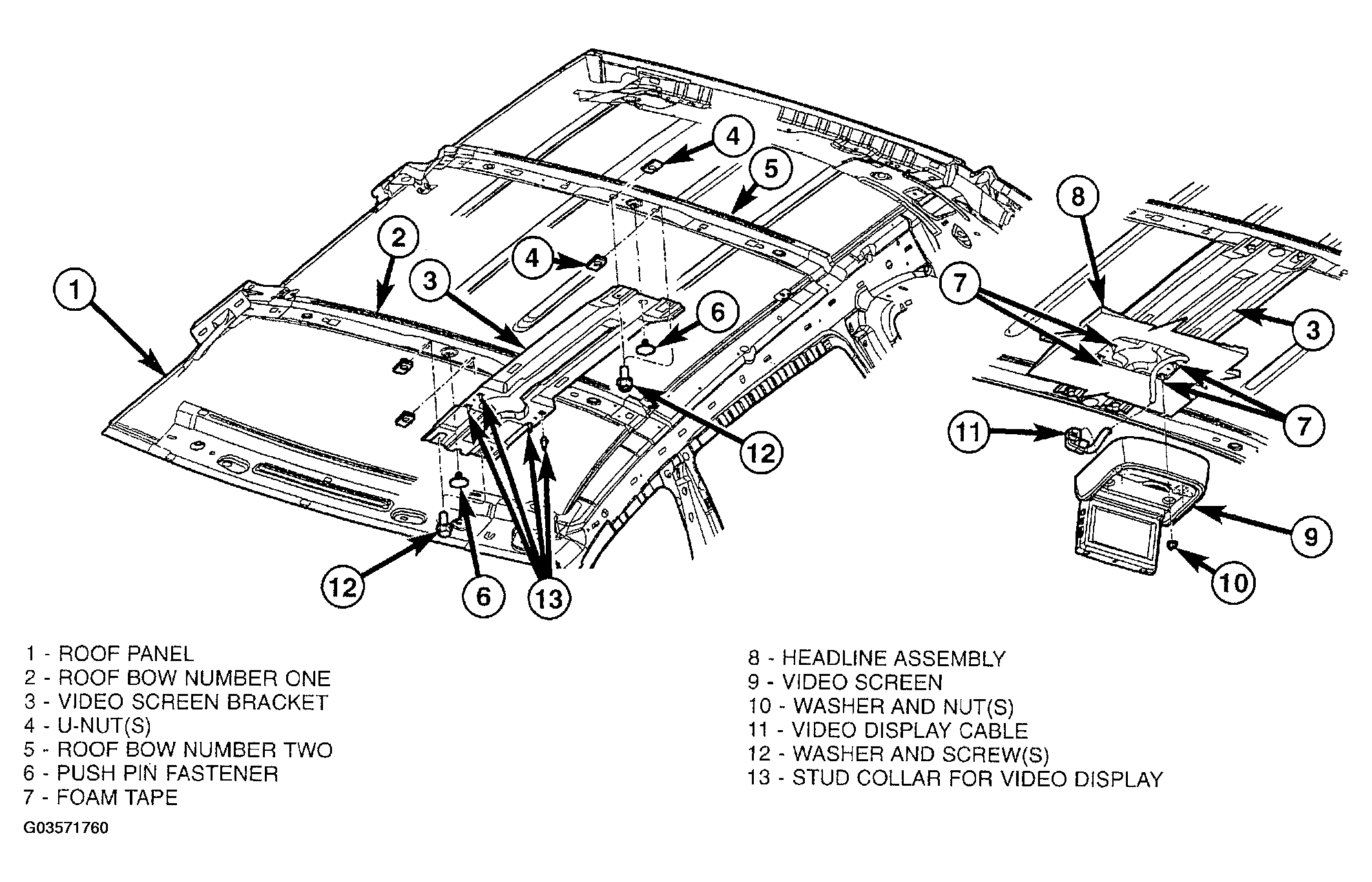

Fig 3: Removing Video Screen Mounting Bracket
G03571760Courtesy of DAIMLERCHRYSLER CORP.
