Power Sunroof Module - Black 12 Way Connector End View

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

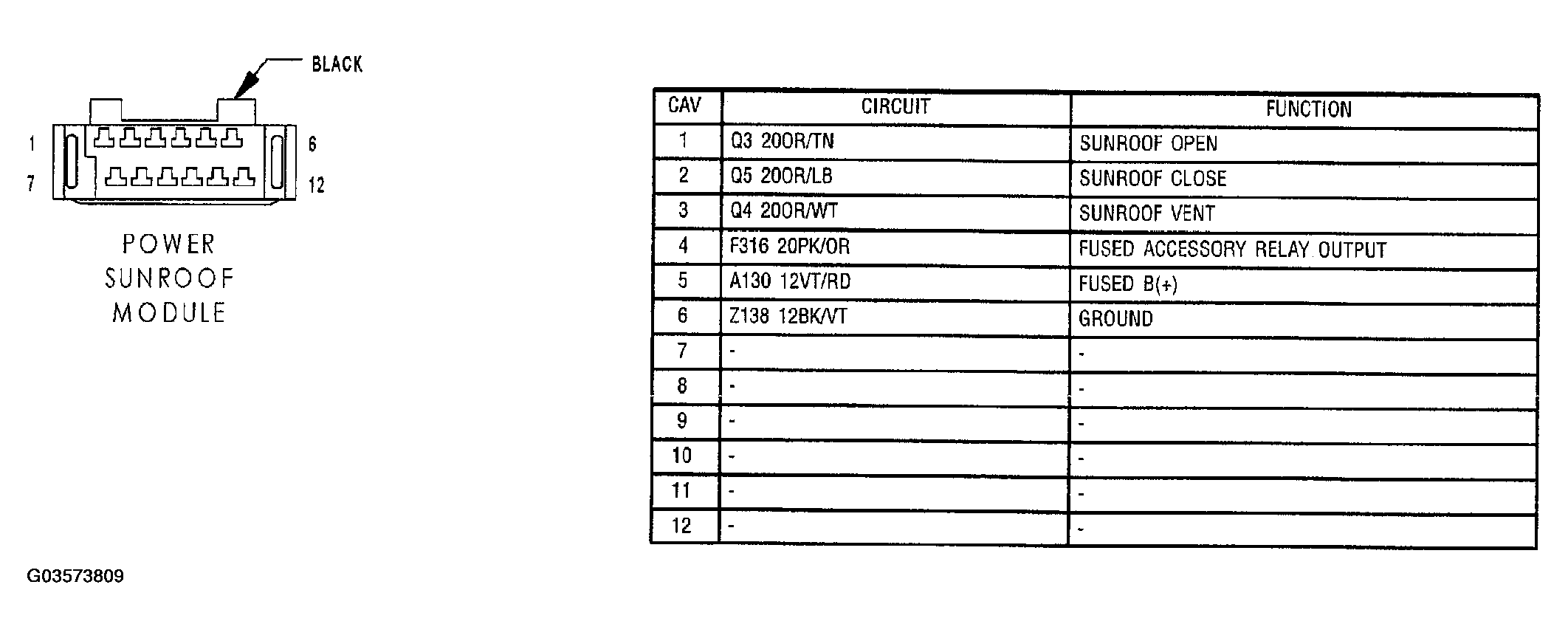

Fig 1: Power Sunroof Module Connector End View
G03573809Courtesy of DAIMLERCHRYSLER CORP.
