Battery Tray: Removal

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the battery from the vehicle. Refer to REMOVAL - BATTERY  .
  3. Remove the battery tray retaining fasteners (Fig 1 ).

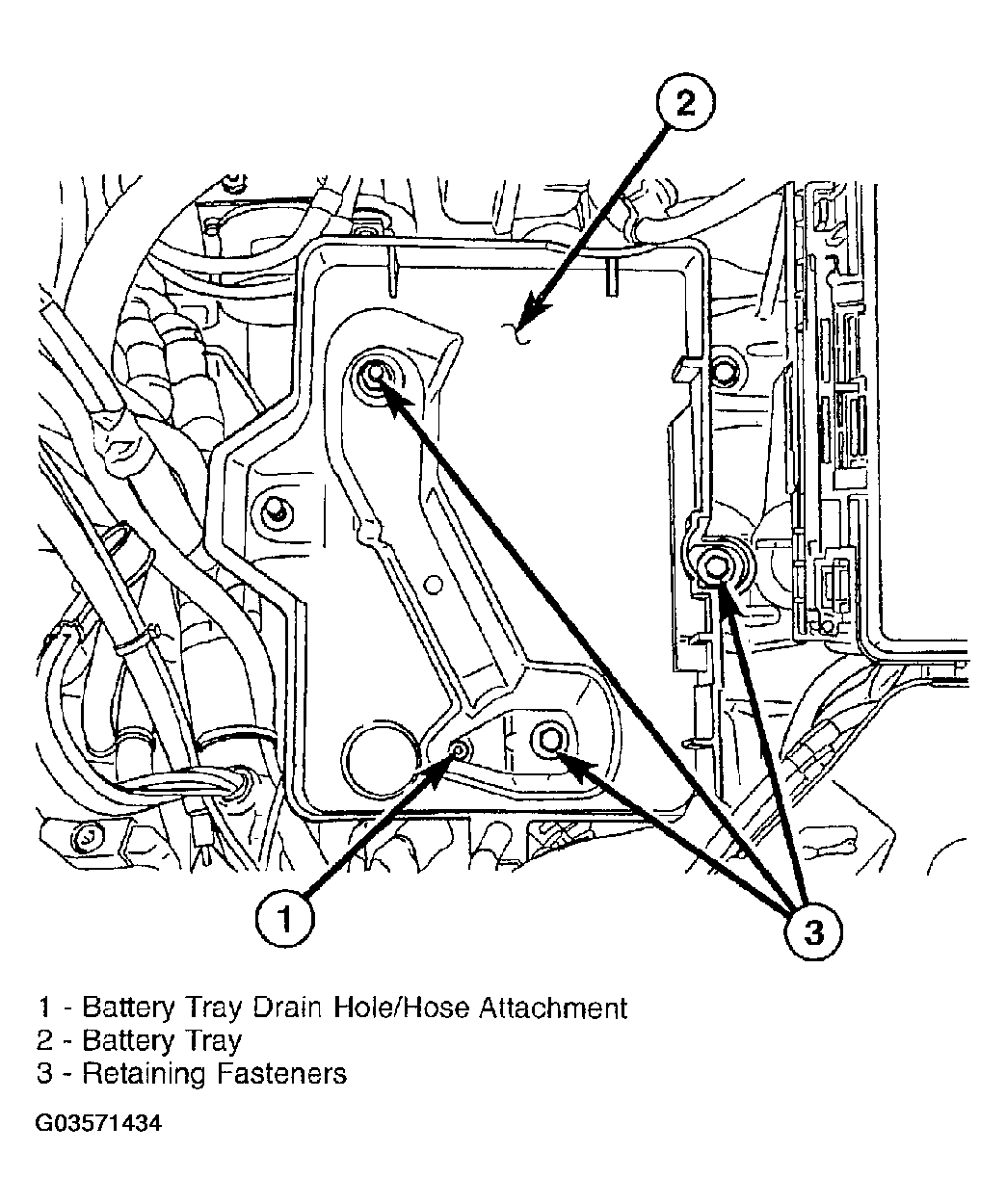

    Fig 1: Removing Battery Tray From Vehicle
    G03571434Courtesy of DAIMLERCHRYSLER CORP.
  4. Pull battery tray up far enough to disconnect the drain hose assembly.
  5. Remove the battery tray from the vehicle.
