Roof Headlining ASSY: Components

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Exploded View Of Roof Headlining Assy
G03553592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

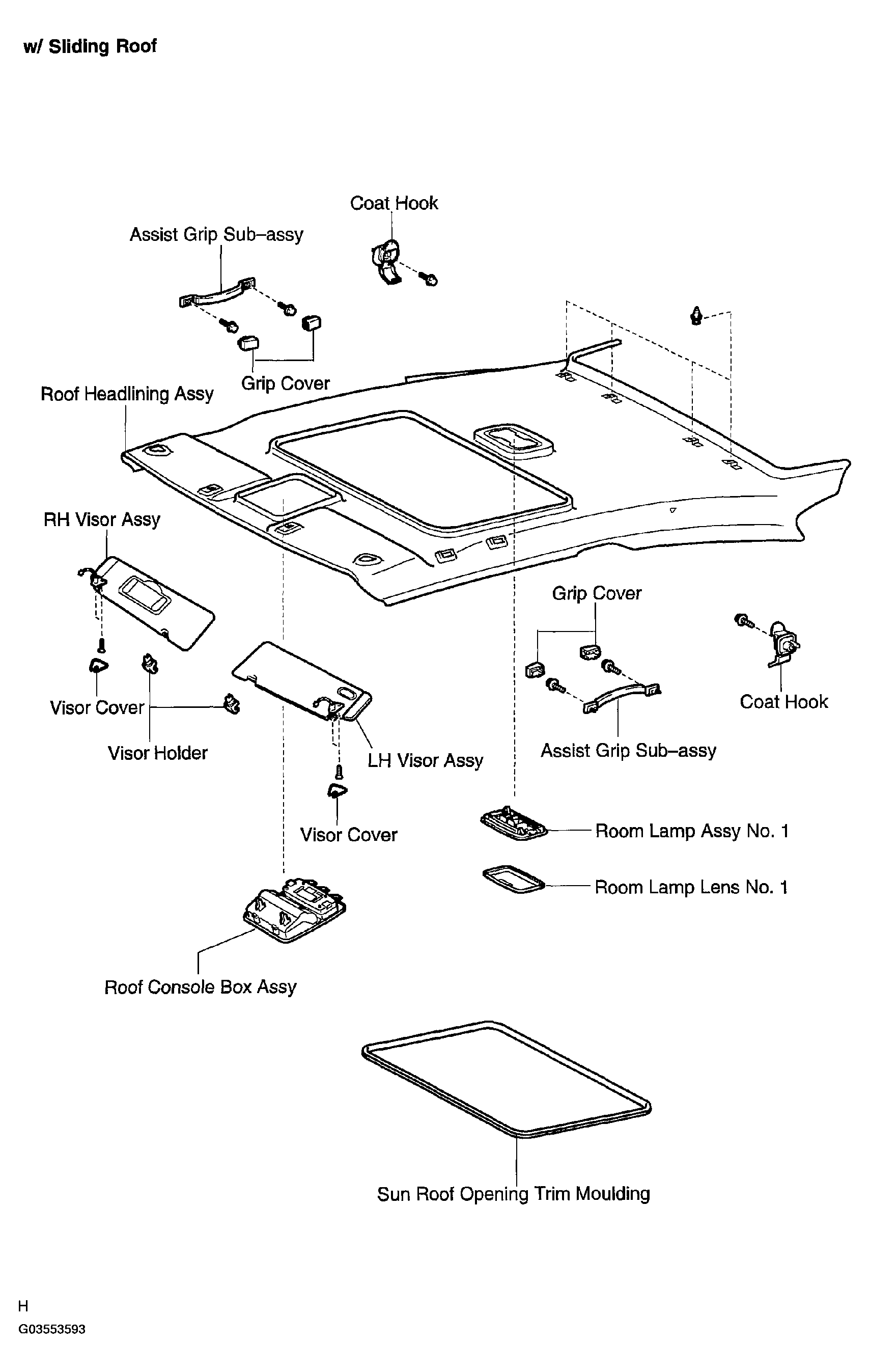

Fig 2: Exploded View Of Roof Headlining Assy (W/ Sliding Roof)
G03553593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

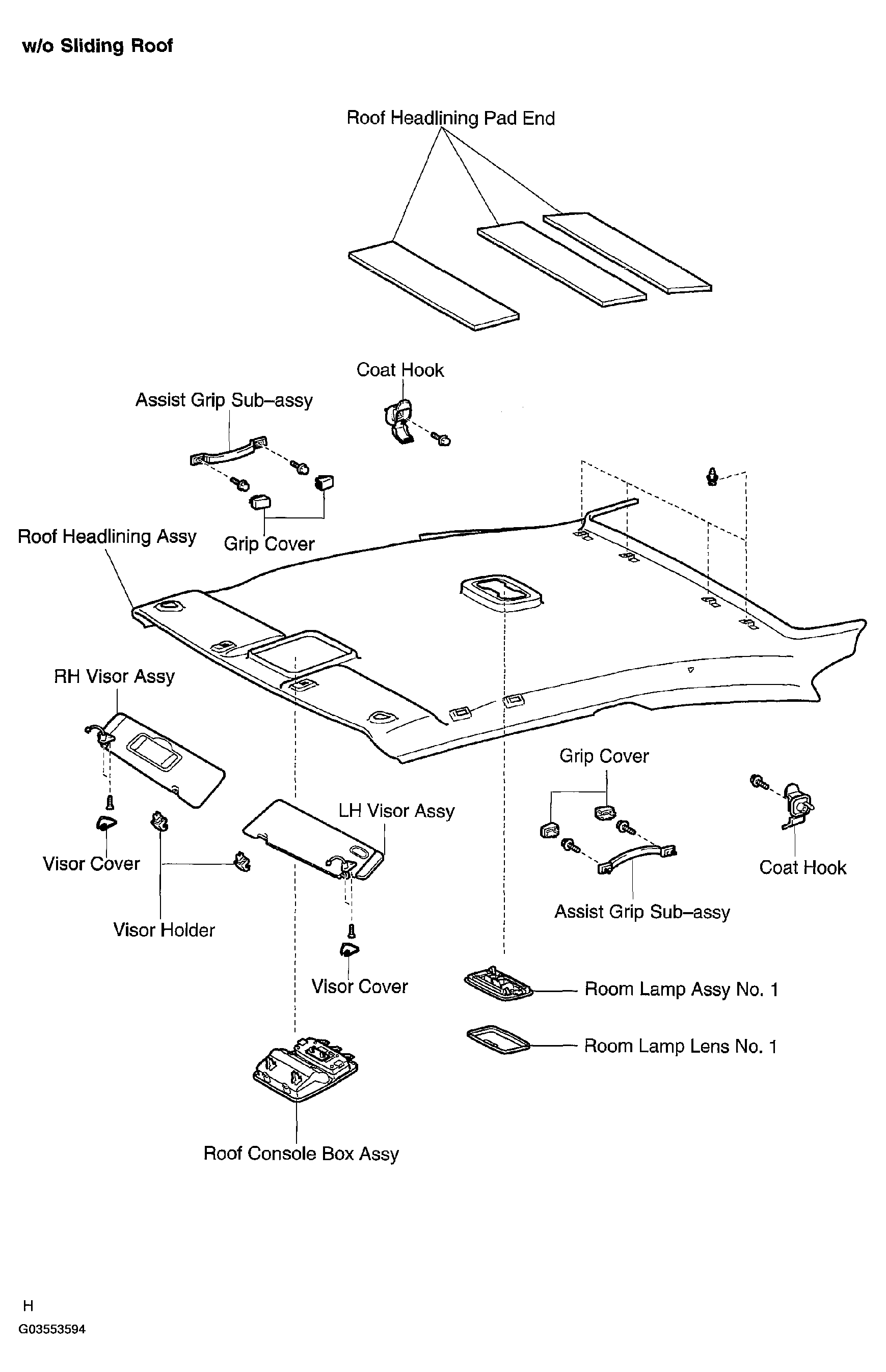

Fig 3: Exploded View Of Roof Headlining Assy (W/O Sliding Roof)
G03553594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
