Rocker Panel Moulding LH: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

REMOVE ROCKER PANEL MOULDING LH
1. Jack up the vehicle and mount the vehicle onto stands.

  Fig 1: Jacking Up Vehicle & Mounting Vehicle Onto Stands
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the front wheel and rear wheel.

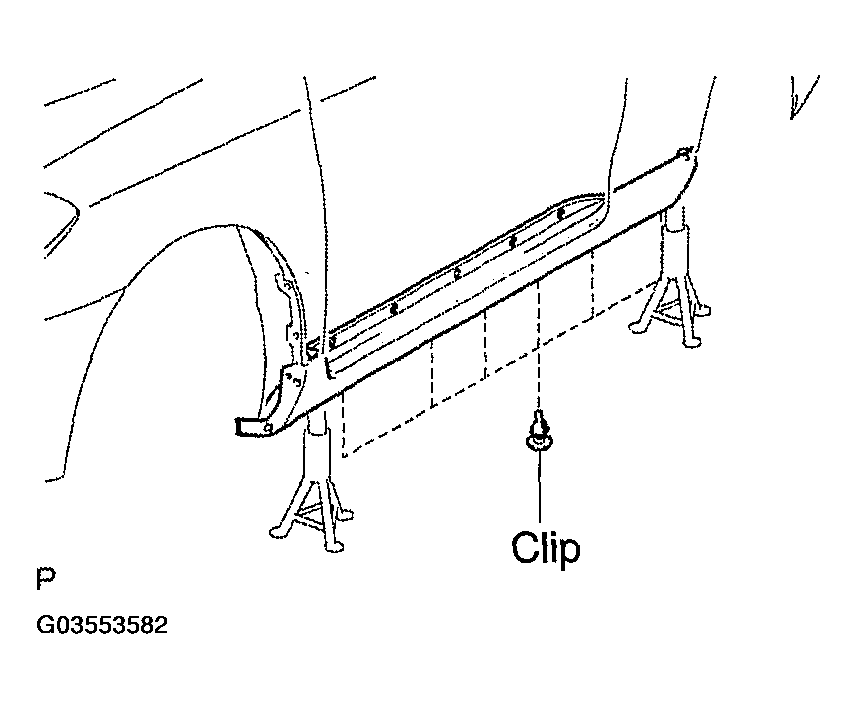

3. Remove the 6 clips.

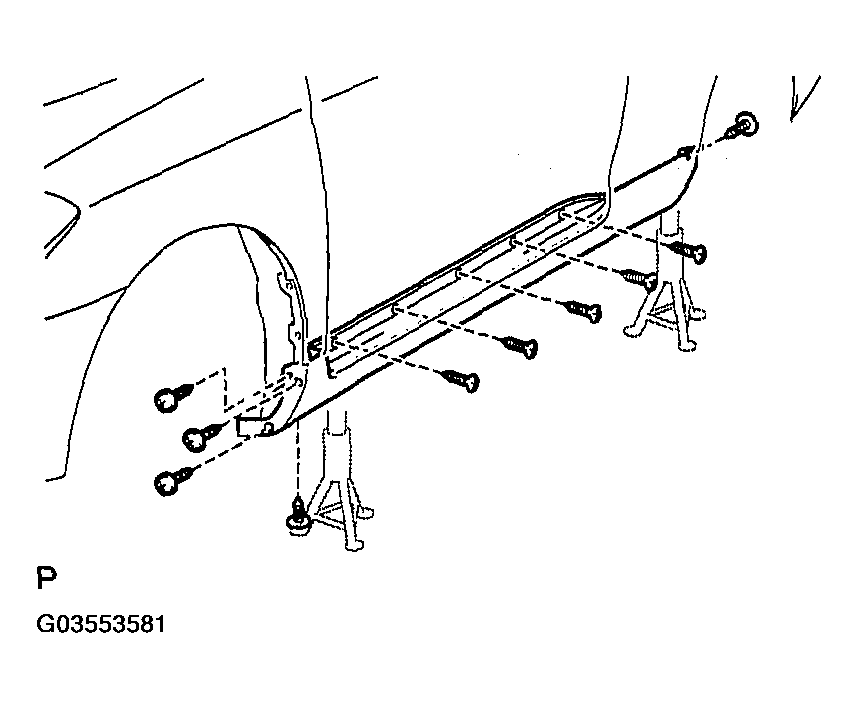

4. Remove the 10 screws.

  Fig 2: Removing Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

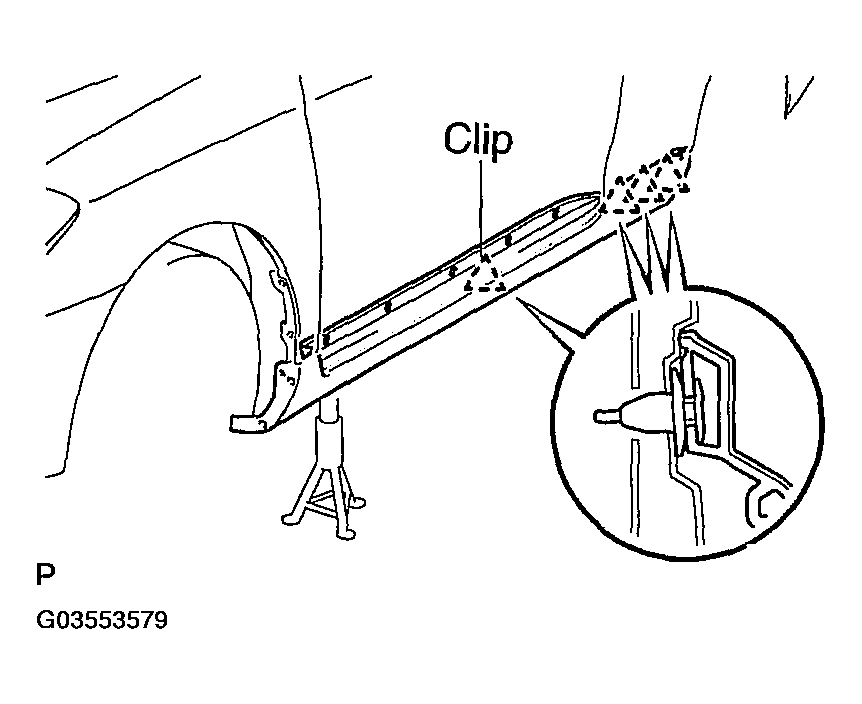

5. Disengage the 4 clips and remove the moulding.

  Fig 3: Removing Moulding
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROCKER PANEL MOULDING LH
NOTE: If the clips are damaged, replace them.

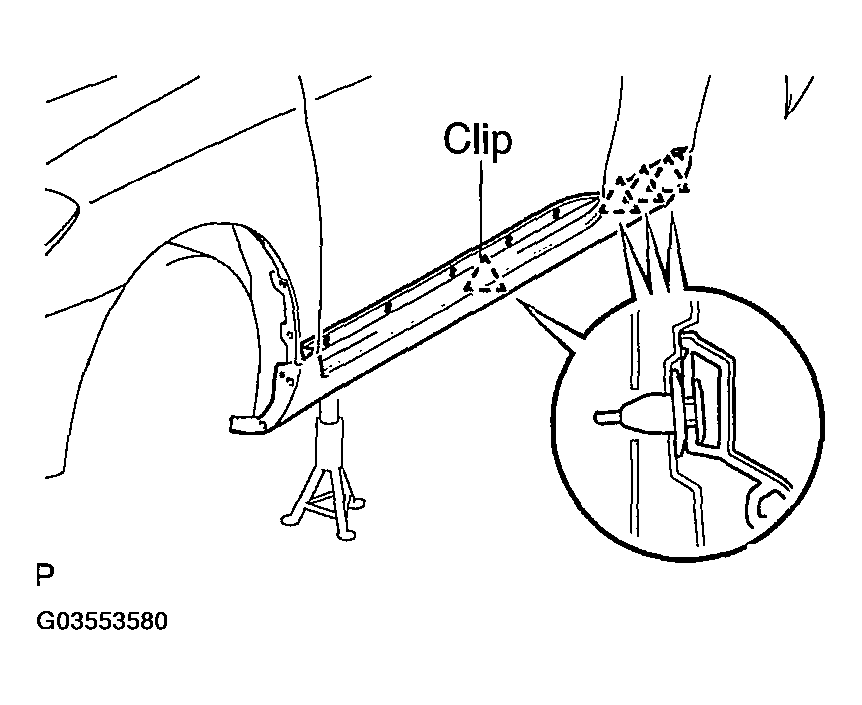

1. Install the moulding with the 4 clips.

  Fig 4: Installing Moulding Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 10 screws.

  Fig 5: Installing Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 6 clips.
  NOTE: If the clips are damaged, replace them.
4. Install the front wheel and rear wheel.
5. Set jacks under the vehicle and remove the stands.

  Fig 6: Setting Jacks Under Vehicle & Removing Stands
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
