Navigation Antenna ASSY: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS
Installation is in the reverse order of removal.

REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/PASSENGER AIR BAG ASSY (SEE REPLACEMENT )
HINT:

Refer to the instructions for removal of the instrument panel safety pad sub-assy w/ passenger air bag assy. (see AIR BAG RESTRAINT SYSTEMS )
REMOVE NAVIGATION ANTENNA ASSY
1. Remove the 2 screws.
2. Remove the clamp and navigation antenna assy.

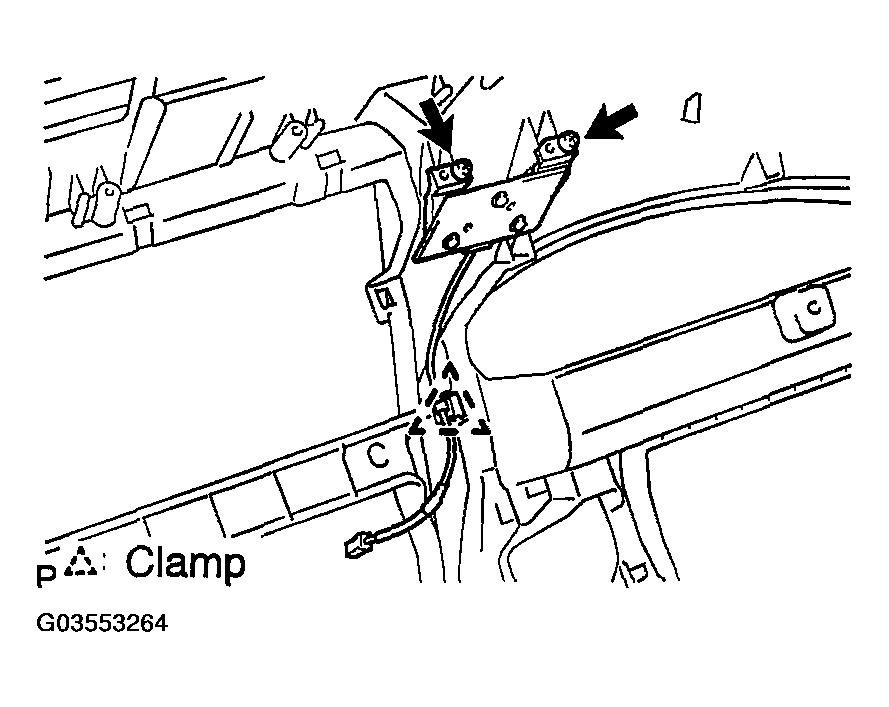

  Fig 1: Removing Navigation Antenna Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/PASSENGER AIR BAG ASSY (SEE REPLACEMENT )
