On-Vehicle Inspection

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

CHECK STEERING WHEEL FREE PLAY
1. Stop the vehicle and align the tires straight ahead.
2. Turn the steering wheel gently right and left, and check the steering wheel free play.
  Maximum Free Play: 30 mm (1.18 in.)

  If the free play exceeds the maximum, replace the steering intermediate shaft sub-assy or steering gear.

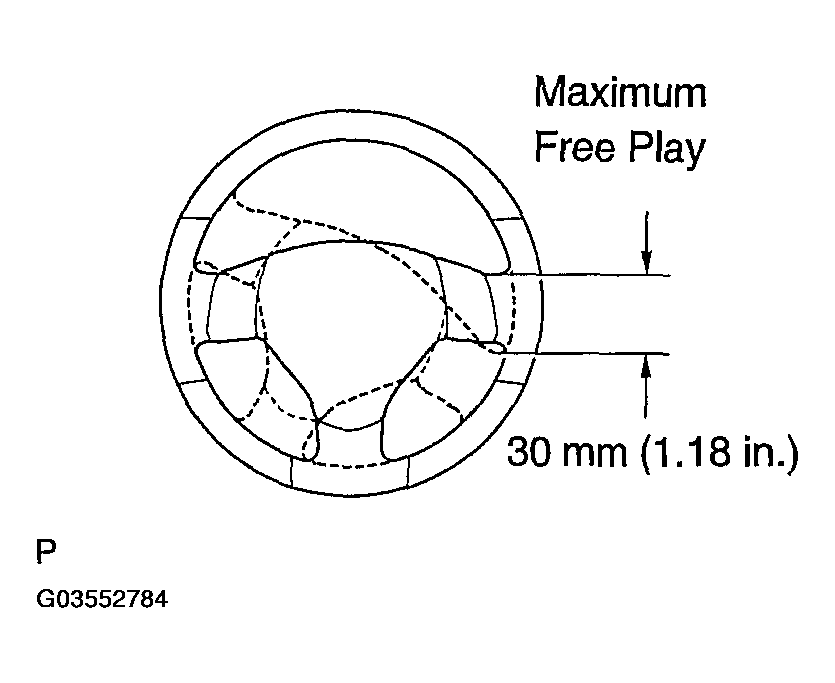

  Fig 1: Checking Steering Wheel Free Play
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
