Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

CHECK HARNESS AND CONNECTOR (COURTESY LAMP SWITCH - INSTRUMENT PANEL JUNCTION BLOCK ASSY)
1. Disconnect the B7 and B8 connectors from the instrument panel junction block assy.
2. Measure the resistance according to the value(s) in Fig 1 .
  Standard:

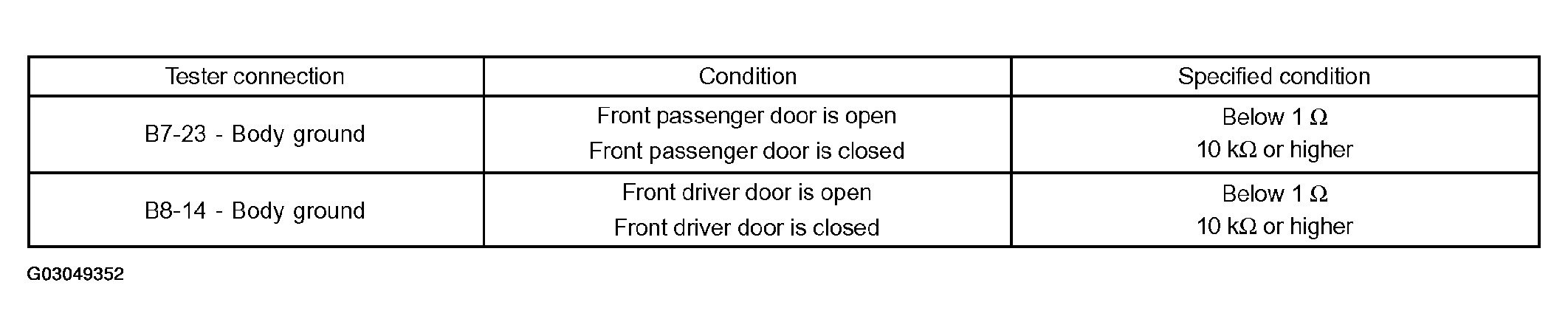

  Fig 1: Measuring Resistance Specifications Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

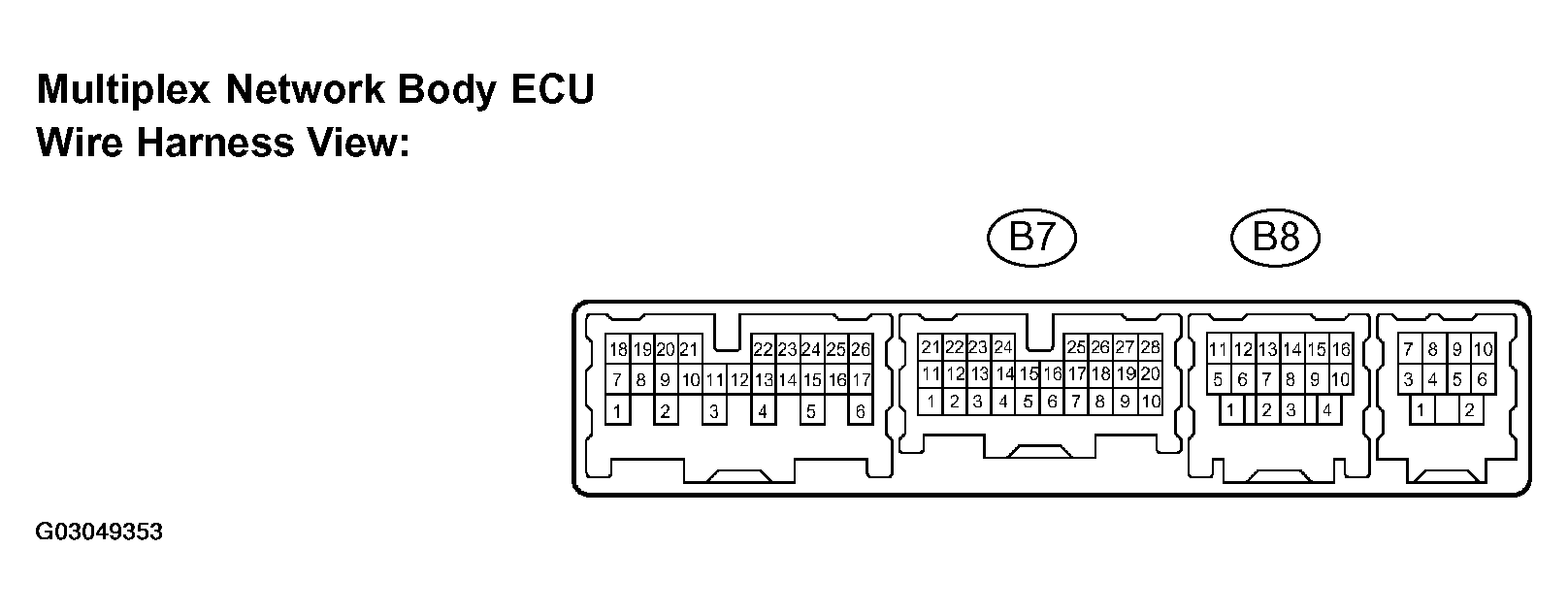

  Fig 2: Identifying B7 & B8 Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: Go to step 2
2. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (SEE PROBLEM SYMPTOMS TABLE )
INSPECT COURTESY LAMP SWITCH
1. Remove the courtesy lamp switch.
2. Measure the resistance according to the value(s) in Fig 3 .
  Standard:

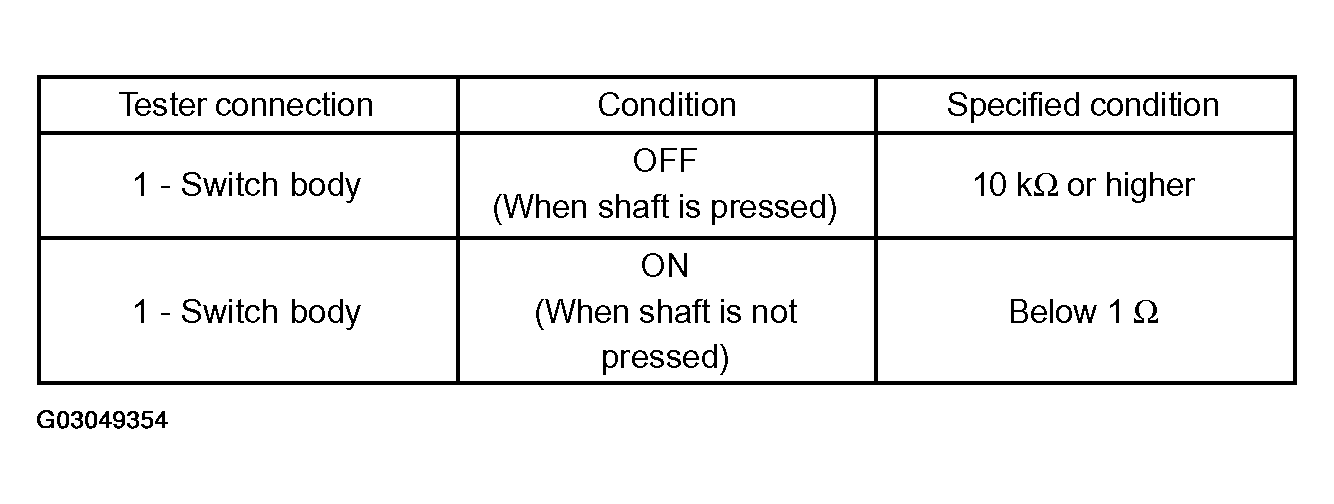

  Fig 3: Measuring Resistance Specifications Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

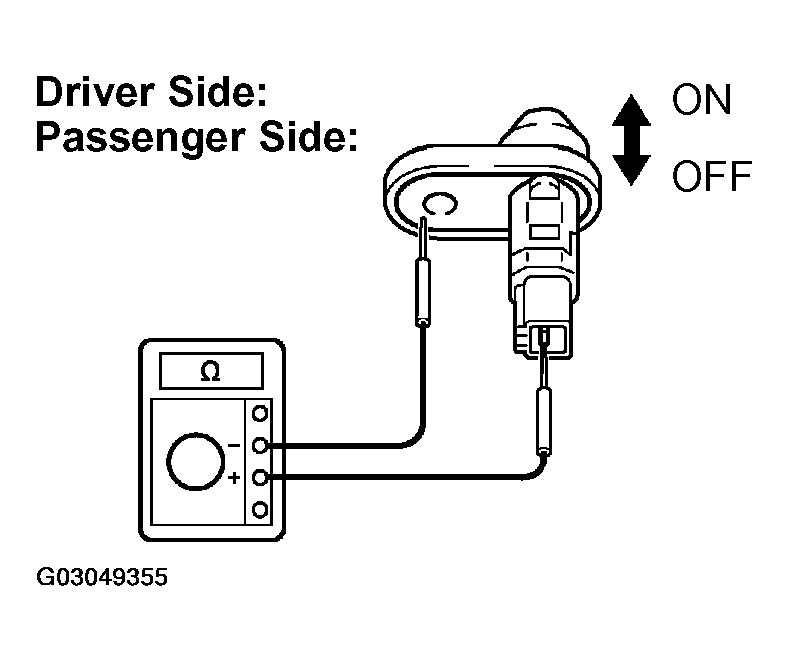

  Fig 4: Inspecting Courtesy Lamp Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPLACE COURTESY LAMP SWITCH
2. OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (EACH OF COURTESY SWITCH CIRCUIT)
