Fail-Safe Table

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
  1. FAIL SAFE OPERATION

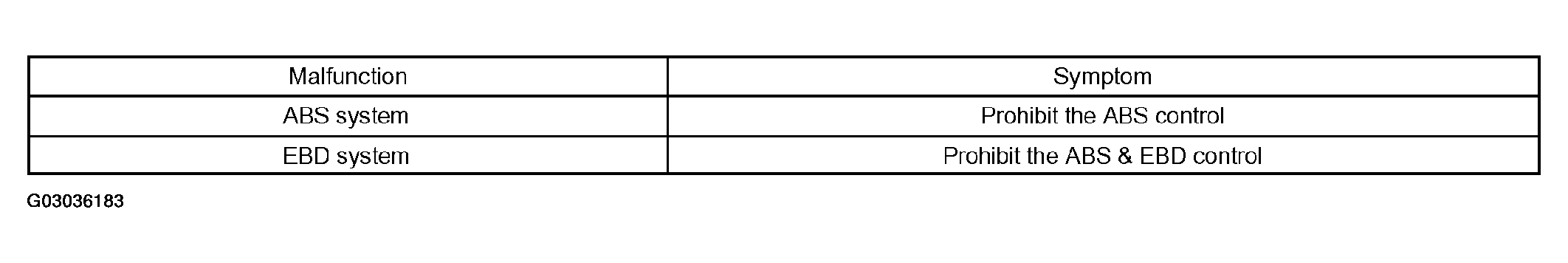

    Fig 1: Identifying Fail Safe Operation Table
    G03036183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    If the ABS system encounters a malfunction, the brake system will operate normally without ABS control.
